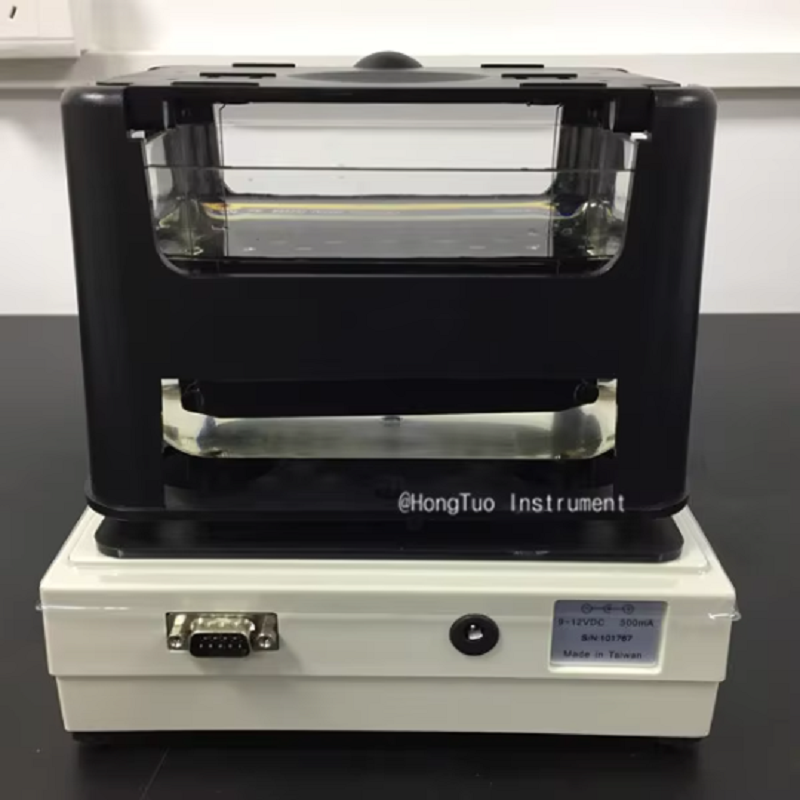

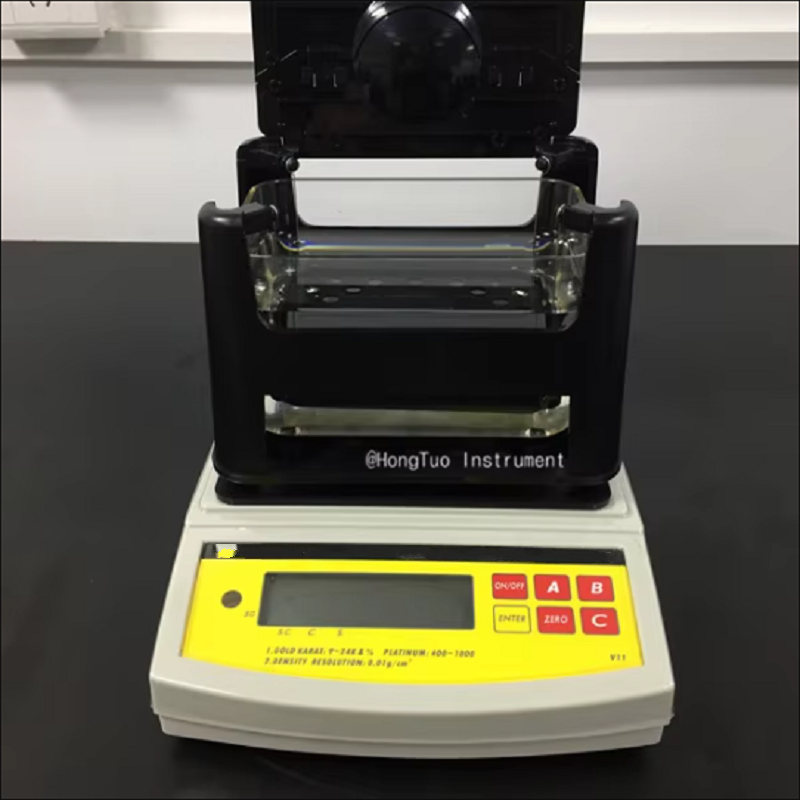

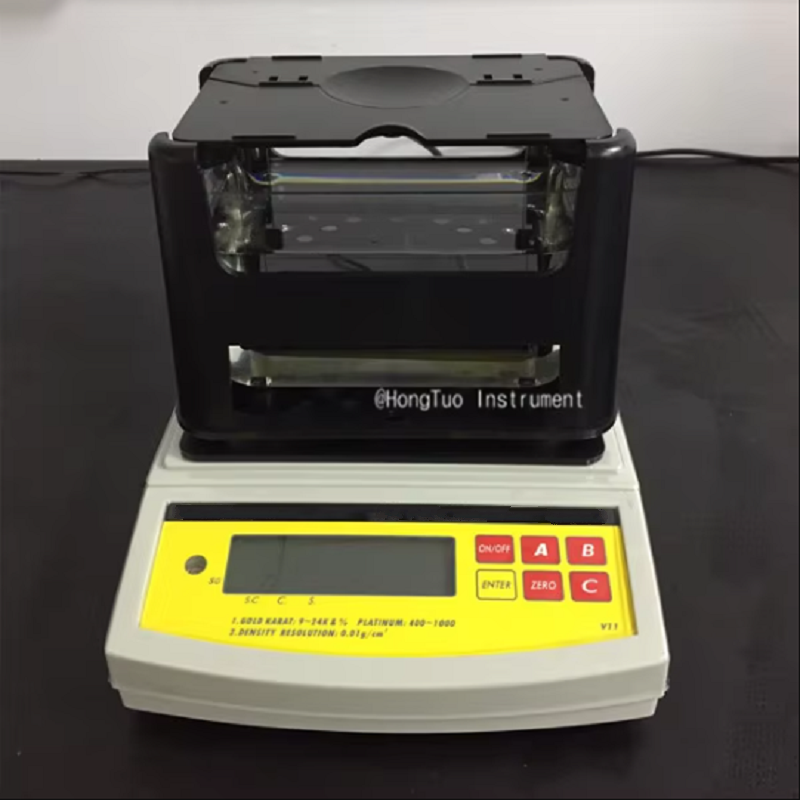

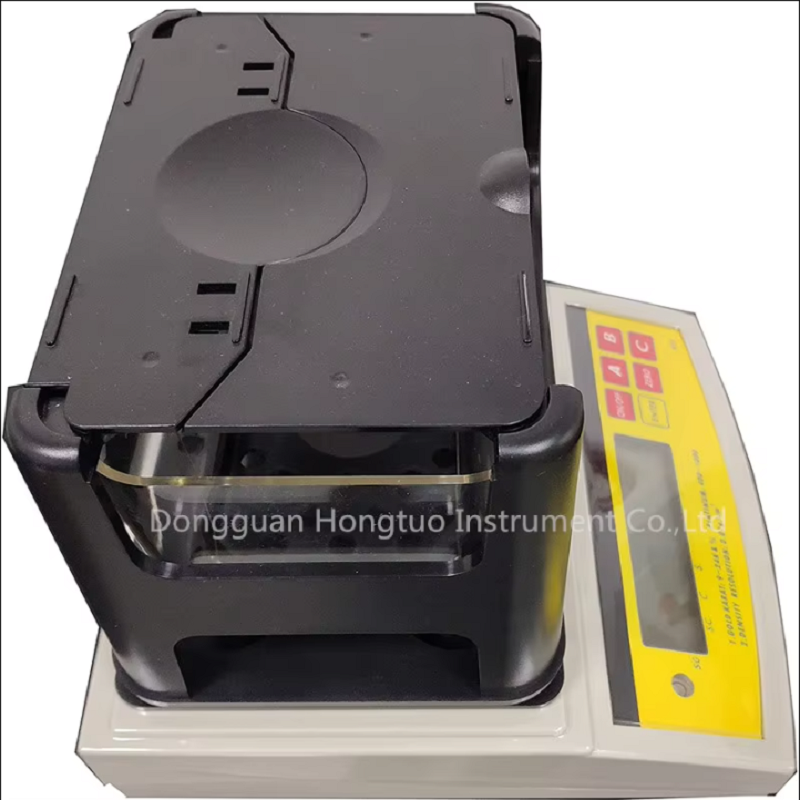

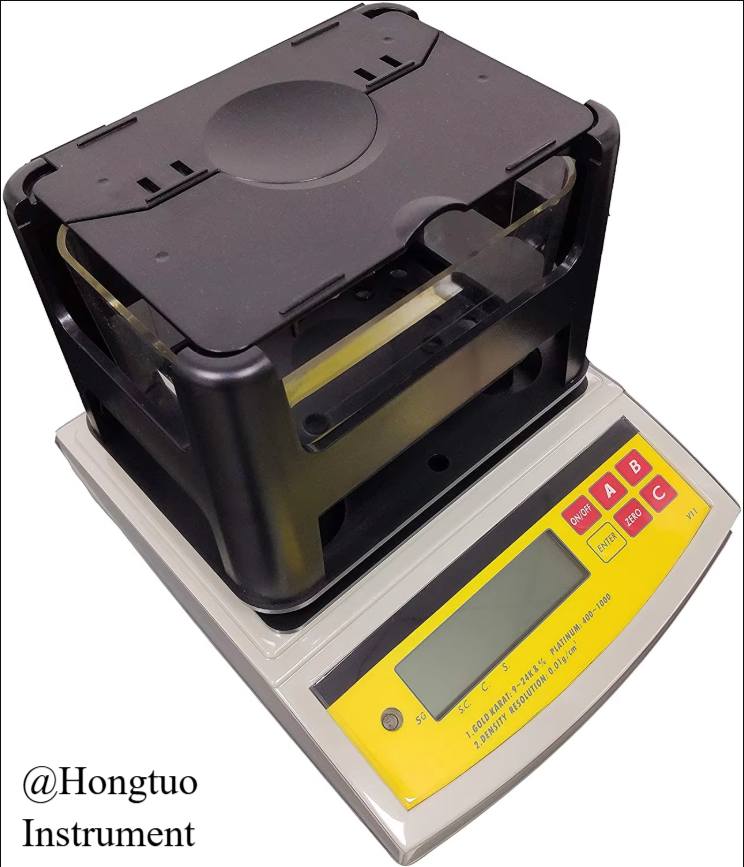

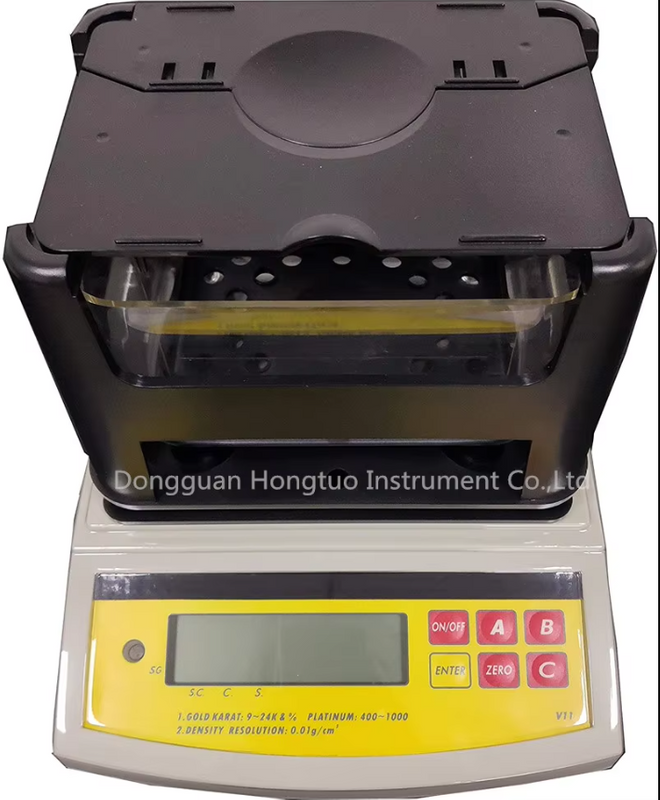

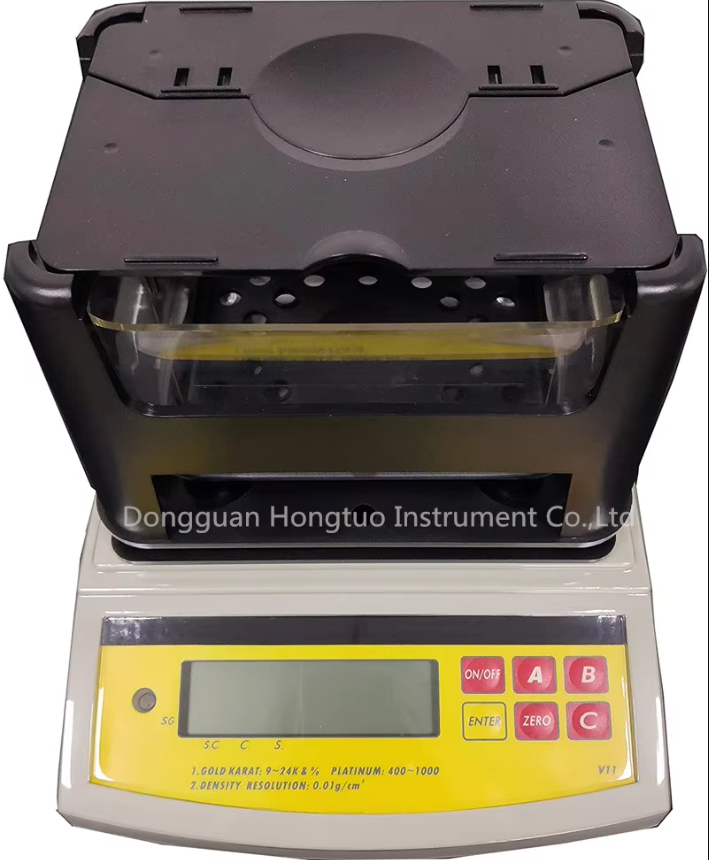

AU-1200K High-capacity 1200g Silver Purity Tester Portable Gold Jewelry Tester Gold Purity Testing Machine
Introduction:
AU-1200K is the dramatic updating and upgrading products.Compared with other competing products,it has been focused on enhancing weighting resolution,simplified operation procedure and operation method,upgraded software application function,improved reliability of measuring result. offer respectively three content measuring model for gold,platinum,silver and one alloy measuring model.
Application:
pawnbroking,jewelry industry,banking industry,jewelry testing center,mining industry,precious metal recycling,precious metal materials researching laboratory.,etc.
No need to bundle samples.Following value can be displayed precisely and quickly with only two procedure:
(1)karat value,percentage content,density for gold
(2)PT value,percentage content,density for platinum
(3)S value,percentage content,density for silver
(4)percentage content,density for other alloy
Notes:Following products can't be tested:
1.products of which inside is hollow(but if water or other liquids can be allowed to get access into the hollow.it can be tested);
2.products set with precious stones;
3.products of which the density is very close to precious metal.
Features:
(1)Distinguish whether the gold,karat gold,platinum,silver,other precious metal is the genuine or not.
(2)Test the purity of gold,karat gold,platinum,silver to confirm if the marked content is correct or not.
(3)No need to cut samples;also it can be measured immediately.
(4)Can shift to measure Karat and purity percentage of gold-silver-copper,gold-copper, gold-silver respectively.
(5)Function of density measuring and normal gram scale.
(6)Either water or alcohol would be as medium.
(7)Function of setting actual water temperature.
(8)Adopt completed injection molding PC sink(length:15.3cm X width10.7cm X 9.3cm)
(9)Including RS-232 interface;It's convenient to connect PC and printer.AU-40 could be optionally availabe to print result.
(10)Adopt injection moulding windproof dustproof shield;Convenient configuration;Better durability.
(11)Power supply:AC 100V-240V;50HZ/60HZ(Europe standard).
(12)Weight/packing size:4.5kg/length 42.5cm X width 17.5cm X height 32.5cm.
(13)Battery and car charger is optional.Convenient for using in case of power outage.
(14)Light yellow backlight is optional.
Measuring Procedure:
(1)Place sample on testing board to measure weight in air,press ENTER key.
(2)Place the sample into water to measure weight in water.Press ENTER key.result will be displayed.
Standard Accessories:
(1)Host,(2)Sink,(3)Measuring plate,(4)Tweezers,(5)Thermometer,(6)weight,(7)windproof (8)dustproof cover,(9)One set of measuring gold dust accessories,(10)Power supply
Specification Table:
Brand | Quarrz |
Model | AU-1200K |
Style | High-capacity |
Maximum weight | 1200g |
Weight standard deviation | 0.01g |
Minimum measuring sample Reference weight | 5g |
Density resolution | 0.001g/cm3 |
Sink size | Length20.3 cm×width15.7 cm×height11.3cm |
Measuring function | (1)karat value,percentage content,density for gold (2)PT value,percentage content,density for platinum (3)S value,percentage content,density for silver (4)percentage content,density for other alloy. |
Gold K value | （10、11、12、13、14、15、16、17、18、19、20、21、22、23、24）K &content percentage % |
Platinum | PT600 、PT650、PT700、PT750、PT800、PT850、PT900、PT950、PT1000 & content percentage % |
Silver | S600 、S650、S700、S750、S800、S850、S900、S950、S1000 & content % |
Testing error | Default as ±1K;also can be set up as 0.1K,0.01K,need to confirm with factory firstly |
Measuring principle | Archimedes buoyancy method |
Measuring time | About 5 to 20 seconds |
Measuring procedure | (1)Measure the weight in air firstly,press ENTER key. (2)Place the sample into water to measure weight in water.Press ENTER key.display result. |
Parameter setting | Water temperature setting,measuring medium density setting,air density setting,main materials and secondary materials density setting,copper-silver proportion setting |
Copper-silver proportion range | can be shifted cyclically with 9/1,8/2,7/3,6/4,5/5,4/6,3/7,2/8,1/9.the default setting is 7/3. |
Calibration method | Single key calibration,automatic testing |
Standard accessories | (1)Host,(2)Sink,(3)Measuring plate,(4)Tweezers,(5)Thermometer,(6)weight,(7)windproof dustproof cover(8)One set of measuring gold dust accessories(9)Power supply |
Data interface | Standard RS-232 interface |
Optional accessories | AU-40 printer,AU-40A data connecting line |
Power supply | AC100V~240V 50HZ/60HZ Europe standard |
Gross weight/size | 4.3kg/ Length 42.5 cm× width 17.5 cm×height 32.5cm |
Notice:
Due to the limited function determined by the principle.
Following gold type can't be tested by gold density meter.
(1)Gold has any decoration.
(2)Gold has the painting.
(3)Gold inside is hollow.
(4)Plating gold.
Following gold type has high requirement for the operation:
Gold with complex structure

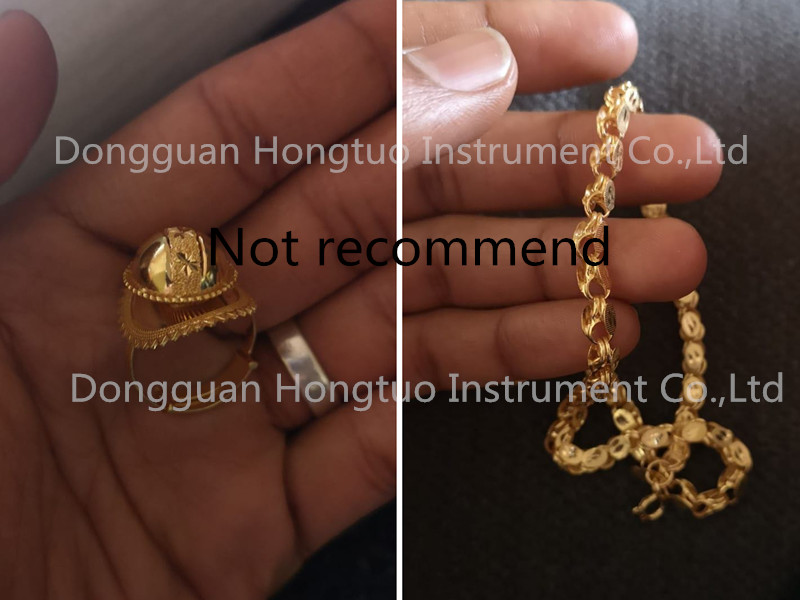

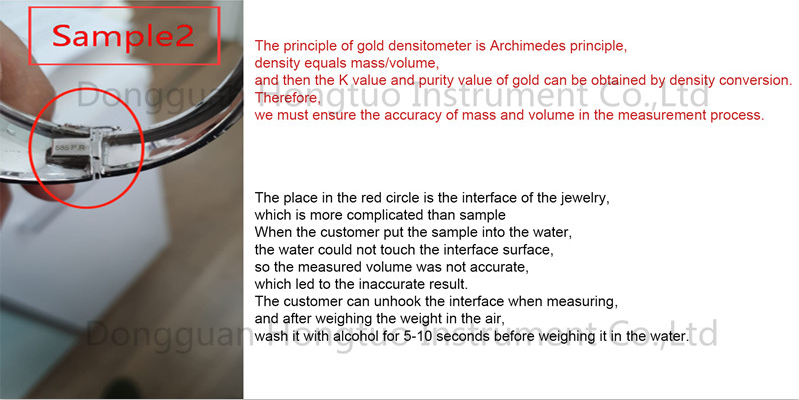

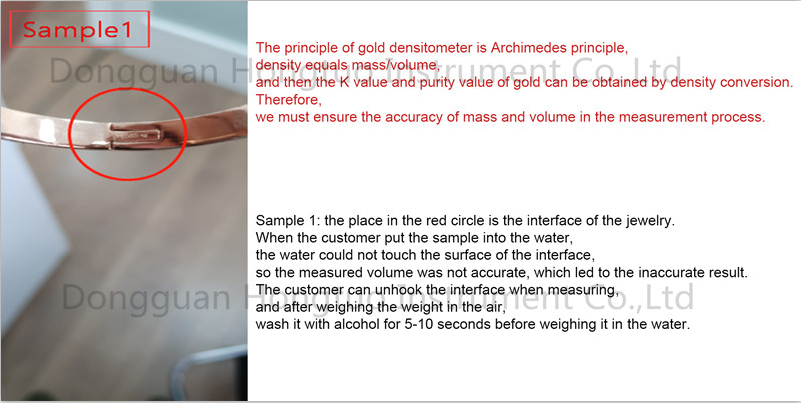

Here is some examples as following.We would not like to recommend you to test this kind of gold by using the gold density meter.
Packaging:
Company Information:
Certifications:
AU-1200K High-capacity 1200g Silver Purity Tester Portable Gold Jewelry Tester Gold Purity Testing Machine
Introduction:
AU-1200K is the dramatic updating and upgrading products.Compared with other competing products,it has been focused on enhancing weighting resolution,simplified operation procedure and operation method,upgraded software application function,improved reliability of measuring result. offer respectively three content measuring model for gold,platinum,silver and one alloy measuring model.
Application:
pawnbroking,jewelry industry,banking industry,jewelry testing center,mining industry,precious metal recycling,precious metal materials researching laboratory.,etc.
No need to bundle samples.Following value can be displayed precisely and quickly with only two procedure:
(1)karat value,percentage content,density for gold
(2)PT value,percentage content,density for platinum
(3)S value,percentage content,density for silver
(4)percentage content,density for other alloy
Notes:Following products can't be tested:
1.products of which inside is hollow(but if water or other liquids can be allowed to get access into the hollow.it can be tested);
2.products set with precious stones;
3.products of which the density is very close to precious metal.
Features:
(1)Distinguish whether the gold,karat gold,platinum,silver,other precious metal is the genuine or not.
(2)Test the purity of gold,karat gold,platinum,silver to confirm if the marked content is correct or not.
(3)No need to cut samples;also it can be measured immediately.
(4)Can shift to measure Karat and purity percentage of gold-silver-copper,gold-copper, gold-silver respectively.
(5)Function of density measuring and normal gram scale.
(6)Either water or alcohol would be as medium.
(7)Function of setting actual water temperature.
(8)Adopt completed injection molding PC sink(length:15.3cm X width10.7cm X 9.3cm)
(9)Including RS-232 interface;It's convenient to connect PC and printer.AU-40 could be optionally availabe to print result.
(10)Adopt injection moulding windproof dustproof shield;Convenient configuration;Better durability.
(11)Power supply:AC 100V-240V;50HZ/60HZ(Europe standard).
(12)Weight/packing size:4.5kg/length 42.5cm X width 17.5cm X height 32.5cm.
(13)Battery and car charger is optional.Convenient for using in case of power outage.
(14)Light yellow backlight is optional.
Measuring Procedure:
(1)Place sample on testing board to measure weight in air,press ENTER key.
(2)Place the sample into water to measure weight in water.Press ENTER key.result will be displayed.
Standard Accessories:
(1)Host,(2)Sink,(3)Measuring plate,(4)Tweezers,(5)Thermometer,(6)weight,(7)windproof (8)dustproof cover,(9)One set of measuring gold dust accessories,(10)Power supply
Specification Table:
Brand | Quarrz |
Model | AU-1200K |
Style | High-capacity |
Maximum weight | 1200g |
Weight standard deviation | 0.01g |
Minimum measuring sample Reference weight | 5g |
Density resolution | 0.001g/cm3 |
Sink size | Length20.3 cm×width15.7 cm×height11.3cm |
Measuring function | (1)karat value,percentage content,density for gold (2)PT value,percentage content,density for platinum (3)S value,percentage content,density for silver (4)percentage content,density for other alloy. |
Gold K value | （10、11、12、13、14、15、16、17、18、19、20、21、22、23、24）K &content percentage % |
Platinum | PT600 、PT650、PT700、PT750、PT800、PT850、PT900、PT950、PT1000 & content percentage % |
Silver | S600 、S650、S700、S750、S800、S850、S900、S950、S1000 & content % |
Testing error | Default as ±1K;also can be set up as 0.1K,0.01K,need to confirm with factory firstly |
Measuring principle | Archimedes buoyancy method |
Measuring time | About 5 to 20 seconds |
Measuring procedure | (1)Measure the weight in air firstly,press ENTER key. (2)Place the sample into water to measure weight in water.Press ENTER key.display result. |
Parameter setting | Water temperature setting,measuring medium density setting,air density setting,main materials and secondary materials density setting,copper-silver proportion setting |
Copper-silver proportion range | can be shifted cyclically with 9/1,8/2,7/3,6/4,5/5,4/6,3/7,2/8,1/9.the default setting is 7/3. |
Calibration method | Single key calibration,automatic testing |
Standard accessories | (1)Host,(2)Sink,(3)Measuring plate,(4)Tweezers,(5)Thermometer,(6)weight,(7)windproof dustproof cover(8)One set of measuring gold dust accessories(9)Power supply |
Data interface | Standard RS-232 interface |
Optional accessories | AU-40 printer,AU-40A data connecting line |
Power supply | AC100V~240V 50HZ/60HZ Europe standard |
Gross weight/size | 4.3kg/ Length 42.5 cm× width 17.5 cm×height 32.5cm |
Notice:
Due to the limited function determined by the principle.
Following gold type can't be tested by gold density meter.
(1)Gold has any decoration.
(2)Gold has the painting.
(3)Gold inside is hollow.
(4)Plating gold.
Following gold type has high requirement for the operation:
Gold with complex structure
Here is some examples as following.We would not like to recommend you to test this kind of gold by using the gold density meter.
Packaging:
Company Information:
Certifications:
Guangdong Hongtuo Instrument Technology Co.,Ltd has been specializing in density testing field on developing, innovating and producing since the year it was establised.
