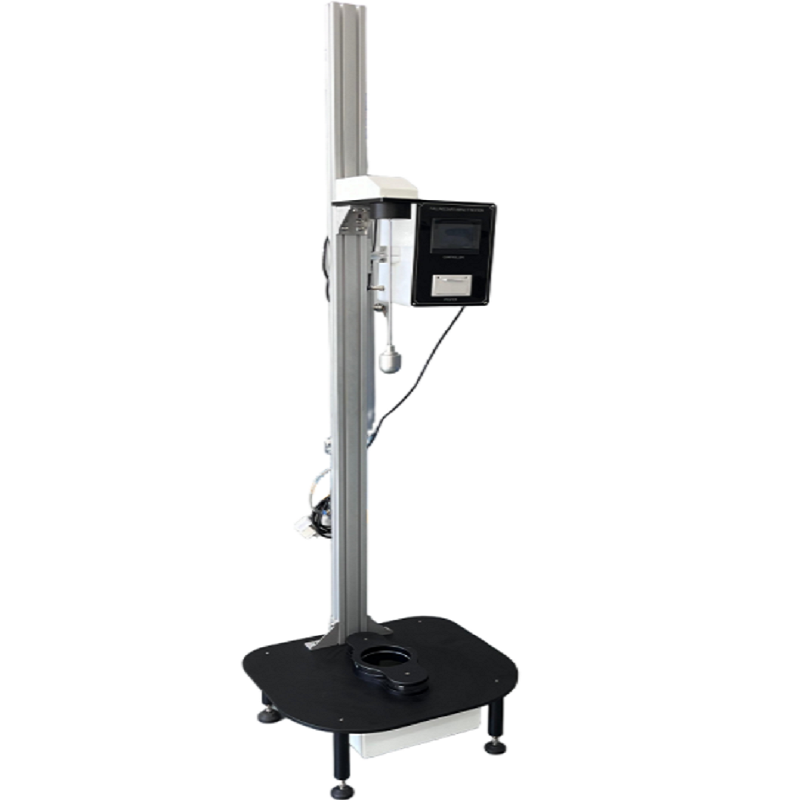

DH-BMC-2 Falling Dart Impact Testing Instrument, Falling Dart Impact Testing Apparatus, Falling Dart Impact Testing Equipment
The falling dart impact tester is used to measure the impact mass and energy when 50% of the plastic film or sheet samples with a thickness of less than 1mm are damaged under the impact of a free falling dart from a given height.

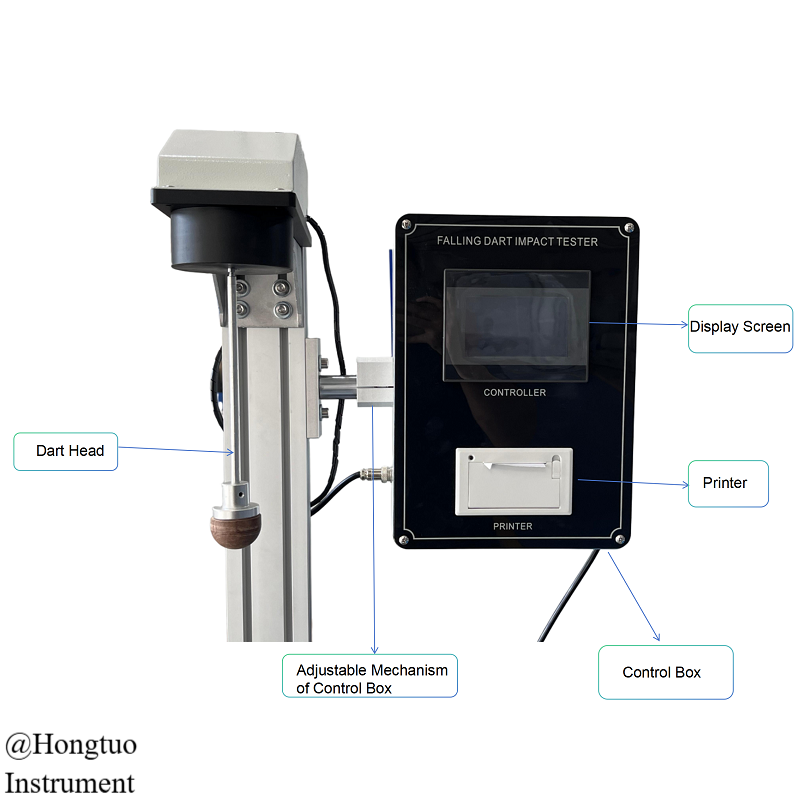

Features:
1. The electromagnetic suction and hanging of the header can be released automatically, effectively avoiding human errors
2.The sample is pneumatically tightened and released, reducing experimental errors and test time
3.Test method A, B dual mode design
4.Unique lighting observation lamp, convenient and fast test
Principle:
At the beginning of the test, first select the test method, estimate an initial mass and Δm value, and conduct the test. If the first sample is broken, use the weight Δm to reduce the mass of the falling body; if the first sample is not broken, the weight Δm must be used to increase the mass of the falling body and conduct the test accordingly. In short, using weights to reduce or increase the mass of the falling body depends on whether the previous sample is broken. After testing 20 samples, calculate the total number of broken samples N. If N is equal to 10, the test is completed; if N is less than 10, after supplementing the sample, continue the test until N is equal to 10; if N is greater than 10, after supplementing the sample, continue the test until the total number of unbroken samples is equal to 10, and finally the system automatically calculates the impact result.
Application:
Film, sheet | It is suitable for testing the impact resistance of plastic films, sheets and composite films with a thickness of less than 1mm, such as PE cling film, wrapping film, PET sheet, food packaging bags of various structures, heavy packaging bags, etc. |
Aluminum foil, aluminum-plastic composite film | Applicable to the impact resistance test of aluminum foil and aluminum-plastic composite film |
Paper and cardboard testing | Applicable to the impact resistance test of paper and cardboard |
Technical Parameters:
Measuring method | A method/ B method |
Measuring range | A method:50~2000g B method:300~2000g (Addition 25g and 40g) |
| Impact height | A method: 660mm±1mm B method: 1500mm±1mm |
Dart head diameter | A method:38mm B method:50mm |
Test accuracy | 0.1g(0.1J) |
Sample size | >150mm×150mm |
Sample clamping | pneumatic |
Air source pressure | 0.6MPa(Gas source User-provided) |
Air source interface | 8mm Polyurethane tube |
Power supply | AC 220V 50Hz |
Net weight | 70kg |
Exterior dimension | A method:500 mm (L) × 450 mm (W) × 1320 mm (H) B method:500 mm (L) × 450 mm (W) × 2160 mm (H) |
Packaging&Shipping:

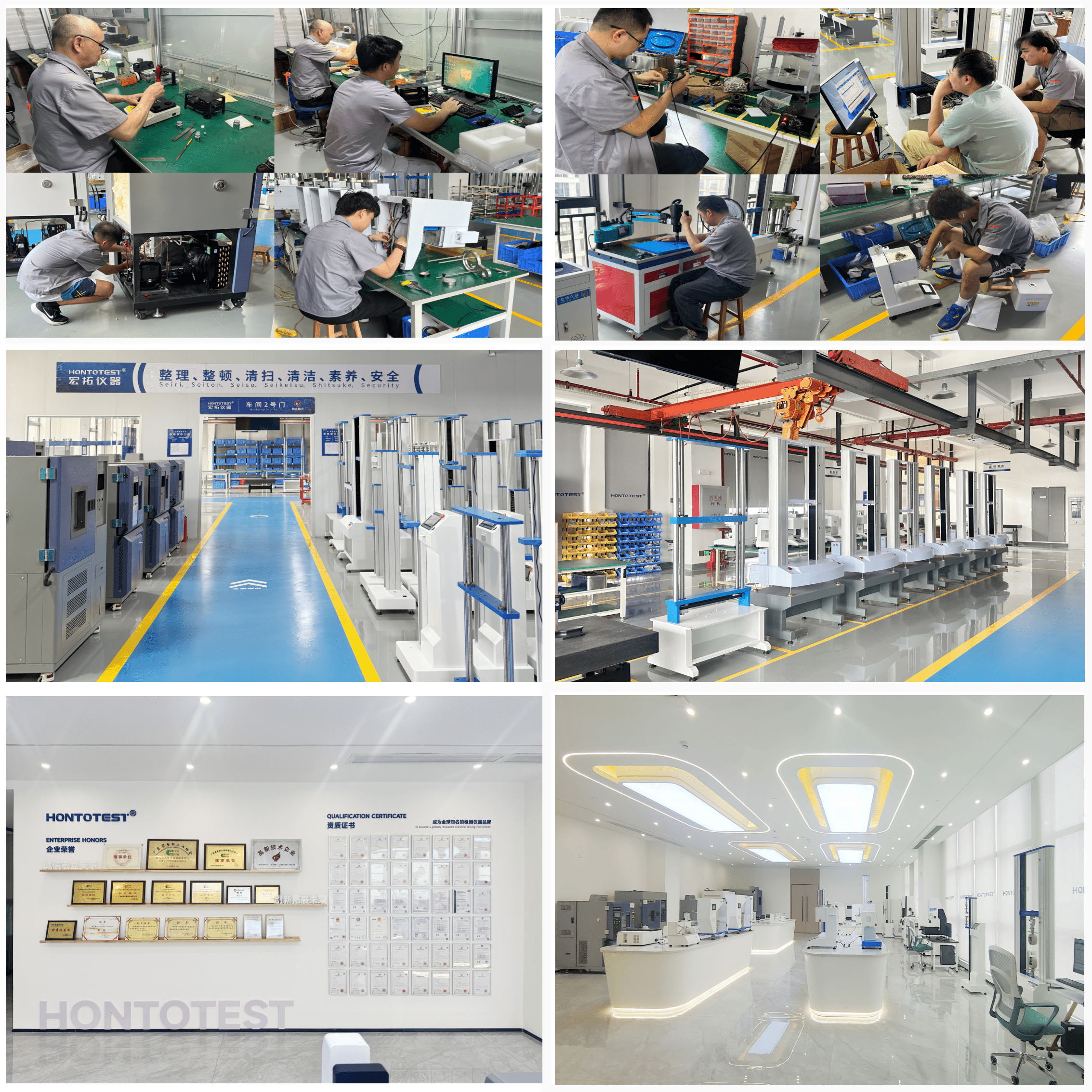

Company Information:
