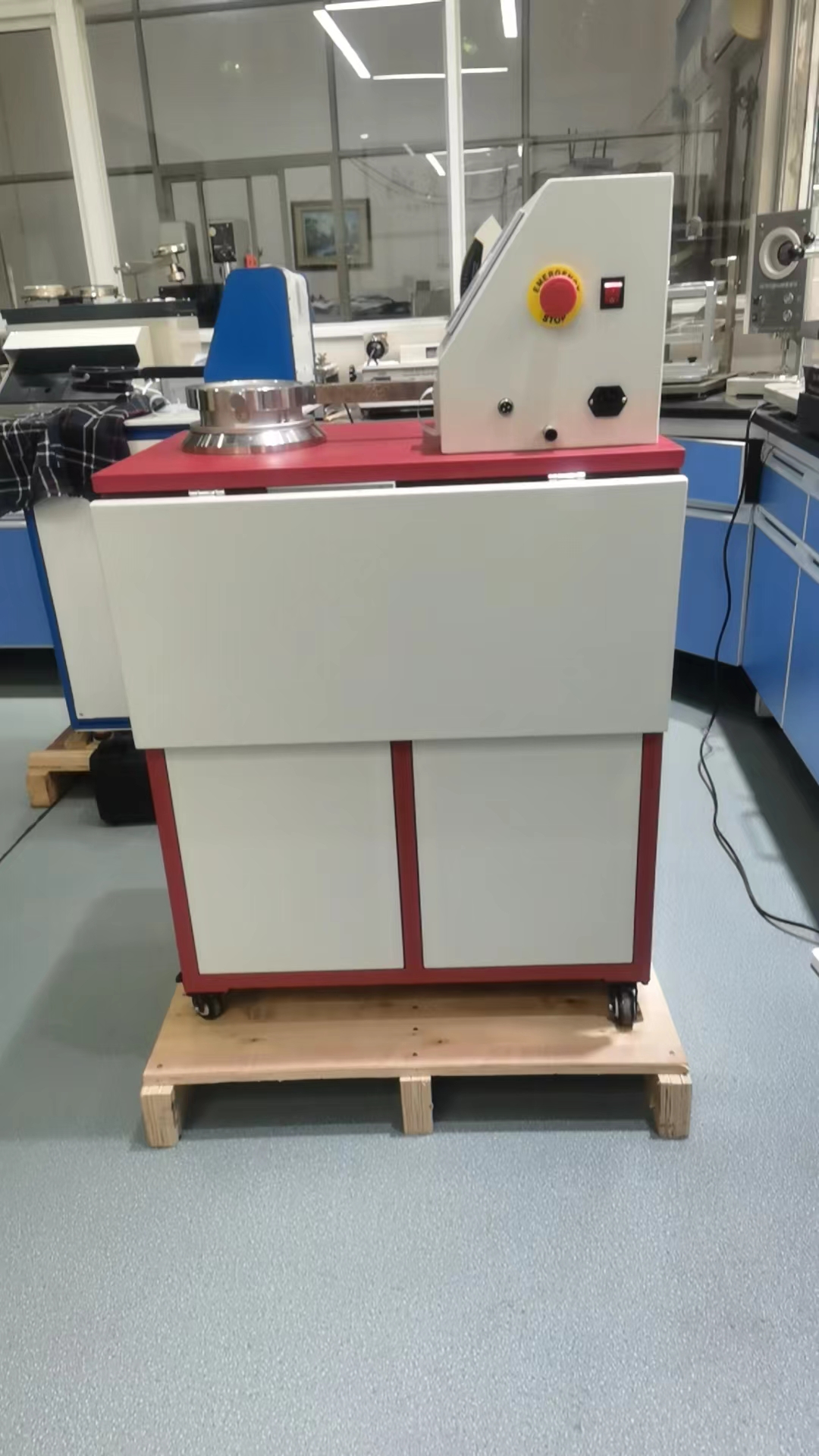

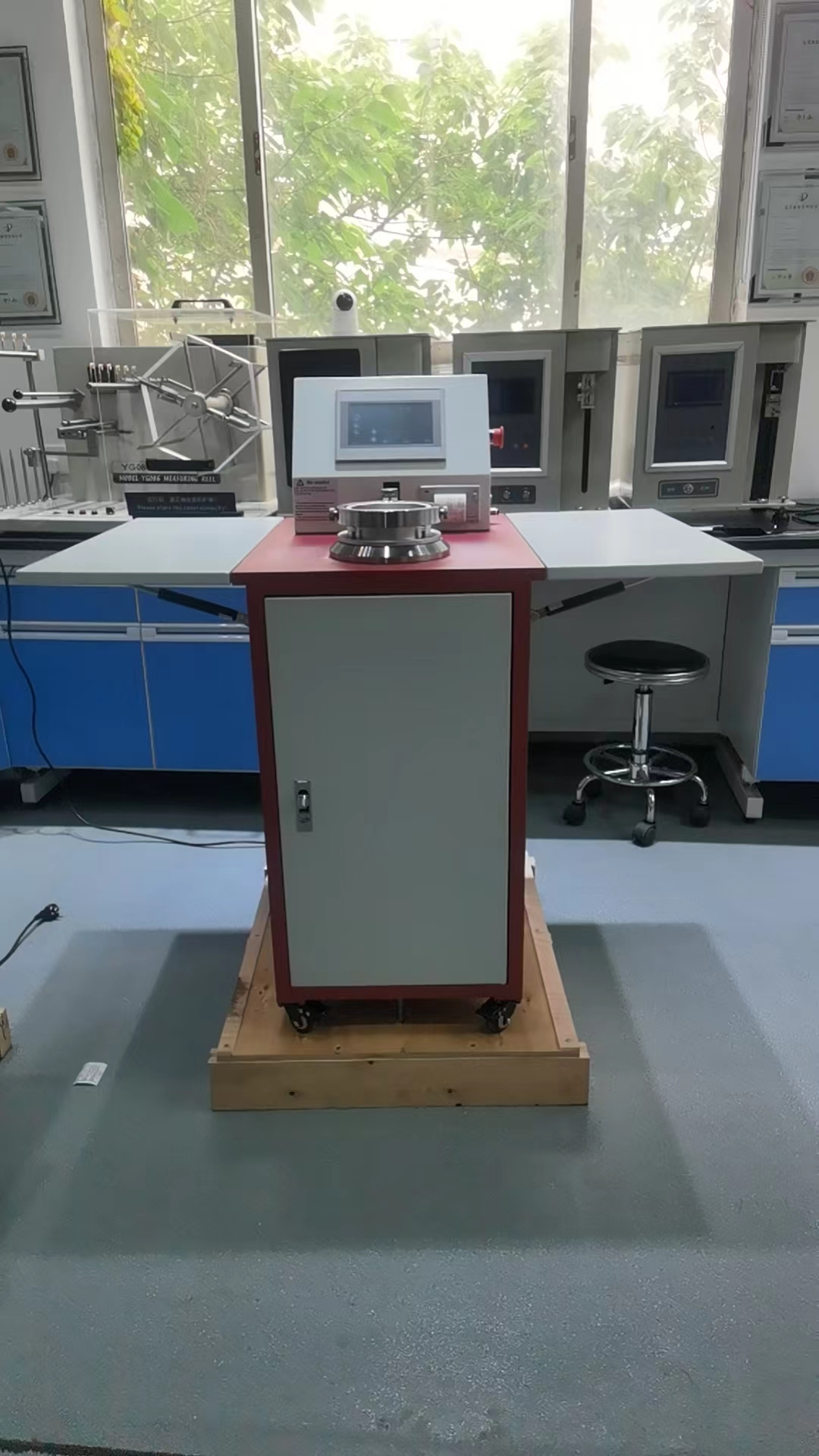

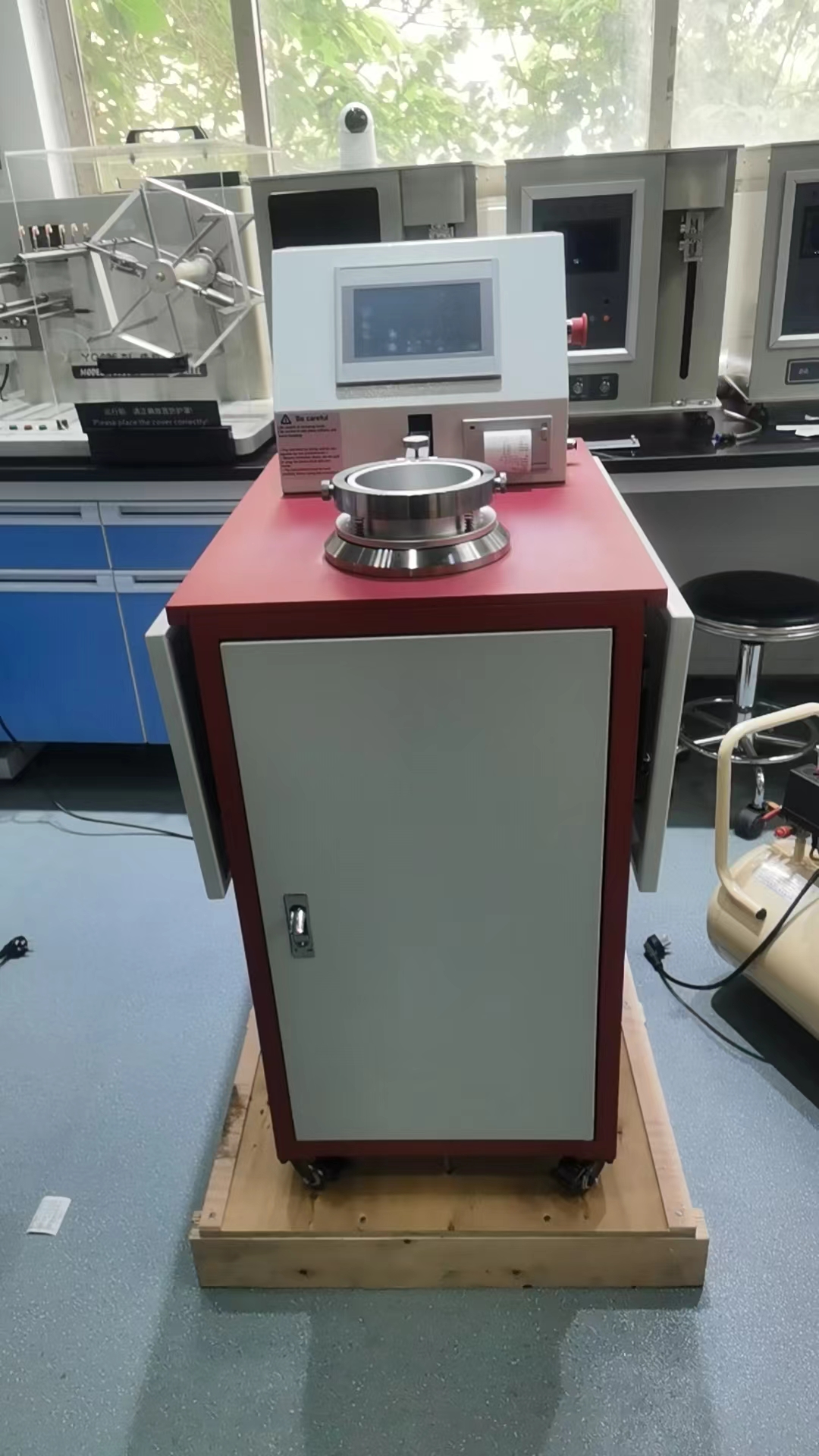

DH-YG461E Fully Automatic Fabric Air Permeability Tester Textile Air Permeability Tester

DH-YG461E Fully Automatic Fabric Air Permeability Tester Textile Air Permeability Tester

Used for testing the filter, filter cloth, filter paper, filter material and other kinds of filtering material permeability test.

Standards:GB/T5453  GB/T13764  ISO9237  ISO7231  ISO5636 BS5636  ASTM D737  DIN 53887   JIS L1096  BS5636

Features:

●High precision pressure sensor.

●Intelligent and flexible touch interface, the whole process of dynamic test is displayed.

●Full-scale automatic detection and conversion of air permeability and air permeability of various samples.

●Can arbitrarily set different national standard parameters and units, and the test results can be directly printed out without conversion.

●Measurement unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min

Technical Parameter:

1 Pressure range: 0～4000Pa self-set pressure drop

2 Measurable air permeability: 0.1～12000mm/s

3 Measurement error: ≤±2%

4 Measurable fabric thickness: ≤15mm

5 Suction volume adjustment: data feedback dynamic adjustment

6 Sample area setting circle: 5cm2; 20cm2; 50cm2; 100cm2; optional

7 Sample diameter setting circle: Ф50mm (≈19.6cm2) Ф70mm (≈38.5cm2)

8 Nozzles: 11 in total

9 Data processing capacity: ≤1000 trials

10 Data output: high-definition touch screen display; built-in micro-printer;

11 Power supply: AC 220V±10V 50Hz

12 Power consumption: 200W

13 Weight: 80Kg

14 Appearance: 600×700×1100mm (L×W×H)
