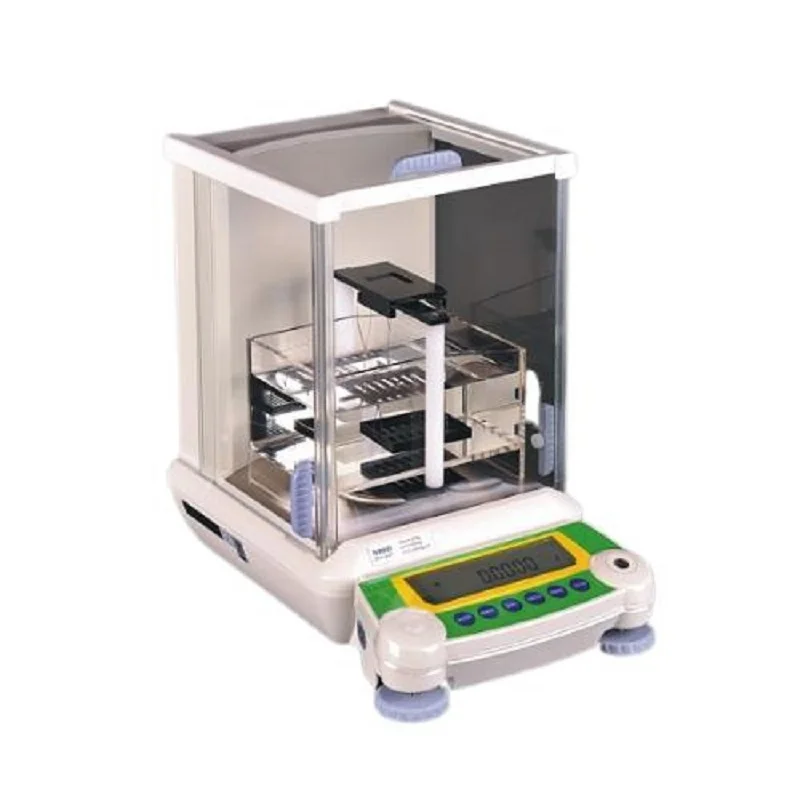

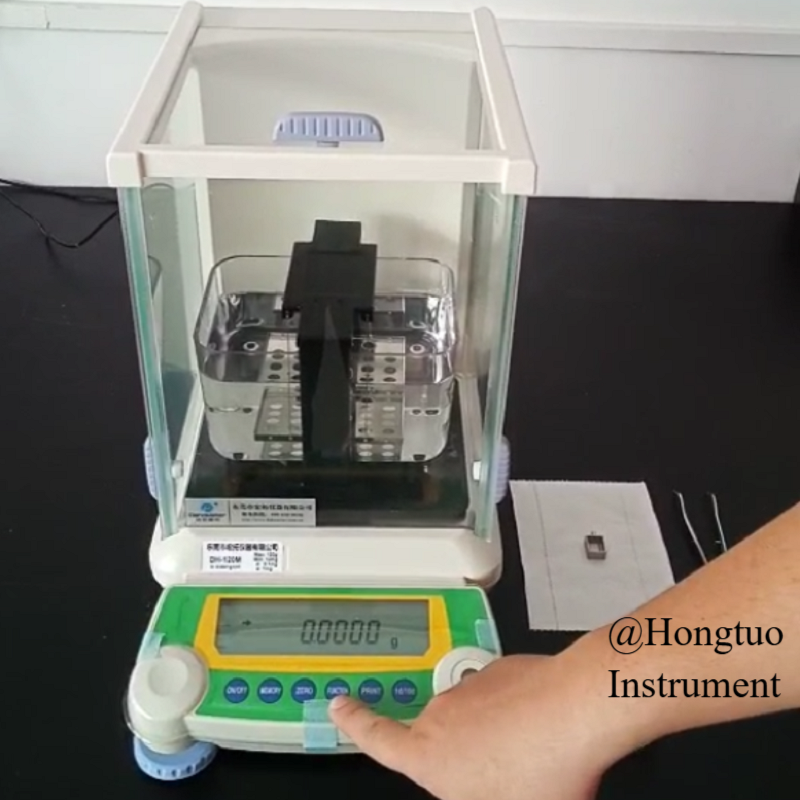

DHN-122M High Precision Electronic Solids Densimeter, Good Quality Solids Density Meter,Professional Density Tester for Solids
-----Density Resolution 0.0001g/cm3,Excellent Stability
Application:
Quality management density measuring,Base materials density researching,Micro-products density testing,High-density products density testing.Key laboratory,materials science researching.
Standards:
ASTM D792,ASTMD297,GB/T1033,GB/T2951,GB/T3850,GB/T533,HG4-1468,JIS K6268,ISO 2781,ISO 1183,GB/T4196 GB/T4123 GB/T5586,JB/T7780…
Combined with the Archimedes principle and advanced electronical technology,applied the host original imported from Japan.DH-120M series had the features of good durability,artistic design,exquisite workmanship,stability,high-precision and simple operation,which the density can be tested with one measuring procedure.This model installed completed aluminum alloy testing platform and transparent tank.
Specification:
Model:DHN-122M
Density resolution: 0.0001 g/cm3
Maximum weight:120g/40g
Minimum weight:0.0001g/0.00001g
Measuring range: 0.0001—99.9999g/cm3
Features:
(1)Quick test the density of any solids products
(2)Micro-products and high density products also can be measured
(3)Density value can be displayed just through one operation procedure
(4)Both density more than 1g/cm3 and less than 1g/cm3 can be tested
(5)Function of automatic zero tracking
(6)Function of environment adjusting
(7)Function of actual water temperature compensation
(8)Not only water can be as medium but also other liquids
(9)Installed the aluminum alloy components,the tank was anti-corrosive,and resistance to fall break
(10)Including RS-232C interface,PC and printer were available to connect.DE-40 printer can be choose to print testing data.
Measuring Procedure:

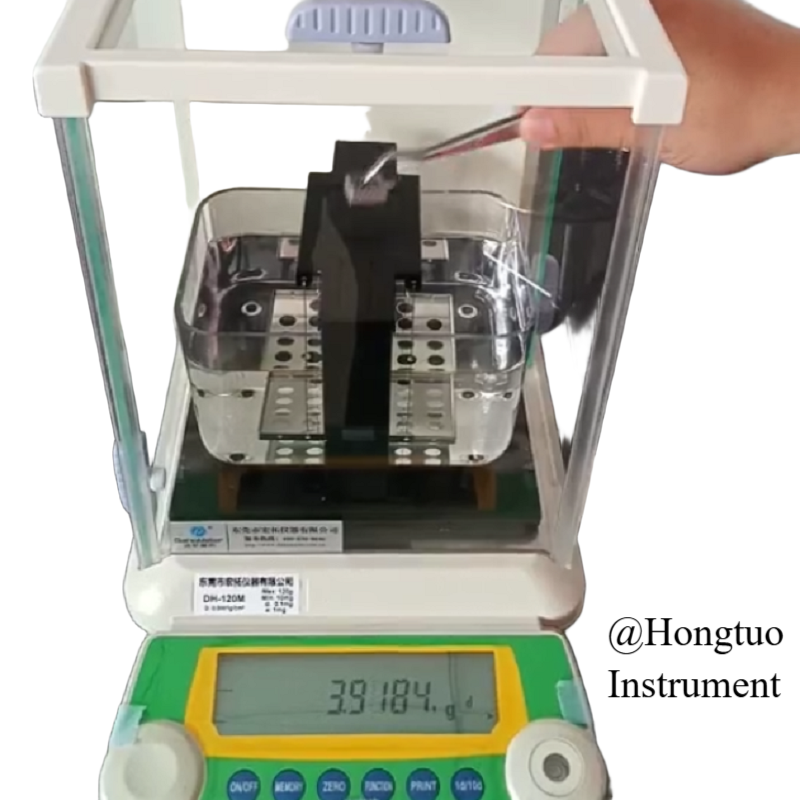

(1)Place sample on testing board.measure weight in air.press MEMORY key.

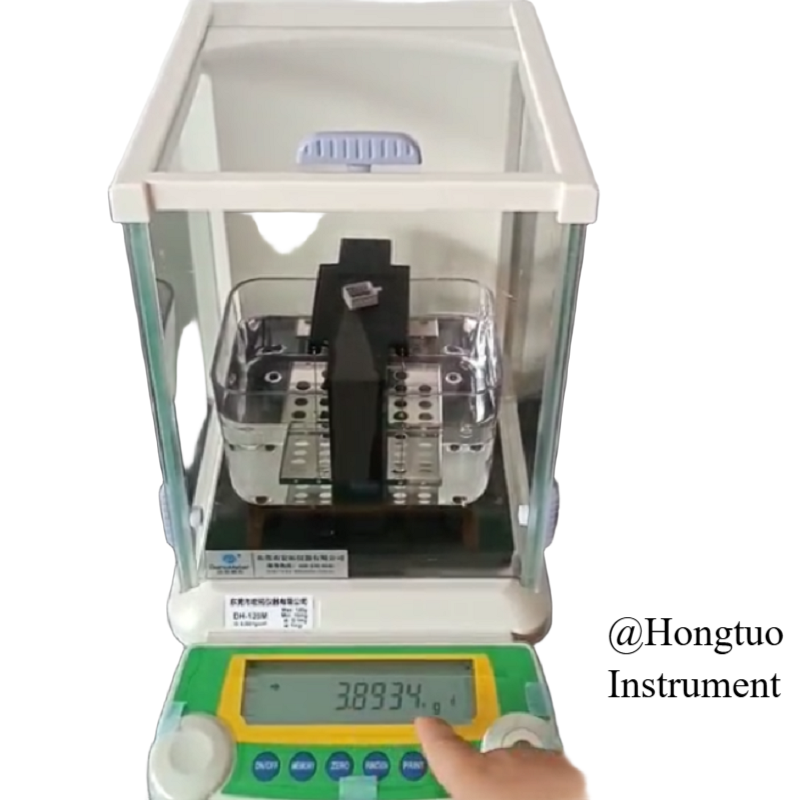

(2)Place sample into water.measure weight in water.press MEMORY key.
Standard Components
Standard Accessories:
a.one set of host
b.one pcs of water tank
c.one set of measuring platform
d.one pcs of tweezers
e.one pcs of thermometer
f.one set of measuring particle components
g.one set of floating components
h.one pcs of power transformer
i.one pcs of 100g weights
Specification Table:
Brand | DahoMeter |
Model | DHN-122M |
Measuring range | 0.0001~120g/0.00001~40g |
Density resolution | 0.0001 g/cm3 |
Density range | 0.0001~99.9999g/cm3 |
Measuring products | Any shape of solids,rubber,plastic,metal,plastic granules,plastic film,floating,powders, seal ring,foaming,viscous,fastener,tubing,board,glass... |
Measuring principle | Archimedes |
Measuring time | About 5 seconds |
Memory method | One procedure |
Specific gravity measuring shelf | Precision completed aluminum alloy press forming measuring shelf(size:13.5cm X 4cm X 11.6cm) |
Measuring water tank | Completed injection molding transparent tank(16.9cm X 9.8cm X 8.3cm) |
Result display | Density |
| Parameter setting | Water temperature setting,measuring medium density setting |
Calibration method | Single button automatic correct and test |
Output way | RS-232C standard communication interface,export data and print |
Standard components | a.one set of host b.one pcs of water tank c.one set of measuring platform d.one pcs of tweezers e.one pcs of thermometer f.one set of measuring particle components g.one set of floating components h.one pcs of power transformer i.one pcs of 100g weights |
Optional Accessories | DE-40 printer |
Power Supply | AC100V-240V European standard;customer can choose other international standards |
Packaging&Shipping:
Company Information:
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications:
