You are here: Home » Products » Density Meter » 0.0001g/cm3 High Precision Electronic Solids Densimeter 0.0001g Minimum Weight

Product Detail

0.0001g/cm3 High Precision Electronic Solids Densimeter 0.0001g Minimum Weight 0.0001g/cm3 High Precision Electronic Solids Densimeter 0.0001g Minimum Weight
0.0001g/cm3 High Precision Electronic Solids Densimeter 0.0001g Minimum Weight 0.0001g/cm3 High Precision Electronic Solids Densimeter 0.0001g Minimum Weight

loading

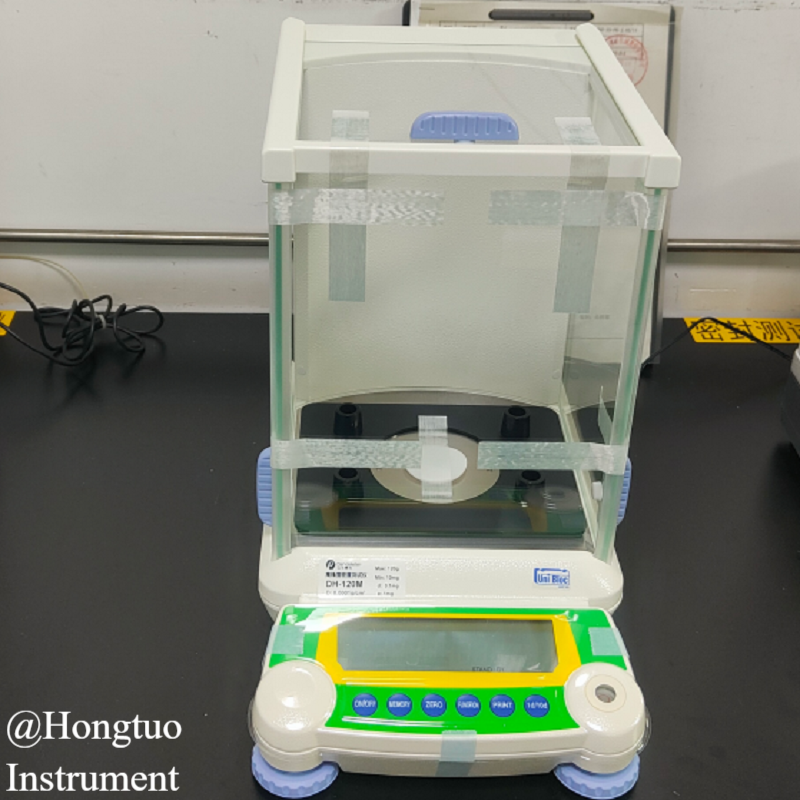

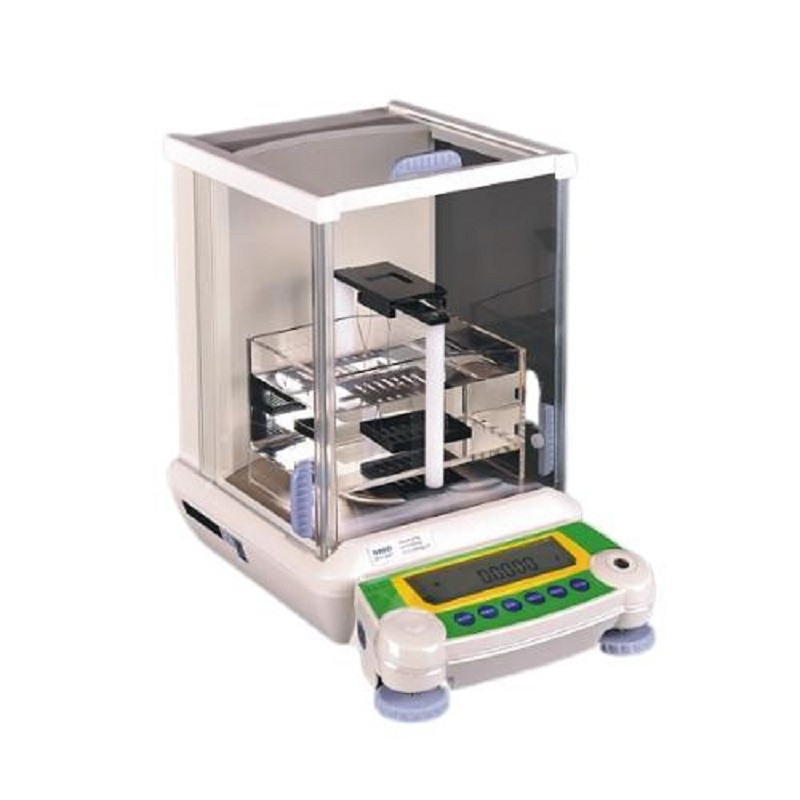

0.0001g/cm3 High Precision Electronic Solids Densimeter 0.0001g Minimum Weight

Share to:
sharethis sharing button
Density resolution: 0.0001 g/cm3
Maximum weight:120g
Minimum weight:0.0001g
Measuring range: 0.0001—99.9999g/cm3
  • DH-120M

  • Dahometer

  • 1 set

  • 5-7 days

  • 1 years,Lifelong maintenance

  • TT/Western Union/Paypal etc

  • Negotiable

Availability:
Quantity:

0.0001g/cm3 High Precision Electronic Solids Densimeter 0.0001g Minimum Weight


Application:

Quality management density measuring,Base materials density researching,Micro-products density testing,High-density products density testing.Key laboratory,materials science researching.

Standards:

ASTM D792,ASTMD297,GB/T1033,GB/T2951,GB/T3850,GB/T533,HG4-1468,JIS K6268,ISO 2781,ISO 1183,GB/T4196,GB/T4123 GB/T5586,JB/T7780…

Combined with the Archimedes principle and advanced electronical technology,applied the host original imported from Japan.DH-120M series had the features of good durability,artistic design,exquisite workmanship,stability,

high-precision and simple operation,which the density can be tested with one measuring procedure.This model installed completed aluminum alloy testing platform and transparent tank.

Specification:

Model:DH-120M

Density resolution: 0.0001 g/cm3

Maximum weight:120g

Minimum weight:0.0001g

Measuring range: 0.0001—99.9999g/cm3


Model:DH-200M

Density resolution: 0.0001 g/cm3

Maximum weight:200g

Minimum weight:0.0001g

Measuring range: 0.0001—99.9999g/cm3


Model:DHN-122M

Density resolution: 0.0001 g/cm3

Maximum weight:120g/40g

Minimum weight:0.0001g/0.00001g

Measuring range: 0.0001—99.9999g/cm3


Model:DHN-202M

Density resolution: 0.0001 g/cm3

Maximum weight:200g/80g

Minimum weight:0.0001g/0.00001g

Measuring range: 0.0001—99.9999g/cm3

Features:

(1)Quick test the density of any solids products

(2)Micro-products and high density products also can be measured

(3)Density value can be displayed just through one operation procedure

(4)Both density more than 1g/cm3 and less than 1g/cm3 can be tested

(5)Function of automatic zero tracking

(6)Function of environment adjusting

(7)Function of actual water temperature compensation

(8)Not only water can be as medium but also other liquids

(9)Installed the aluminum alloy components,the tank was anti-corrosive,and resistance to fall break

(10)Including RS-232C interface,PC and printer were available to connect.DE-40 printer can be choose to print testing data.

Measuring Procedure:

(1)Place sample on testing board.measure weight in air.press MEMORY key.

(2)Place sample into water.measure weight in water.press MEMORY key.

Standard Components

Standard Accessories:

a.one set of host

b.one pcs of water tank

c.one set of measuring platform

d.one pcs of tweezers

e.one pcs of thermometer

f.one set of measuring particle components

g.one set of floating components

h.one pcs of power transformer

i.one pcs of 100g weights

Specification Table

Brand

DahoMeter

Model

DH-120M

DH-200M

DHN-122M

DHN-202M

Measuring range

0.0001~120g

0.0001~200g

0.0001~120g/0.00001~40g

0.0001~200g/0.00001~80g

Density resolution

0.0001 g/cm3

Density range

0.0001~99.9999g/cm3

Measuring products

Any shape of solids,rubber,plastic,metal,plastic granules,plastic film,floating,powders,seal

ring,foaming,viscous,fastener,tubing,board,glass...

Measuring principle

Archimedes

Measuring time

About 5 seconds

Memory method

One procedure

Specific gravity

Precision completed aluminum alloy press forming measuring shelf(size:13.5cm X 4cm X 11.6cm)

measuring shelf

Measuring water tank

Completed injection molding transparent tank(16.9cm X 9.8cm X 8.3cm)

Result display

Density

Parameter setting

Water temperature setting,measuring medium density setting

Calibration method

Single button automatic correct and test

Output way

RS-232C standard communication interface,export data and print

Standard components

a.one set of host

b.one pcs of water tank

c.one set of measuring platform

d.one pcs of tweezers

e.one pcs of thermometer

f.one set of measuring particle components

g.one set of floating components

h.one pcs of power transformer

i.one pcs of 100g weights

Optional Accessories

DE-40 printer

Power Supply

AC100V-240V European standard;customer can choose other international standards
