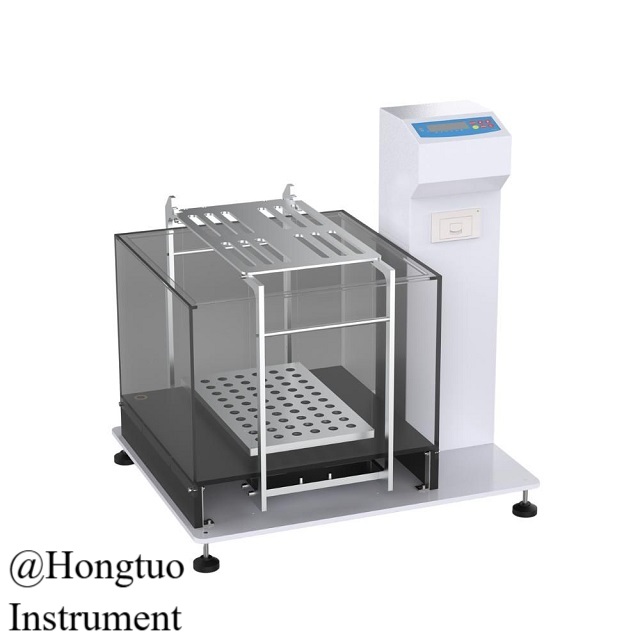

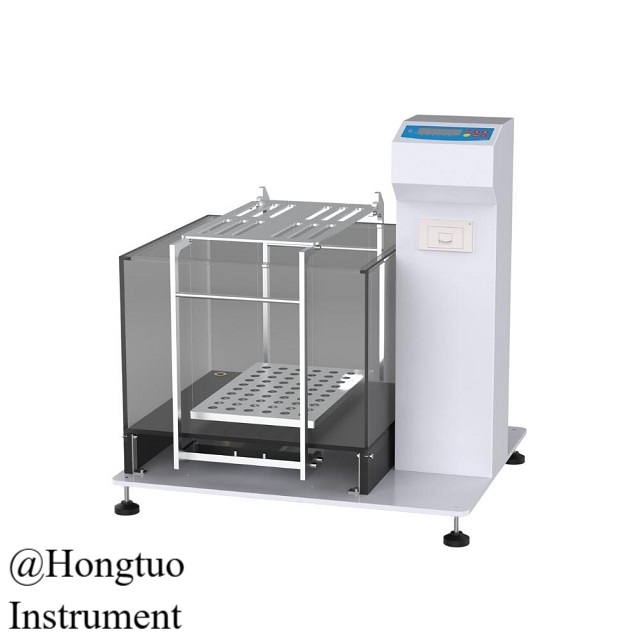

10000g High Capacity Large Volume Solid Density Meter, Electronic Density Tester Foam Sponge Densitometer DH-10G
ultra-large
adopt Germany imported sensor
instant measurement
accurate and reliable
The DH-G series adopts sensors imported from Germany with high precision and good stability; the body is all made of aluminum alloy, and the measuring frame adopts an open structure design to ensure the convenience of taking samples.
Widely used in:
Motor vehicle parts, aerospace parts, large mechanical parts, hard alloy, precious metal products, rare earth permanent magnet, magnetic materials, rare earth materials, non-ferrous metals, rare metals, powder metallurgy, ceramic industry, metal seals, metallurgical industry, calcined industry, fireproof materials, large rubber plastic parts, large foam body, foam, foam, sponge, sporting goods, shoe soles, rocks, geology, mining civil engineering, cultural relics and archaeology, key laboratories, materials science research laboratories.
Mainly for:
Density measurement of super-large volume products, density measurement of super-heavy weight products, density measurement of products with high foaming rate.
Features:
1. Meet the density detection of ultra-large volume and ultra-large weight products.
2. Density greater than 1 and less than 1 can be measured.
3. Sensors imported from Germany, with stable performance and accurate measurement.
4. The open measuring frame design makes it very convenient to take samples.
5. Instantly display the density, simple operation, fast time, no need for manual calculation.
6. With the actual water temperature compensation function, to avoid the deviation of measurement results caused by different water temperatures.
7. Use water as the medium and the water tank has water inlet and water outlet valves.
8. With RS-232C communication interface, it is convenient to connect PC and printer. Optional DE-40 printer to print measurement data.
9. Provide three-year quality assurance service.
Cooperation customers:
Yunnan Wudian Sputtering Target Technology Co., Ltd.
Fujian Acetron New Materials Co., Ltd.
Guangzhou UV Tech Material Co., Ltd.,
Ningbo Jiangfeng Electron Material Co., Ltd.
Zhuzhou Torch Antai New Materials Co., Ltd.
Chongqing Defeng Mechanical & Electrical Equipment Co., Ltd.
Taizhou Huangyan Five-Star Automobile Industry Co., Ltd.
Operation steps:
Step 1:
In the state of 0.00g, put the product on the measuring platform, and when the value is stable, press ENTER to store, and the status symbol M1 on the display will change to M2;
Step 2:
Remove the product from the measuring stand, and the triangle symbol points to the marking symbol SG, which means entering the density display screen, and then put the product on the hanging rail (below the anti-floating frame) and wait for the value to stabilize, then it will be displayed as a density value.
Specifications:
Brand | DahoMeter | ||||
Model | DH-10G | DH-20G | DH-30G | DH-50G | DH-60G |
Maximum measurement weight | 10000g | 20000g | 30000g | 50000g | 60000g |
Weighing accuracy | 0.1g | 0.2g | 0.2g | 0.5g | 0.5g |
Max. measuring volume | L710mm×W490mm×H380mm | ||||
Customization: different sizes of sinks can be customized according to the measured product size | |||||
Measurement type | Any solid form with density >1, density <1 can be measured | ||||
Density accuracy | 0.001 g/cm3 | ||||
Density range | 0.001~99.999g/cm3 | ||||
Density measurement frame | Aluminum alloy measuring frame | ||||
Measurement speed | 20 seconds/time | ||||
Result display | Density, volume, percentage content | ||||
Parameter setting | Water temperature setting, measurement medium density setting, binary material mixing ratio | ||||
Supply voltage | AC100V~240V 50HZ/60HZ (Default European standard plug, or choose other country standard plug) | ||||
Standard accessories | ① One host ② One tweezers ③ One thermometer ④ One weight ⑤ One power transformer | ||||
Optional accessories | ①DE-40 printer ②DE-60A large-scale density measuring device (large anti-floating frame) | ||||
Style | floor-standing |
