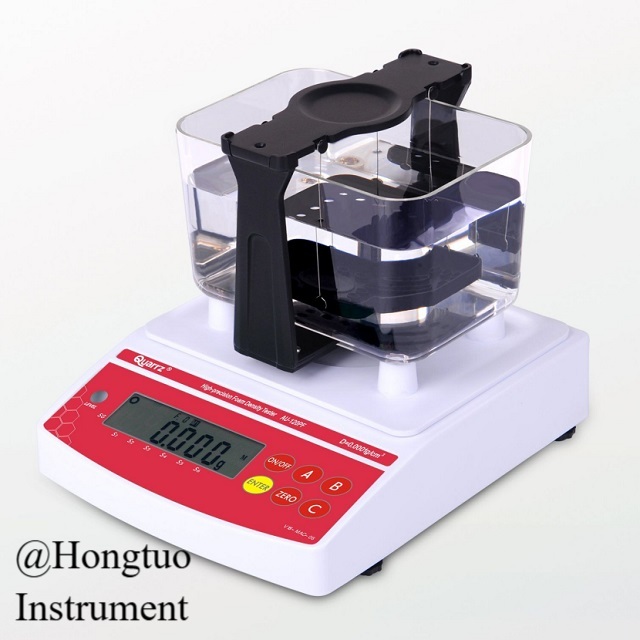

AU-120VP/AU-200VP
Dahometer
Availability: | |
---|---|
Quantity: | |
AU-120VP/AU-200VPHigh Precision Porosity Density Meter, Specific Gravity Tester Price, Density Meter for Metal Materials
Application:industrial ceramic,accuracy ceramic,penetrable sintered metal materials,powder metallurgy,magnetic materials,coal and rock,polymer porosity materials,new materials researching laboratory.
Porosity or void fraction is a measure of the void (i.e., "empty") spaces in a material, and is a fraction of the volume of voids over the total volume, between 0 and 1, or as a percentage between 0 and 100%.It can be calculated from the extra increased weight through dipping process.this instrument has been researched and developed by Quarrz;Adopt the high precision weighting sensor;Porosity can be read automatically;it has changed the manual computation method;save time,quick,convenient;function of testing density.
Standards:
In accordance with GB/T5165,ISO 2737,GB/T5164,ISO 2738,ASTM B311,B328,GB/T5163,JIS Z2505,JIS Z2506,MPIF Standard42,MPIF Standard45.,etc.
Measuring Density:
AU-120VP,AU-200VP density resolution:0.0001g/cm3,porosity resolution:0.01%
AU-300VP,AU-600VP,AU-900VP,AU-1200VP
density resolution:0.001g/cm3,porosity resolution:0.1%
Function and Feature:
Easy operation,accuracy,reliability.
Any shape can be measured instantly,suitable for quick measurement situation.such as site and laboratory.
Either water or other liquid can be used as medium..
Dipping liquid density can be set personally.
Adopt completed testing board and unobstructed without lifting lid design,more simpler operation,also makes the measuring result more reliable.
Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.
Equipped special windproof dustproof cover,which makes the structure more convenient and durable.
Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.
Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm
Power supply:AC 100V-240V 50HZ/60HZ Europe standard(Default).according to user’s requirement
Porosity Measuring Procedure:
1.Place sample on testing board to measure weight in air.press ENTER key to memory.
2.After did containing saturated processing,place sample on testing to measure weight.press ENTER key to memory.
3.Place sample into water to measure weight in water.press ENTER key.porosity will be displayed.
Standard Accessories:
(1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer
Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
Method three:Check security code that generate automatically by machine number.
Technical Specification
Brand | Quarrz | ||||||
Model | AU-300VP | AU-600VP | AU-900VP | AU-1200VP | AU-120VP | AU-200VP | |
Weight | range | 0.005~300g | 0.005~600g | 0.01~900g | 0.01~1200g | 0.001~120g | 0.001~200g |
Standard deviation | 0.005g | 0.005g | 0.01g | 0.01g | 0.001g | 0.001g | |
Density | readability | 0.001 g/cm3 | 0.0001 g/cm3 | ||||
Testing board | ABS injection moulding | Aluminum alloy die-casting moulding | |||||
Density range | 0.001~99.999g/cm3 | 0.0001~99.9999g/cm3 | |||||
Oil content resolution | 0.1% | 0.01% | |||||
Result displaying | Porosity,density,total volume,open pore volume,closed pore volume | ||||||
Measuring principle | Archimedes principle buoyancy method | ||||||
Measuring time | About 5 seconds | ||||||
Opening lid method for testing board | Unobstructed without lifting lid design | ||||||
Water tank | Completed injection moulding transparent PC water tank (size:length15.3 cm×witdth10.7 cm×height9.3cm) | ||||||
Parameter setting | Water temperature setting,measuring medium density setting,steeping liquor density setting,air buoyancy compensation setting | ||||||
Calibration method | Single key calibration,automatically testing | ||||||
Standard components | (1)host(2)water tank(3)testing board(4)tweezers(5)thermometers (6)weight(7)windproof dustproof cover(8)power transformer | ||||||
interface | Standard RS-232 interface | ||||||
Optional accessories | AU-40 printer,data connecting wire | ||||||
Power supply | Default as AC100V~240V 50HZ/60HZ(Europe standard). according to user’s requirement | ||||||
Gross weight/size | 4.5kg/Length42.5 cm×Width17.5 cm×Height32.5cm |
Oil Density Testing Equipment , Oil Content Analysis Machine, Oil Density Tester AU-900V/AU-1200V
Application:oil content,powder metallurgy,electric tools,air tools,mechanical parts,fan industry,motor industry,micro-motor,electrical industry,new materials researching laboratory.
Standards:In accordance with GB/T5165,ISO 2737,GB/T5164,ISO 2738,ASTM B311,B328,GB/T5163,JIS Z2505,JIS Z2506,MPIF Standard42,MPIF Standard45…
Oil content can be displayed by three procedure.it has changed the manual computation method;save time,quick,convenient;it is very suitable to test oil content for copper-base,iron-base,iron copper-base of transmission parts.
Measuring resolution:
AU-120V,AU-200V density resolution:0.0001g/cm3,oil content resolution:0.1%
AU-300V,AU-600V,AU-900V,AU-1200V density resolution:0.001g/cm3,oil content:0.01%
Function and Feature:
Easy operation,accuracy,reliability
Oil content,density,oil total volume,oil volume can be read directly.
Either water or liquid can be used as medium.
Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.
Function of actual water temperature setting,measuring medium density setting,air buoyancy compensation setting,density top and bottom limitation setting.
Equipped special windproof dustproof cover,which makes the structure more convenient and durable.
Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.
Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm
Power supply:AC 100V-240V 50HZ/60HZ Europe standard
Oil length measuring procedure:
Place oil sample on testing board to measure weight in air.press ENTER key to memory.
Place sample into water,press ENTER key to memory.
After oil wiped off,place sample on testing board to measure weight.press ENTER key to memory.oil content will be displayed.
Standard Accessories:
(1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer
Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
Method three:Check security code that generate automatically by machine number.
Technical Specification:
Brand | Quarrz | ||||||
Model | AU-300V | AU-600V | AU-900V | AU-1200V | AU-120V | AU-200V | |
Weight | range | 0.005~300g | 0.005~600g | 0.01~900g | 0.01~1200g | 0.001~120g | 0.001~200g |
Standard deviation | 0.005g | 0.005g | 0.01g | 0.01g | 0.001g | 0.001g | |
Density | readability | 0.001 g/cm3 | 0.0001 g/cm3 | ||||
Testing Board | ABS injection moulding | Aluminum alloy die-casting moulding | |||||
range | 0.001~99.999g/cm3 | 0.0001~99.9999g/cm3 | |||||
Oil content resolution | 0.1% | 0.01% | |||||
Result display | Oil content,density,oil total volume,oil volume can be read directly. | ||||||
Measuring principle | Archimede principle substitution method | ||||||
Measuring time | Around 10 to 60 seconds | ||||||
Opening lid method for testing board | Rapid unobstructed without lifting lid design | ||||||
Water tank | Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm) | ||||||
Parameter setting | Water temperature setting,measuring medium density setting, lubricating oil medium density setting,air buoyancy setting. | ||||||
Calibration method | Single key calibration,automatically detection | ||||||
Standard components | (1)host(2)water tank(3)testing board(4)tweezers(5)thermometers (6)weight(7)windproof dustproof cover(8)power transformer | ||||||
Interface | Standard RS-232 interface | ||||||
Optional accessories | AU-40 printer,data connecting wire | ||||||
Power supply | AC100V~240V 50HZ/60HZ (Europe standard) | ||||||
Gross weight/size | 4.5kg/Length42.5 cm×Width17.5 cm×Height32.5cm |
