You are here: Home » Products » Others » DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace

Product Detail

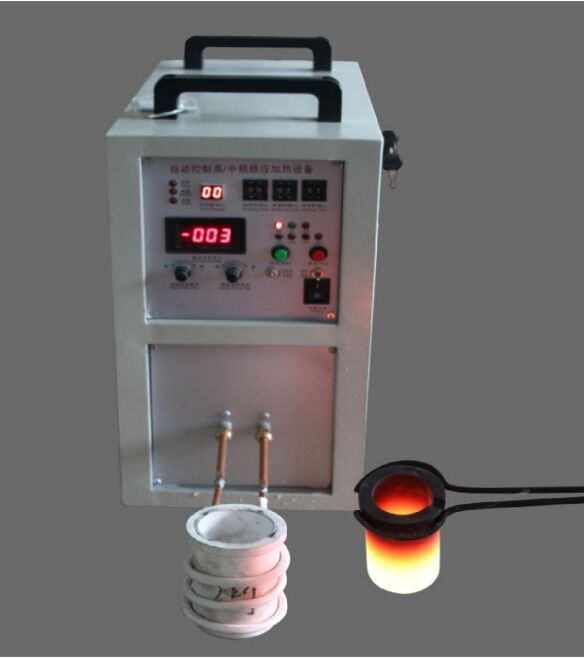

DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace
DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace
DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace

loading

DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace

Share to:
sharethis sharing button
Imput voltage(V):Single phase 220V
Power(KW):5KW
Melting precious metal weight(KG):8
Melting time(Minutes):≤3
  • DH-TG-35AB

  • Dahometer

  • 1 set

  • 5-7 days

  • 1 years,Lifelong maintenance

  • T/T, Western Union,PayPal,Payoneer

Availability:
Quantity:

DH-TG-35AB Mini Gold Melting Induction Furnace, Excellent Quality Metals Melting Furnace


Working Principle:

The power supply adopts the all-solid-state Siemens IGBT frequency conversion module technology. After the induction heating device outputs a strong variable frequency current, a strong magnetic field is generated through the induction coil. Under the action of the magnetic field, a vortex current is formed on the surface of the heated workpiece, thereby rapidly heating the workpiece.


Main Feature:

1.Fast heating: the fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.

2. Energy saving and environmental protection: The thermal efficiency is over 95%, which is a perfect substitute for thyristor, gas, B, coke and electric furnace.

3. Machine safety is reliable: over-current, phase loss, water shortage, over voltage, short circuit, overheat protection, greatly improving the reliability of the equipment.

4. Small footprint: less than 1 square meter, light weight and easy to move.

5. The machine is easy to install and operate, just need to connect water and electricity.

6. It has electromagnetic stirring function to make the melt more uniform, which is beneficial to scumming, reducing impurities, making the melt or casting more bright without shrinkage and shrinkage.

7. Mainly for metals: platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold ash, gold sand, electrolytic mud, gold and silver powder and other metals.


Specification:

Model

Portable type

Cabinet type

Parameter

DH-TG-15A

DH-TG-25A

DH-TG-35AB

DH-TG-15A

DH-TG-25A

DH-TG-35AB

Imput voltage(V)

Single phase 220V

Three phase 380V

Three phase 380V

Single phase 220V

Three phase 380V

Three phase 380V

Power(KW)

5KW

5KW

10KW

5KW

5KW

10KW

Melting precious metal weight(KG)

2

4

8

2

4

8

Melting time(Minutes)

≤3

≤5

≤5

≤3

≤5

≤5

Host dimension(CM)

49*24*48

59*26*48

59*26*48

50*50*100

Weight (KG)

20

28

35

75

85

85
