DY-100CT
Dohometer
1 SET
In stock
1 year
TT/Western Union/Paypal etc
negotiable
Availability: | |
---|---|
Quantity: | |

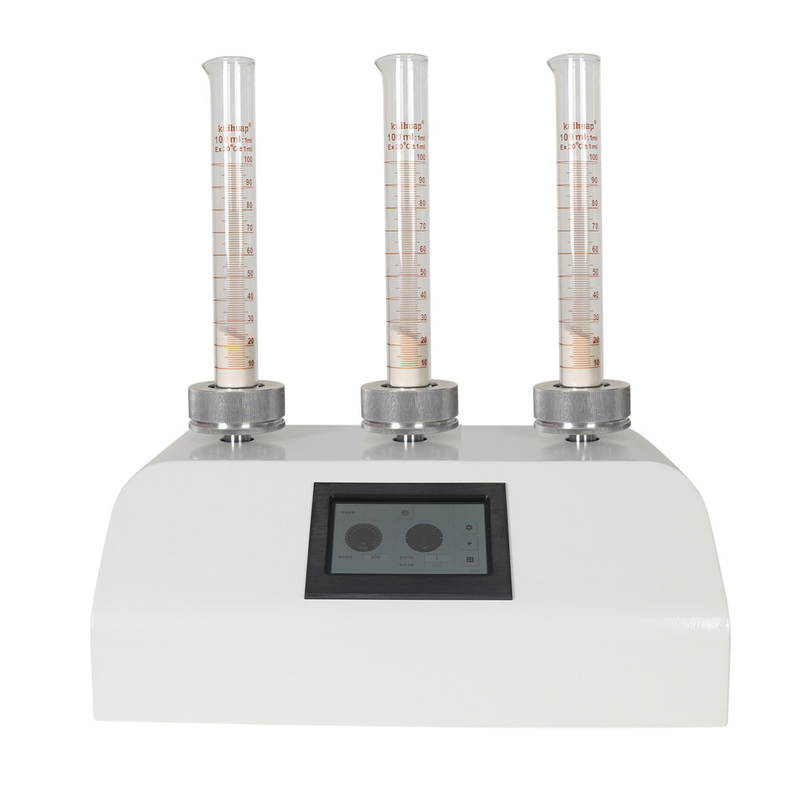

DY-100CT Lab Scientific Research Tap Density Measuring Equipment Metal Powder Tap Density Measurement Device
Fields of application:
Metal powder, non-metal powder, pharmaceutical, chemical, new energy, new materials,scientific
research and teaching and other field.
Complies with:
EP 7.0 2.9.34 tapped density of powders;
USP32-NF27<616> TAPPED DENSITY OF POWDERS
Features:
1)4.3-inch touch screen, provides a more convenient, simple and natural way of human-computer interaction;
2)uses a long-life, high-reliability motor component with excellent start-stop response capability;
3)uses a 32-bit embedded RISC microprocessor with low cost, high performance, and low power consumption;
4)For the application scenarios of test instruments, a customized embedded operating system is used to make the system have stronger stability and software expansion capabilities;
5)A lightweight, resource-intensive, high-performance, highly reliable, configurable and beautiful GUI (human-computer interface) is used to improve the user experience;
6)Built-in micro receipt printer;
7)The measurement results are accurate to 3 decimal places;
Excellent network connectivity, which can support remote software upgrades and 8)customization needs;
9)supports the generation and download of electronic reports, and supports Excel and PDF formats.
Supported test station(s):One,two,three
Tapped frequency:0 ~ 300 rotations/minute
Tapping method:Rotation during tapping down
Drop height:3mm, 14m
Voltage:110/220V 50/60Hz
Graduated cylinder volume:250mL
Repeatability error:≤ 1%
Built-in printer:
paper width:58 mm
Paper warehouse:≤ 30 mm
Roll length:9.42 m
printing speed:60 mm/s
DY-100CT Lab Scientific Research Tap Density Measuring Equipment Metal Powder Tap Density Measurement Device
Fields of application:
Metal powder, non-metal powder, pharmaceutical, chemical, new energy, new materials,scientific
research and teaching and other field.
Complies with:
EP 7.0 2.9.34 tapped density of powders;
USP32-NF27<616> TAPPED DENSITY OF POWDERS
Features:
1)4.3-inch touch screen, provides a more convenient, simple and natural way of human-computer interaction;
2)uses a long-life, high-reliability motor component with excellent start-stop response capability;
3)uses a 32-bit embedded RISC microprocessor with low cost, high performance, and low power consumption;
4)For the application scenarios of test instruments, a customized embedded operating system is used to make the system have stronger stability and software expansion capabilities;
5)A lightweight, resource-intensive, high-performance, highly reliable, configurable and beautiful GUI (human-computer interface) is used to improve the user experience;
6)Built-in micro receipt printer;
7)The measurement results are accurate to 3 decimal places;
Excellent network connectivity, which can support remote software upgrades and 8)customization needs;
9)supports the generation and download of electronic reports, and supports Excel and PDF formats.
Supported test station(s):One,two,three
Tapped frequency:0 ~ 300 rotations/minute
Tapping method:Rotation during tapping down
Drop height:3mm, 14m
Voltage:110/220V 50/60Hz
Graduated cylinder volume:250mL
Repeatability error:≤ 1%
Built-in printer:
paper width:58 mm
Paper warehouse:≤ 30 mm
Roll length:9.42 m
printing speed:60 mm/s
Guangdong Hongtuo Instrument Technology Co.,Ltd has been specializing in density testing field on developing, innovating and producing since the year it was establised.
