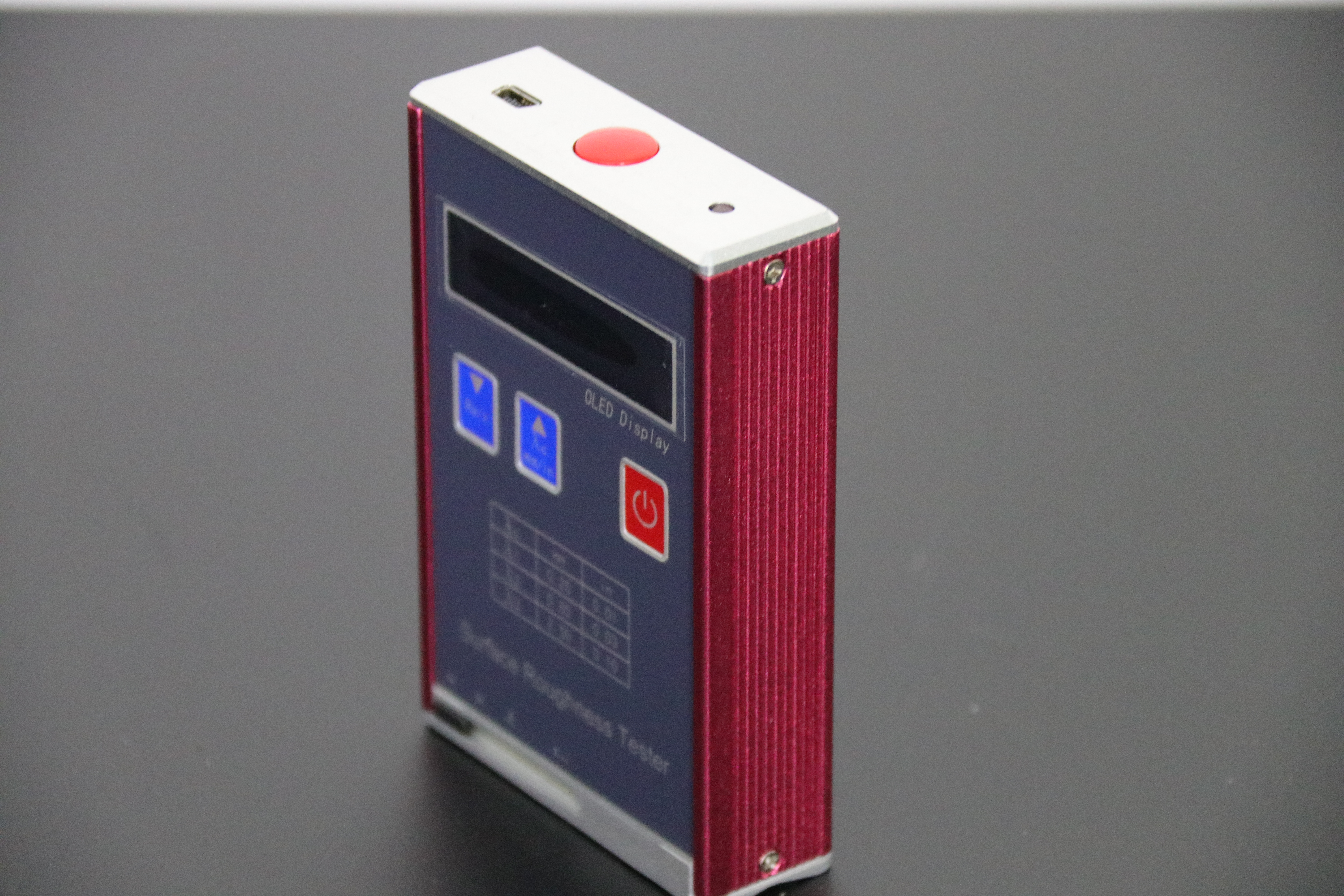

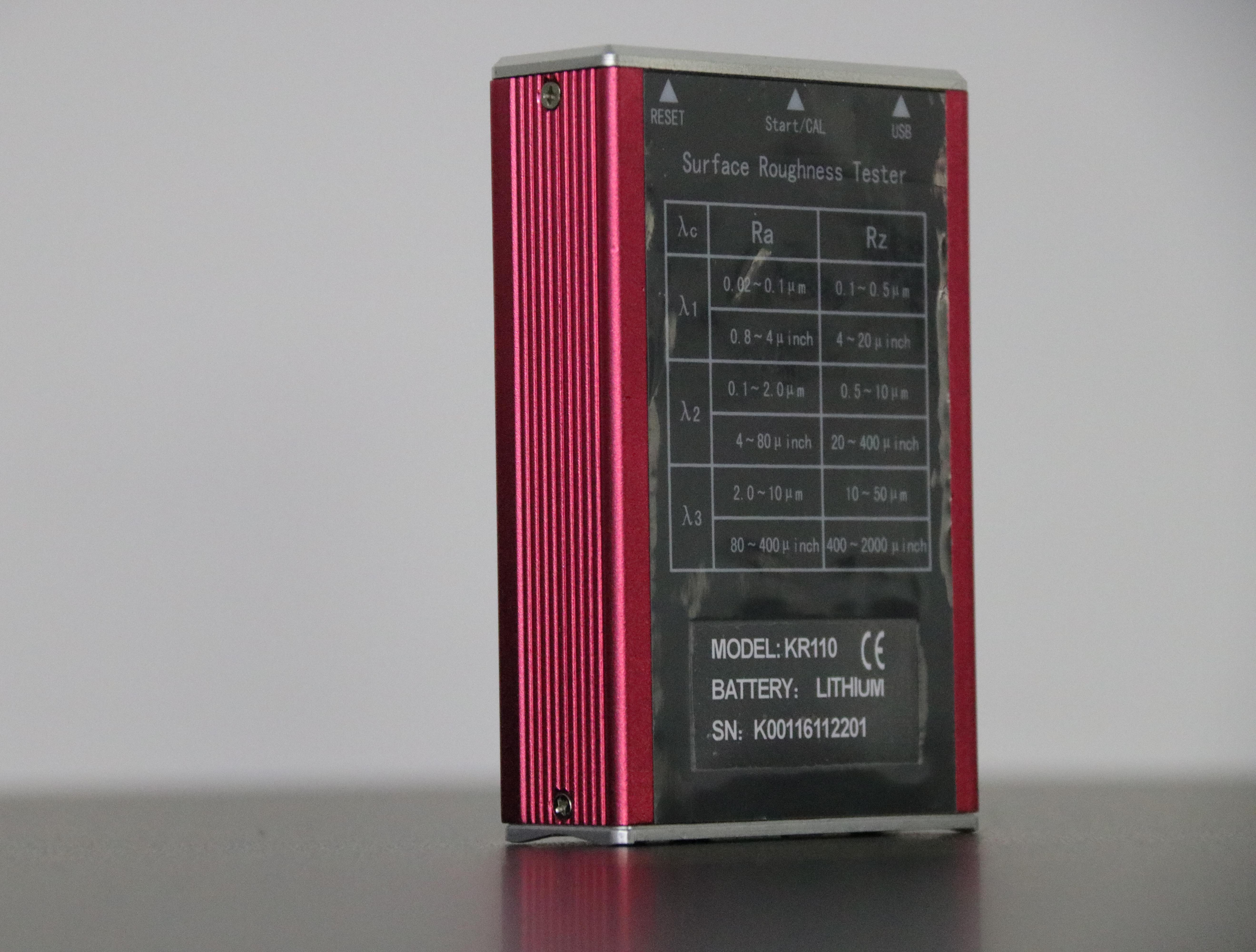

KR110 Surface Roughness Tester, Surface Roughness Measuring Instrument, Mobile Handheld Instrument
TECHNICAL DATA
4 Testing Parameters | Ra, Rz, Rq, Rt; |
Measuring Range | Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm |
Sample Length | 0.25, 0.80, 2.50mm |
Evaluation Length | 1.25, 4.0, 5.0mm |
Stroke Length | 6mm |
Indication Accuracy | 0.01μm |
Indication Error | ≤(±15)% |
Variability | <12% |
Stylus Static Force: | ≤ 0.016N |
Force Measuring Rate of Change | ≤ 800N/m |
Power | Rechargeable Li-battery |
Relative Humidity | <90% |
Working Temperature | -20°C~40°C |
Size | 106mmx70mmx24mm |
Weight of Host | 0.2kg |
MAIN FEATURE
*Ra, Rz, Rq, Rt 4 testing parameters, suitable for more applications.
*It could test ex-circle, flat surface, conical surface and also test groove larger than 80*30mm;
*Large measuring range suitable for most materials, both metal and non-metallic surface;
*Using high-speed DSP processor for data processing and calculation, quick measurement and computation speed;
*Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly;
*Liquid crystal display wide temperature using OLED display, high brightness, suitable for various occasions;
*The lithium ion rechargeable battery, can work for a long time, no memory effect, long battery life;
* Using a dedicated charger or computer USB port for charging, can work during charging, quick and convenient;
*Real-time monitoring of lithium battery power and display, remind users to charge;
*Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use;
*Support OEM Service;
*Pocket-size & economically price;

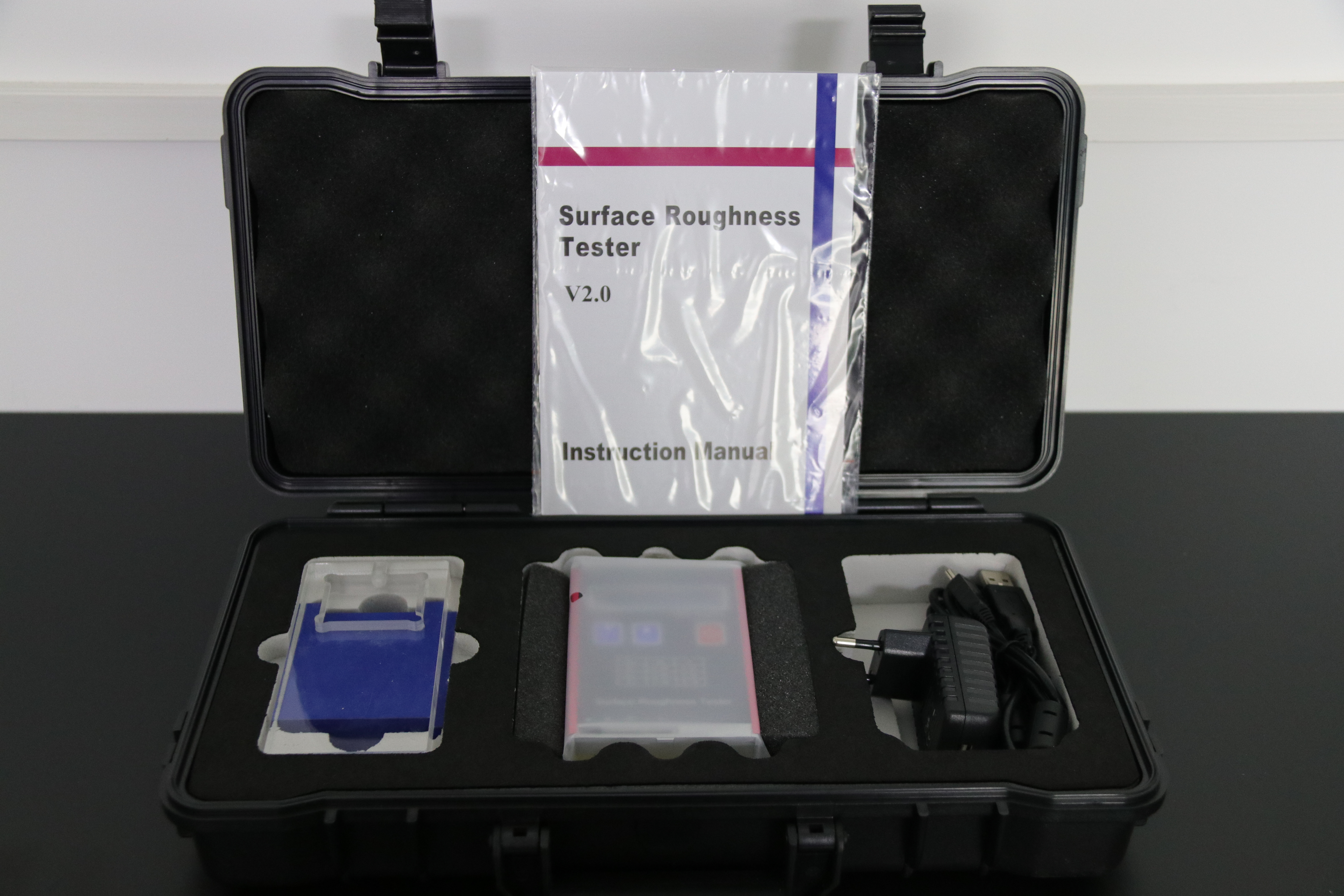

STANDARD DELIVERY
ITEM | QTY |
KR110 Host | 1 PC |
Standard Calibration Block | 1 PC |
Bracket for Calibration Block | 1 PC |
Power Charger | 1 PC |
Charging Cable | 1 PC |
User Manual | 1 PC |
Instrument Case | 1 PC |
Warranty | 2 Years |
RELATED OPTIONAL ITEMS
Description | |
| Standard Roughness Calibration Block Multi-engraved lines (Square Wave) Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um Customized Value and Sine Wave available, welcome to inquire. |
| Standard Roughness Calibration Block Single engraved lines Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um） Customized Value available, welcome to inquire. |
| Roughness Comparator (30 pcs/set) This set contains standards of the six most important machining methods in the prevalent "AA" values. These surface roughness is used to compare and determine the degree of the surface finish by comparision method and eye estimation or magnifying glass.The surface rough contast blocks is made of 45 super carbor steel except the GCr15 which is using to plat lapping the sample block. All 30 speciments are calibrated in u''AA (Arithmetical Average) and in the metric equivalents um Ra. |
| Charger and Cable for Surface Roughness Tester Charger: US and EU standard optional Cable: USB interface |
| Fixture: the roughness tester combination with fixture to measure shaft 3mm |
