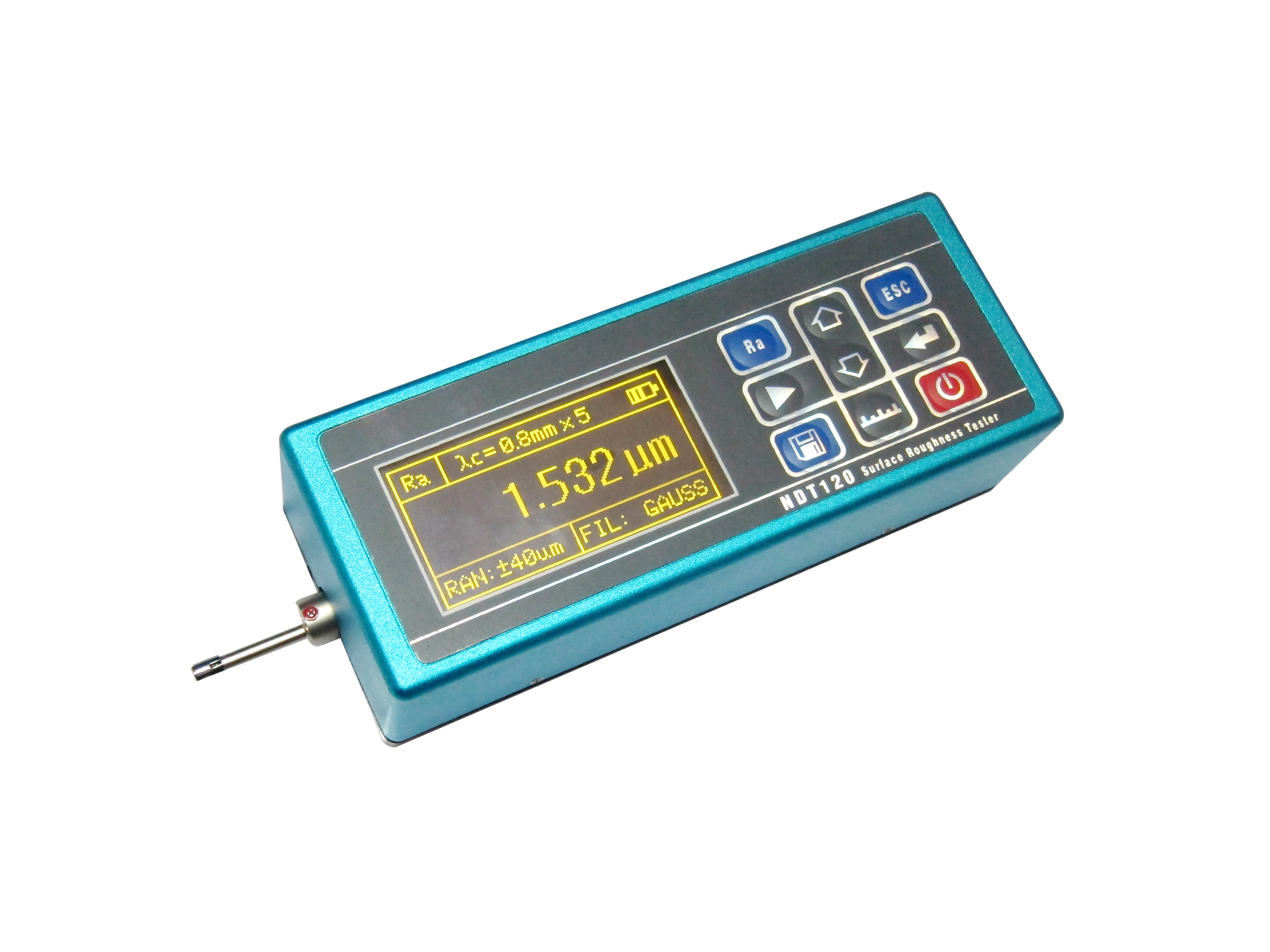

KR210 Surface Roughness Tester, Electromechanical Integration Design Surface Roughness Measuring Instrument
TECHNICAL DATA
20 Testing Parameters | Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,RzJIS,Rsk,Rku,Rsm,Rmr,Rx,RPc,Rk,Rpk,Rvk,Mr1,Mr2 |
Measuring Range | Ra: 0.005~16.000μm Rz: 0.02~160.00μm |
Sample Length | 0.25, 0.80, 2.50mm |
Evaluation Length | (1~5)L |
Maximum Drive Stroke | 17.5mm/0.7inch |
Indication Accuracy | 0.001μm |
Indication Error | ≤(±10)% |
Variability | <6% |
Data Storage | 100 groups |
Power | Rechargeable Li-battery |
Relative Humidity | <90% |
Working Temperature | -20°C~40°C |
Size | 141x55x40mm |
Weight of Host | 0.4kg |

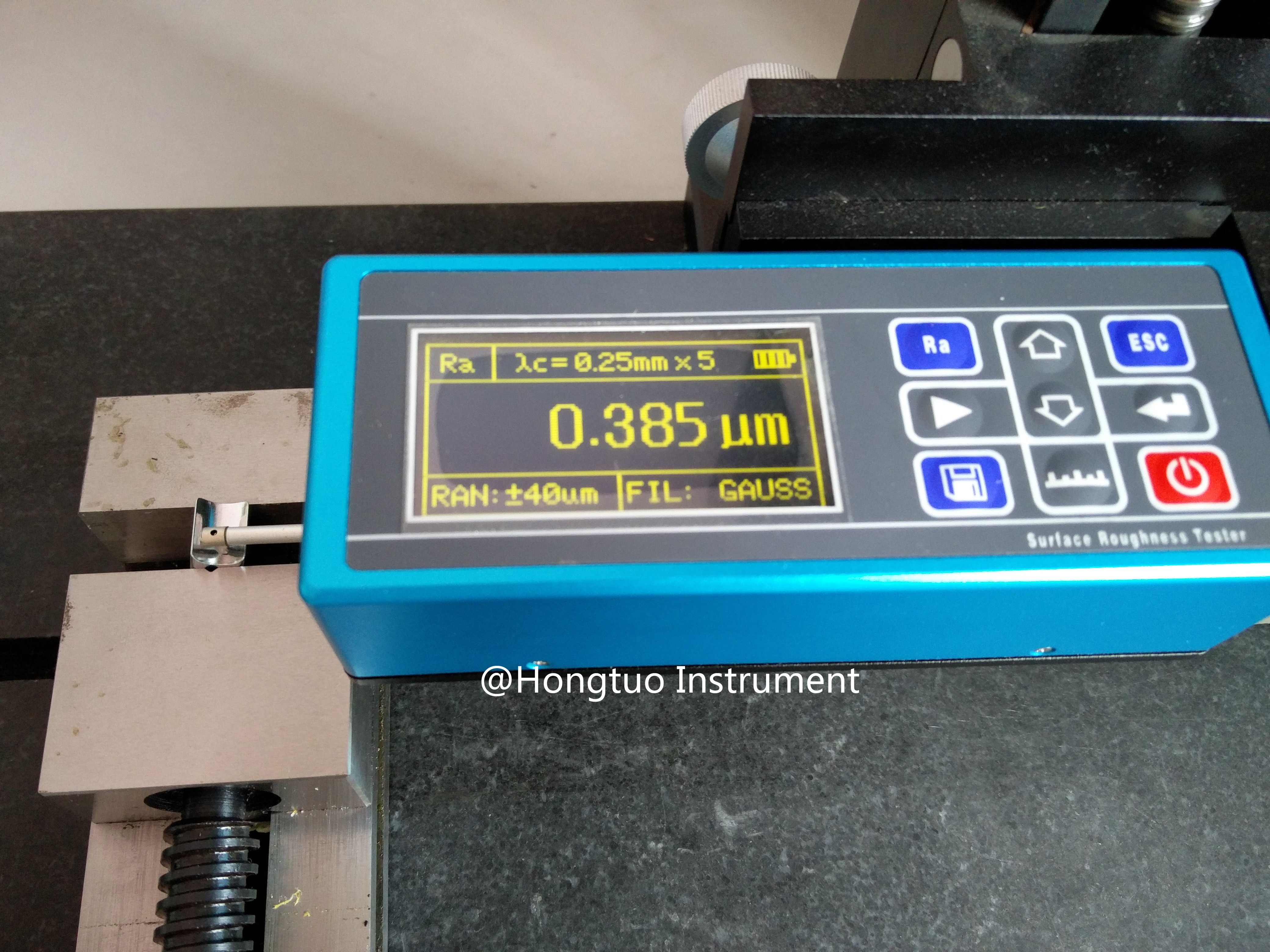

MAIN FEATURE
*Full metal shell design, sturdy, compact, portable, high reliability.
*Visual waveform display;
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours;
*Real-time clock settings and display, convenient data recording and storage;
*With automatic dormancy, automatic shutdown and power saving function;
*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
*With PC software, can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
*Support OEM Service, High price performance.
STANDARD DELIVERY
Item | QTY |

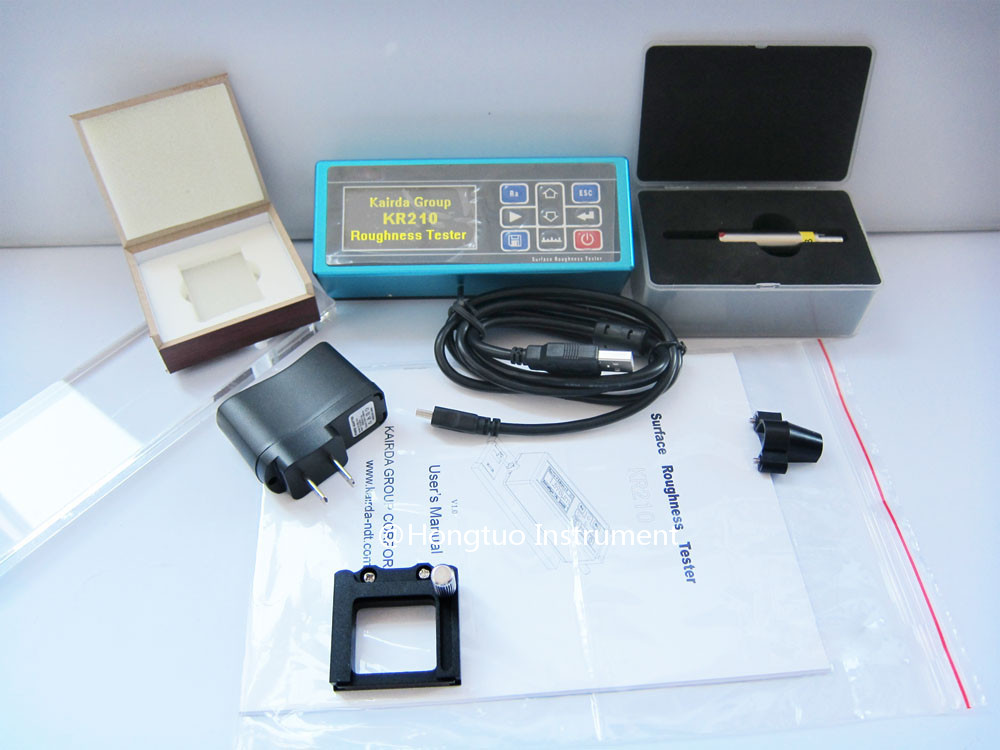

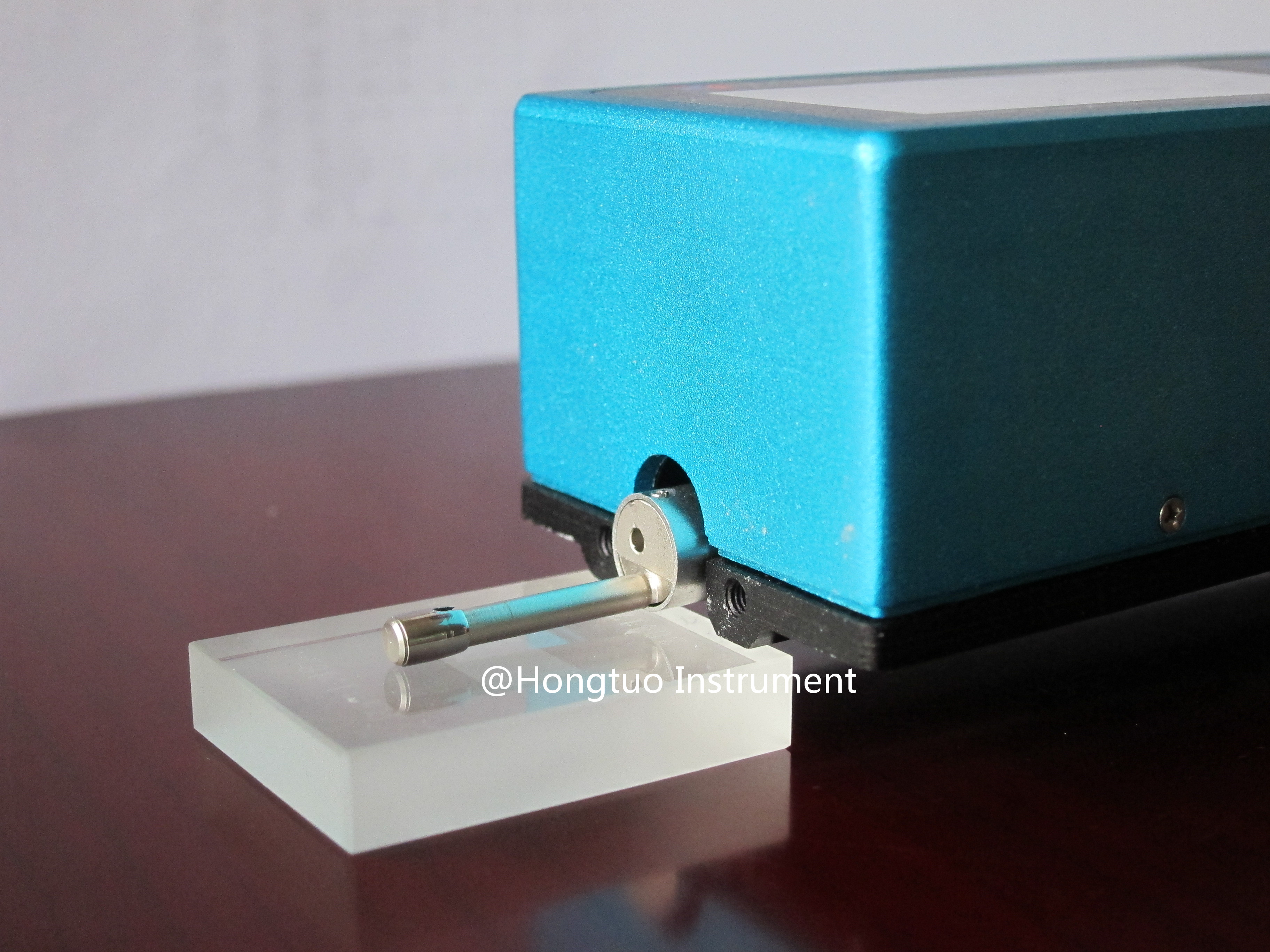

KR210 Host | 1 PC |
Standard Sensor KS100 | 1 PC |
Standard Calibration Block | 1 PC |
Bracket for Calibration Block | 1 PC |
Adjustable support | 1 PC |
Power Charger | 1 PC |
USB Cable | 1 PC |
PC Software | 1 PC |
User Manual | 1 PC |
Instrument Case | 1 PC |
Warranty | 2 Years |
RELATED OPTIONAL ITEMS

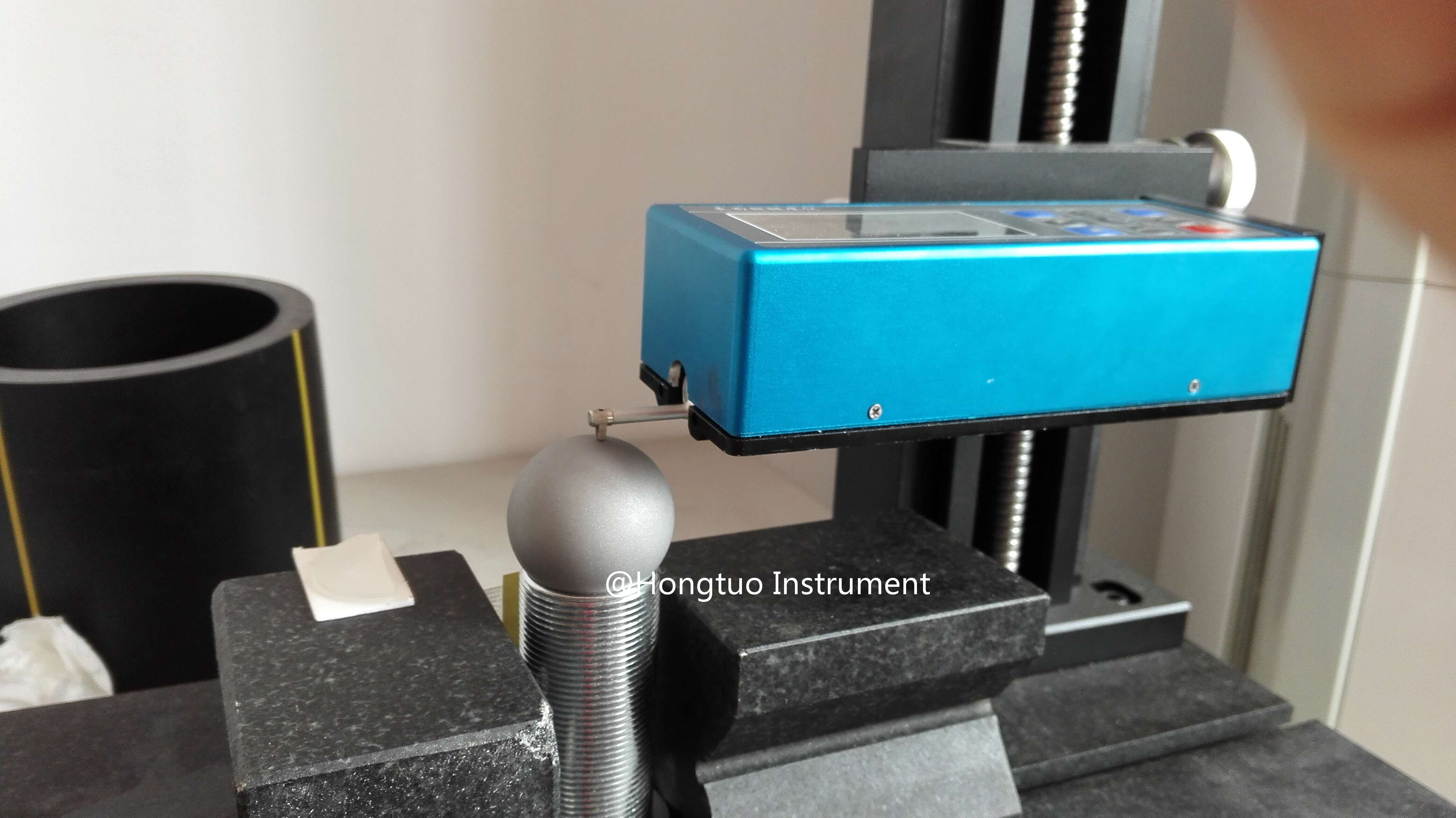

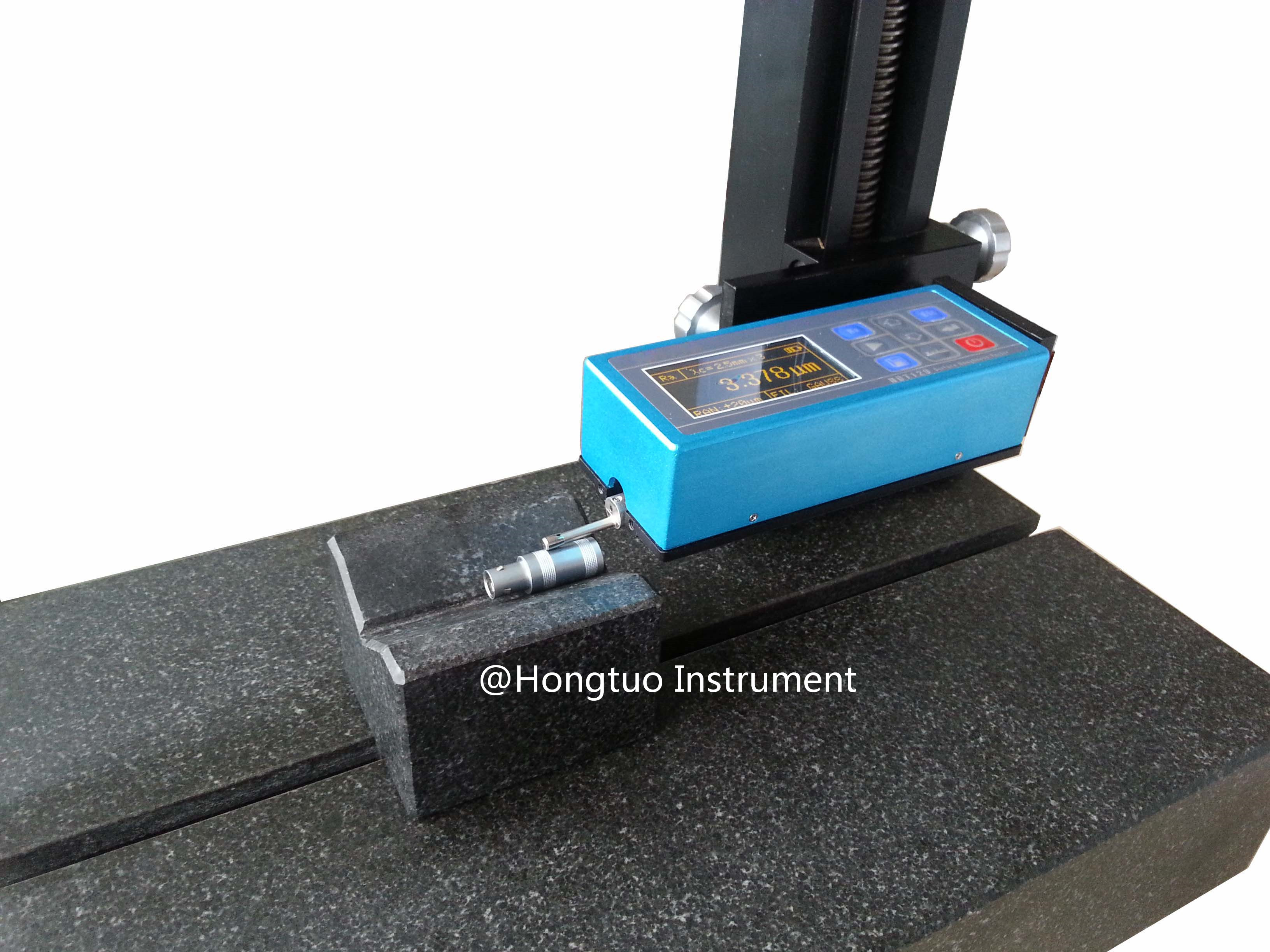

Description | |
| KS55 - Extending Rod, extending rod increases the depth for pickup to enter the part. Length of extending rod is 50mm. |
| KS90 - Right Angle Rod, change the position of the sensor, mostly use for measure surface of particular groove. |
| KS100 - Standard Sensor, to measure most of the plane, inclined plane, cone surface, inner hole, groove and other surface roughness, in addition to the standard sensor, other special sensors are needed to measure the measuring platform. |
| KS110 - Curved Surface Sensor, to measure smooth cylindrical surface which radius is larger than 3mm, for the large radius smooth spherical surface and other surface also can obtain good approximation, need to work with platform KA520 or KA620. |
| KS120 - Small hole Sensor, to measure the inner surfaces of holes with radius more than 2mm, better to work with platform KA520 or KA620. |
| KS131 - Deep Groove Sensor, measure groove with width wider than 3mm and depth deeper than 10mm, or the surface roughness of step with height less than 10mm, also can used to measure the planar, cylindrical used with platform,better to work with platform KA520 or KA620. |
| KA520 -Metal Substrate Working platform, adjustable height 200mm. With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended. |
| KA620 -Marble Substrate Working Platform, adjustable height 300mm. With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended. |
| Standard Roughness Calibration Block Multi-engraved lines (Square Wave) Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um Customized Value and Sine Wave available, welcome to inquire. |
| Standard Roughness Calibration Block Single engraved lines Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um） Customized Value available, welcome to inquire. |
| Roughness Comparator (30 pcs/set) This set contains standards of the six most important machining methods in the prevalent "AA" values. These surface roughness is used to compare and determine the degree of the surface finish by comparision method and eye estimation or magnifying glass.The surface rough contast blocks is made of 45 super carbor steel except the GCr15 which is using to plat lapping the sample block. All 30 speciments are calibrated in u''AA (Arithmetical Average) and in the metric equivalents um Ra. |
| Charge and Cable for Surface Roughness Tester Charger: US and EU standard optional Cable: USB interface |
| Mini thermal printer External printer, connect by USB interface, suitable for Kairda models. |
| Thermal printing paper Suitable for mini thermal printer and Kaidas’s tester with built-in printer Packing: 10pcs/bag |
KR210 Surface Roughness Tester, Electromechanical Integration Design Surface Roughness Measuring Instrument
TECHNICAL DATA
20 Testing Parameters | Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,RzJIS,Rsk,Rku,Rsm,Rmr,Rx,RPc,Rk,Rpk,Rvk,Mr1,Mr2 |
Measuring Range | Ra: 0.005~16.000μm Rz: 0.02~160.00μm |
Sample Length | 0.25, 0.80, 2.50mm |
Evaluation Length | (1~5)L |
Maximum Drive Stroke | 17.5mm/0.7inch |
Indication Accuracy | 0.001μm |
Indication Error | ≤(±10)% |
Variability | <6% |
Data Storage | 100 groups |
Power | Rechargeable Li-battery |
Relative Humidity | <90% |
Working Temperature | -20°C~40°C |
Size | 141x55x40mm |
Weight of Host | 0.4kg |
MAIN FEATURE
*Full metal shell design, sturdy, compact, portable, high reliability.
*Visual waveform display;
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours;
*Real-time clock settings and display, convenient data recording and storage;
*With automatic dormancy, automatic shutdown and power saving function;
*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
*With PC software, can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
*Support OEM Service, High price performance.
STANDARD DELIVERY
Item | QTY |
KR210 Host | 1 PC |
Standard Sensor KS100 | 1 PC |
Standard Calibration Block | 1 PC |
Bracket for Calibration Block | 1 PC |
Adjustable support | 1 PC |
Power Charger | 1 PC |
USB Cable | 1 PC |
PC Software | 1 PC |
User Manual | 1 PC |
Instrument Case | 1 PC |
Warranty | 2 Years |
RELATED OPTIONAL ITEMS
Description | |
| KS55 - Extending Rod, extending rod increases the depth for pickup to enter the part. Length of extending rod is 50mm. |
| KS90 - Right Angle Rod, change the position of the sensor, mostly use for measure surface of particular groove. |
| KS100 - Standard Sensor, to measure most of the plane, inclined plane, cone surface, inner hole, groove and other surface roughness, in addition to the standard sensor, other special sensors are needed to measure the measuring platform. |
| KS110 - Curved Surface Sensor, to measure smooth cylindrical surface which radius is larger than 3mm, for the large radius smooth spherical surface and other surface also can obtain good approximation, need to work with platform KA520 or KA620. |
| KS120 - Small hole Sensor, to measure the inner surfaces of holes with radius more than 2mm, better to work with platform KA520 or KA620. |
| KS131 - Deep Groove Sensor, measure groove with width wider than 3mm and depth deeper than 10mm, or the surface roughness of step with height less than 10mm, also can used to measure the planar, cylindrical used with platform,better to work with platform KA520 or KA620. |
| KA520 -Metal Substrate Working platform, adjustable height 200mm. With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended. |
| KA620 -Marble Substrate Working Platform, adjustable height 300mm. With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended. |
| Standard Roughness Calibration Block Multi-engraved lines (Square Wave) Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um Customized Value and Sine Wave available, welcome to inquire. |
| Standard Roughness Calibration Block Single engraved lines Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um） Customized Value available, welcome to inquire. |
| Roughness Comparator (30 pcs/set) This set contains standards of the six most important machining methods in the prevalent "AA" values. These surface roughness is used to compare and determine the degree of the surface finish by comparision method and eye estimation or magnifying glass.The surface rough contast blocks is made of 45 super carbor steel except the GCr15 which is using to plat lapping the sample block. All 30 speciments are calibrated in u''AA (Arithmetical Average) and in the metric equivalents um Ra. |
| Charge and Cable for Surface Roughness Tester Charger: US and EU standard optional Cable: USB interface |
| Mini thermal printer External printer, connect by USB interface, suitable for Kairda models. |
| Thermal printing paper Suitable for mini thermal printer and Kaidas’s tester with built-in printer Packing: 10pcs/bag |
