Computerized Wire Material Torsion Testing Machine/Equipment

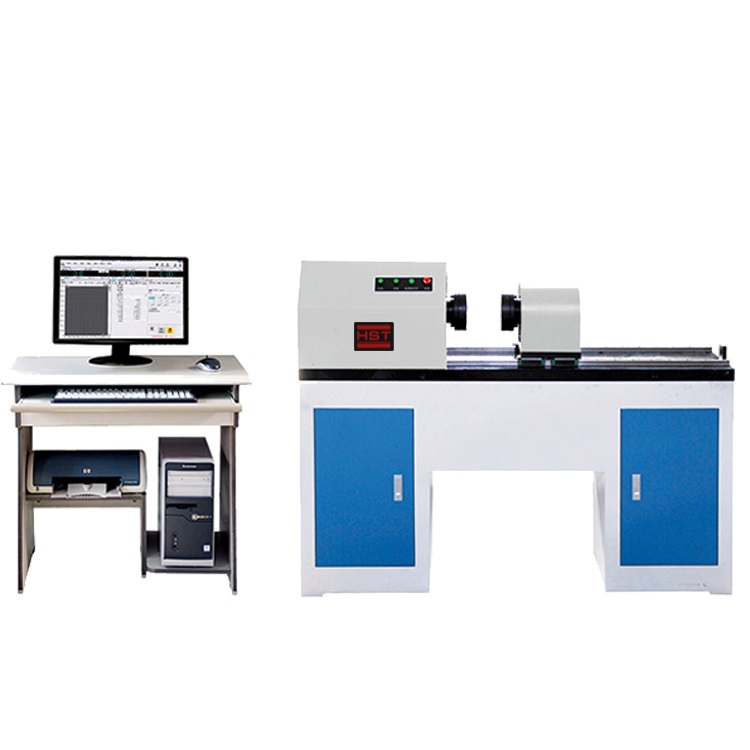

NDW -100 Computerized Wire Material Torsion Measuring Equipment Computerized Material Torsion Testing Machine

The Accuracy Of Torque Values：≤±1%
Machine Level：1 Class
Torsion Angle Measurement Range：2%-100%FS
Torque Display Resolution：1/20000

Model:
NDW -100
Brand:
Dahometer
Minimum Order Quantity:
one set
Delivery Time:
7 days
Warranty :
1 year,Lifelong maintenance
Payment Terms:
T/T, Visa,PayPal,Western Union
Price:
Negotiable

Availability:

Quantity:



Inquire Add to Basket

Product Description

NDW -100 Computerized Wire Material Torsion Measuring Equipment Computerized Material Torsion Testing Machine

1.Application:

It is mainly used for the torsion test of metal and nonmetal materials, as well as the torsion test for parts and components.

It is an essential instrument to measure torsion properties of materials for mechanics laboratories of aviation industry, construction industry, scientific research dept, universities and industrial enterprises etc.

2.Technical Parameter:

Model	NDW -100	NDW -200	NDW -500	NDW -1000	NDW -2000	NDW -3000	NDW -5000	NDW -10000
Max. Torque (N/m)	100	200	500	1000	2000	3000	5000	10000
Machine Level	1 Class
Torsion Angle Measurement Range	2%-100%FS
Control Method	Constant Torque And Constant Speed Rotation, Constant Speed Twist Angle Of The Closed Loop Control Mode
Torque Display Resolution	1/20000
The Accuracy Of Torque Values	≤±1%
The Accuracy Of Torsion Angle Value	Better Than±0.5%
Torsion Angle Display Resolution	1/20000
The Accuracy Of Angle Values	≤±1%
Angle Display Resolution	0.01°
Torsional Angular Rate Control Range	0.05-800°/min
Max. Reading Of Torsion Angel	99999°
Max. Distance Between Two Collets	600mm
Power Supply	220V±10%, 50Hz

3.Features:

This machine uses PC-controlled AC servo system and is loaded through the active clamping head driven by the AC servo motor and cycloidal pinwheel reduction motor.

The torque and torsion angle are measured with high-precision torque transducer and photoelectric encoder. Computer will dynamically display the test torsion curve, loading speed, peak value, and so on.
