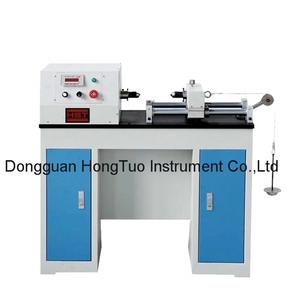

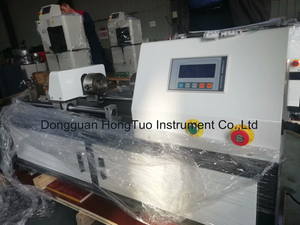

EZ-10 ElectronicTorsion Testing Machine EZ Series Wire Torsion Testing Machine Professional Torsion Testing Instrument
1.Application:
It is mainly used for diameter 0.2~20mm metal wire torsion testing.
The function is determine metal wire to withstand severe plastic deformation in one-way or two-way reversed ability and display of wire surface and inner defect.It is a reliable measure instrument for producing and using wire units.
2.Technical Specifications:
Model | EZ-3 | EZ-10 | EZ-20 |
Range Of Specimen Diameter | 0.2-3 mm | 1-10 mm | 3-20 mm |
Length Of Clamping Wire | 0-320 mm | 50-520 mm | |
Test Speed | 0-180 r/min | 0-60 r/min | |
Two Chuck Coaxiality | <0.4 mm | ||
Parallel Degree | <0.2 mm | ||
Jaw Hardnss | HRC55-64 | ||
Power Supply | AC220V±10%,50Hz | ||
EZ-10 ElectronicTorsion Testing Machine EZ Series Wire Torsion Testing Machine Professional Torsion Testing Instrument
1.Application:
It is mainly used for diameter 0.2~20mm metal wire torsion testing.
The function is determine metal wire to withstand severe plastic deformation in one-way or two-way reversed ability and display of wire surface and inner defect.It is a reliable measure instrument for producing and using wire units.
2.Technical Specifications:
Model | EZ-3 | EZ-10 | EZ-20 |
Range Of Specimen Diameter | 0.2-3 mm | 1-10 mm | 3-20 mm |
Length Of Clamping Wire | 0-320 mm | 50-520 mm | |
Test Speed | 0-180 r/min | 0-60 r/min | |
Two Chuck Coaxiality | <0.4 mm | ||
Parallel Degree | <0.2 mm | ||
Jaw Hardnss | HRC55-64 | ||
Power Supply | AC220V±10%,50Hz | ||
