NDW -200
Dahometer
one set
7 days
1 year,Lifelong maintenance
T/T, Visa,PayPal,Western Union
Negotiable
Availability: | |
---|---|
Quantity: | |

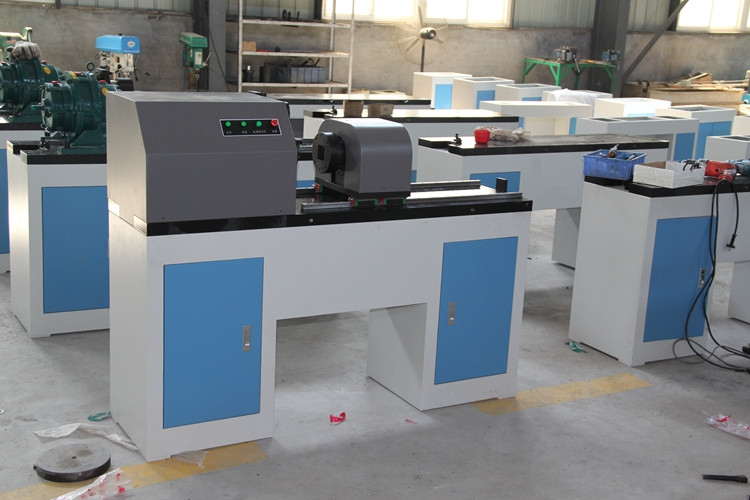

NDW -200 PC-controlled Wire Material Torsion Testing Machine High-precision Torsion Properties Measuring Equipment
1.Application:
It is mainly used for the torsion test of metal and nonmetal materials, as well as the torsion test for parts and components.
It is an essential instrument to measure torsion properties of materials for mechanics laboratories of aviation industry, construction industry, scientific research dept, universities and industrial enterprises etc.
2.Technical Parameter:
Model | NDW -100 | NDW -200 | NDW -500 | NDW -1000 | NDW -2000 | NDW -3000 | NDW -5000 | NDW -10000 |
Max. Torque (N/m) | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
Machine Level | 1 Class | |||||||
Torsion Angle Measurement Range | 2%-100%FS | |||||||
Control Method | Constant Torque And Constant Speed Rotation, Constant Speed Twist Angle Of The Closed Loop Control Mode | |||||||
Torque Display Resolution | 1/20000 | |||||||
The Accuracy Of Torque Values | ≤±1% | |||||||
The Accuracy Of Torsion Angle Value | Better Than±0.5% | |||||||
Torsion Angle Display Resolution | 1/20000 | |||||||
The Accuracy Of Angle Values | ≤±1% | |||||||
Angle Display Resolution | 0.01° | |||||||
Torsional Angular Rate Control Range | 0.05-800°/min | |||||||
Max. Reading Of Torsion Angel | 99999° | |||||||
Max. Distance Between Two Collets | 600mm | |||||||
Power Supply | 220V±10%, 50Hz |
3.Features:

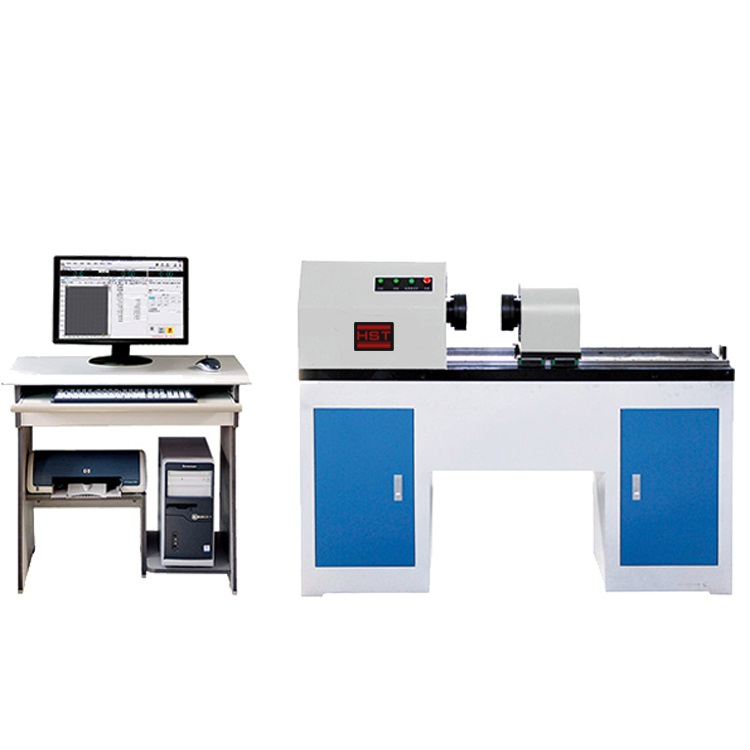

This machine uses PC-controlled AC servo system and is loaded through the active clamping head driven by the AC servo motor and cycloidal pinwheel reduction motor.
The torque and torsion angle are measured with high-precision torque transducer and photoelectric encoder. Computer will dynamically display the test torsion curve, loading speed, peak value, and so on.
NDW -200 PC-controlled Wire Material Torsion Testing Machine High-precision Torsion Properties Measuring Equipment
1.Application:
It is mainly used for the torsion test of metal and nonmetal materials, as well as the torsion test for parts and components.
It is an essential instrument to measure torsion properties of materials for mechanics laboratories of aviation industry, construction industry, scientific research dept, universities and industrial enterprises etc.
2.Technical Parameter:
Model | NDW -100 | NDW -200 | NDW -500 | NDW -1000 | NDW -2000 | NDW -3000 | NDW -5000 | NDW -10000 |
Max. Torque (N/m) | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
Machine Level | 1 Class | |||||||
Torsion Angle Measurement Range | 2%-100%FS | |||||||
Control Method | Constant Torque And Constant Speed Rotation, Constant Speed Twist Angle Of The Closed Loop Control Mode | |||||||
Torque Display Resolution | 1/20000 | |||||||
The Accuracy Of Torque Values | ≤±1% | |||||||
The Accuracy Of Torsion Angle Value | Better Than±0.5% | |||||||
Torsion Angle Display Resolution | 1/20000 | |||||||
The Accuracy Of Angle Values | ≤±1% | |||||||
Angle Display Resolution | 0.01° | |||||||
Torsional Angular Rate Control Range | 0.05-800°/min | |||||||
Max. Reading Of Torsion Angel | 99999° | |||||||
Max. Distance Between Two Collets | 600mm | |||||||
Power Supply | 220V±10%, 50Hz |
3.Features:
This machine uses PC-controlled AC servo system and is loaded through the active clamping head driven by the AC servo motor and cycloidal pinwheel reduction motor.
The torque and torsion angle are measured with high-precision torque transducer and photoelectric encoder. Computer will dynamically display the test torsion curve, loading speed, peak value, and so on.
Guangdong Hongtuo Instrument Technology Co.,Ltd has been specializing in density testing field on developing, innovating and producing since the year it was establised.
