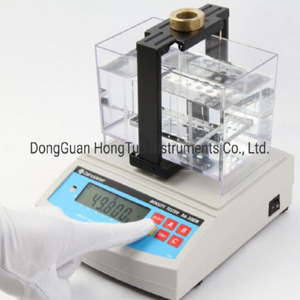

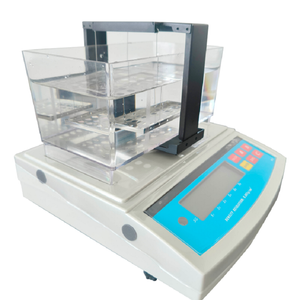

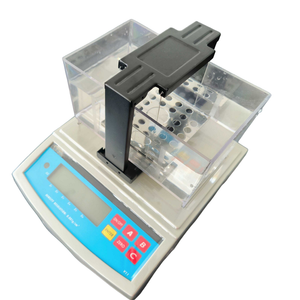

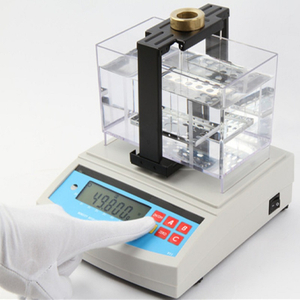

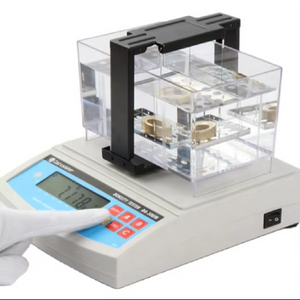

Portable Gold Purity Tester Archimedes Principle Gold Density Tester For Bank
Function introduction:
1. Directly read the purity of gold and measure the density (specific gravity) of other metals. After the test, your gold will not leave any stains or scratches;
2. It only takes 10 seconds to accurately measure the K number and density of gold, and the Pt value and density of platinum;
3. Easy to operate, to determine the density of precious metals (specific gravity) and gold k number/platinum PT value, only need to weigh twice, just put the sample into the water, the internal software of the instrument will automatically calculate;
4. According to market demand, through special software design, users can set the upper and lower limits of K number and Pt value by themselves. When the test gold K number is greater than 24K, the instrument will display HI; when it is less than 12K, it will display LO. Identify the authenticity of gold in a more intuitive and faster way;
5. According to the ratio of copper and silver in gold, the ratio of copper and silver can be set to compensate for the parameter value;
6. It adopts a one-piece transparent large sink (size: 15cm×10cm×9cm). The sink is molded with special materials, which is not only wear-resistant and corrosion-resistant, but also not easy to break. It is also very beautiful and can be greatly convenient for users. use;
7. Lightweight, thin, stainless steel hanging railing design is adopted, which can greatly reduce the error caused by the buoyancy of the hanging railing;
8. It can test other precious metals, such as silver, copper, tin, etc.; it can also be used as a precision electronic balance.
9. Only applicable to solid metal parts, and the solid metal parts are not equipped with gems;
10. With RS-232C communication interface, it is convenient to connect PC and printer, and DE-40 printer can be used to print measurement data
Specification table:
Model | DH-300K | DH-600K | DH-900K | DH-1200K | DA-300K | DA-600K | DA-900K | DA-1200K | DE- 120K | DE-200K | |
Maximum weight | 300g | 600g | 900g | 1200g | 300g | 600g | 900g | 1200g | 120g | 200g | |
Weight resolution | 0.005g | 0.005g | 0.01g | 0.01g | 0.005g | 0.005g | 0.01g | 0.01g | 0.001g | 0.001g | |
Density resolution | 0.001g/cm3 | ||||||||||
Measuring time | 10S | ||||||||||
Testing board | Completed high-capacity plastic testing board | ||||||||||
Measuring type | Traditional gold and platinum jewelry,necklace,bracelet,ring,large bullion,craft,and gold,silver,copper,cadmium,nickel,tin.etc. | ||||||||||
Gold mode |
Display k value | The K value of mixture of gold,silver,and copper; The K value of mixture of gold and copper; The K value of mixture of gold and silver; | |||||||||
Display purity percent | The purity percentage of mixture of gold,silver and copper; ; The purity percentage of mixture of gold and copper; The purity percentage of mixture of gold and silver; | ||||||||||
K value range | 9K~24K | ||||||||||
Copper and silver proportion setting | Cycle seting(default 7:3) | ||||||||||
Testing error | Default as ±1K;also can be set up as 0.1K,0.01K,need to confirm with factory firstly | ||||||||||
Platinum Mode | Display value | PT percent,density value,volume | |||||||||
PT value range | Pt600 - Pt1000 | ||||||||||
Other Precious Metals | Function | Only for DA series and DE series:measure the purity percentage of main materials in two kinds of mixture | |||||||||
Display value | Only for DA series and DE series:density value,volume,content precentage | ||||||||||
setting | Only for DA series and DE series:density value of main materials and secondary materials setting | ||||||||||
Measuring container | completed injection forming transparent professional measuring tank (size:length16.9mm×wide9.8mm×high8.3mm) | ||||||||||
Parameter setting | water temperature setting,measuring medium density setting | ||||||||||
principle | Archimedes principle | ||||||||||
Memory method | Two procedures | ||||||||||
Correction method | Auto calibration with one key,auto detection. | ||||||||||
Output method | Output and print testing data conveniently with standard communication interface of RS-232C. | ||||||||||
Standard accessories | Host,tank,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer | ||||||||||
wind and dust cover | Adopt the unicase dedicated wind and dust cover | ||||||||||
Option accessories | DE-40 printer | ||||||||||
power | Default as AC 100V – 240V(Europe standard),based on destination country which standards be took. | ||||||||||
Main features | Simple operation,digital display,accurate measuring,stable,durable. | ||||||||||
Portable Gold Purity Tester Archimedes Principle Gold Density Tester For Bank
Function introduction:
1. Directly read the purity of gold and measure the density (specific gravity) of other metals. After the test, your gold will not leave any stains or scratches;
2. It only takes 10 seconds to accurately measure the K number and density of gold, and the Pt value and density of platinum;
3. Easy to operate, to determine the density of precious metals (specific gravity) and gold k number/platinum PT value, only need to weigh twice, just put the sample into the water, the internal software of the instrument will automatically calculate;
4. According to market demand, through special software design, users can set the upper and lower limits of K number and Pt value by themselves. When the test gold K number is greater than 24K, the instrument will display HI; when it is less than 12K, it will display LO. Identify the authenticity of gold in a more intuitive and faster way;
5. According to the ratio of copper and silver in gold, the ratio of copper and silver can be set to compensate for the parameter value;
6. It adopts a one-piece transparent large sink (size: 15cm×10cm×9cm). The sink is molded with special materials, which is not only wear-resistant and corrosion-resistant, but also not easy to break. It is also very beautiful and can be greatly convenient for users. use;
7. Lightweight, thin, stainless steel hanging railing design is adopted, which can greatly reduce the error caused by the buoyancy of the hanging railing;
8. It can test other precious metals, such as silver, copper, tin, etc.; it can also be used as a precision electronic balance.
9. Only applicable to solid metal parts, and the solid metal parts are not equipped with gems;
10. With RS-232C communication interface, it is convenient to connect PC and printer, and DE-40 printer can be used to print measurement data
Specification table:
Model | DH-300K | DH-600K | DH-900K | DH-1200K | DA-300K | DA-600K | DA-900K | DA-1200K | DE- 120K | DE-200K | |
Maximum weight | 300g | 600g | 900g | 1200g | 300g | 600g | 900g | 1200g | 120g | 200g | |
Weight resolution | 0.005g | 0.005g | 0.01g | 0.01g | 0.005g | 0.005g | 0.01g | 0.01g | 0.001g | 0.001g | |
Density resolution | 0.001g/cm3 | ||||||||||
Measuring time | 10S | ||||||||||
Testing board | Completed high-capacity plastic testing board | ||||||||||
Measuring type | Traditional gold and platinum jewelry,necklace,bracelet,ring,large bullion,craft,and gold,silver,copper,cadmium,nickel,tin.etc. | ||||||||||
Gold mode |
Display k value | The K value of mixture of gold,silver,and copper; The K value of mixture of gold and copper; The K value of mixture of gold and silver; | |||||||||
Display purity percent | The purity percentage of mixture of gold,silver and copper; ; The purity percentage of mixture of gold and copper; The purity percentage of mixture of gold and silver; | ||||||||||
K value range | 9K~24K | ||||||||||
Copper and silver proportion setting | Cycle seting(default 7:3) | ||||||||||
Testing error | Default as ±1K;also can be set up as 0.1K,0.01K,need to confirm with factory firstly | ||||||||||
Platinum Mode | Display value | PT percent,density value,volume | |||||||||
PT value range | Pt600 - Pt1000 | ||||||||||
Other Precious Metals | Function | Only for DA series and DE series:measure the purity percentage of main materials in two kinds of mixture | |||||||||
Display value | Only for DA series and DE series:density value,volume,content precentage | ||||||||||
setting | Only for DA series and DE series:density value of main materials and secondary materials setting | ||||||||||
Measuring container | completed injection forming transparent professional measuring tank (size:length16.9mm×wide9.8mm×high8.3mm) | ||||||||||
Parameter setting | water temperature setting,measuring medium density setting | ||||||||||
principle | Archimedes principle | ||||||||||
Memory method | Two procedures | ||||||||||
Correction method | Auto calibration with one key,auto detection. | ||||||||||
Output method | Output and print testing data conveniently with standard communication interface of RS-232C. | ||||||||||
Standard accessories | Host,tank,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer | ||||||||||
wind and dust cover | Adopt the unicase dedicated wind and dust cover | ||||||||||
Option accessories | DE-40 printer | ||||||||||
power | Default as AC 100V – 240V(Europe standard),based on destination country which standards be took. | ||||||||||
Main features | Simple operation,digital display,accurate measuring,stable,durable. | ||||||||||
Guangdong Hongtuo Instrument Technology Co.,Ltd has been specializing in density testing field on developing, innovating and producing since the year it was establised.
