DH-150
Dahometer
1 set
5-7 days
1 years,Lifelong maintenance
TT/Western Union/Paypal etc
Negotiable
Availability: | |
---|---|
Quantity: | |

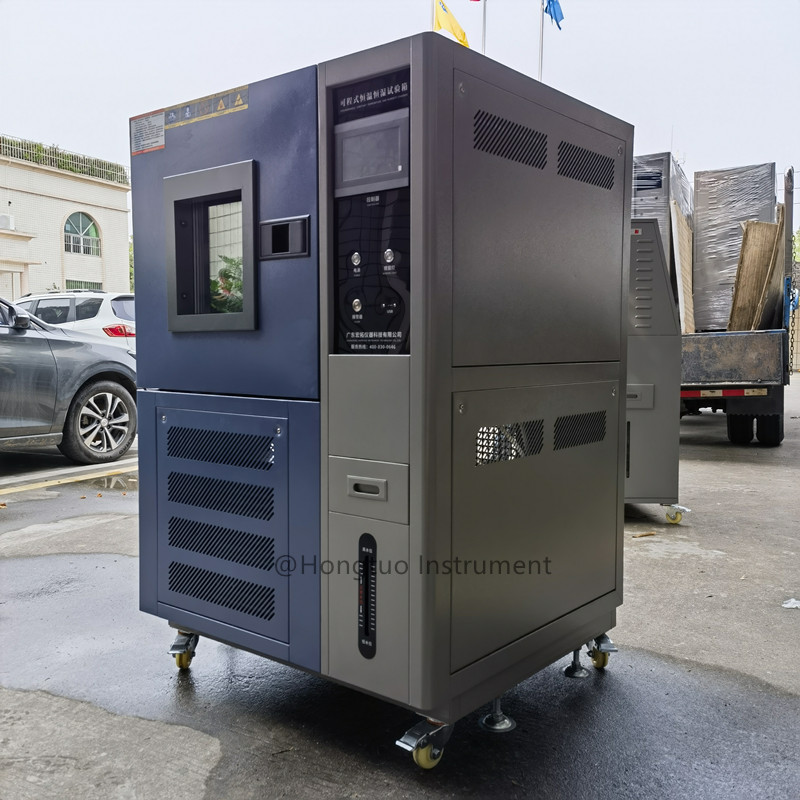

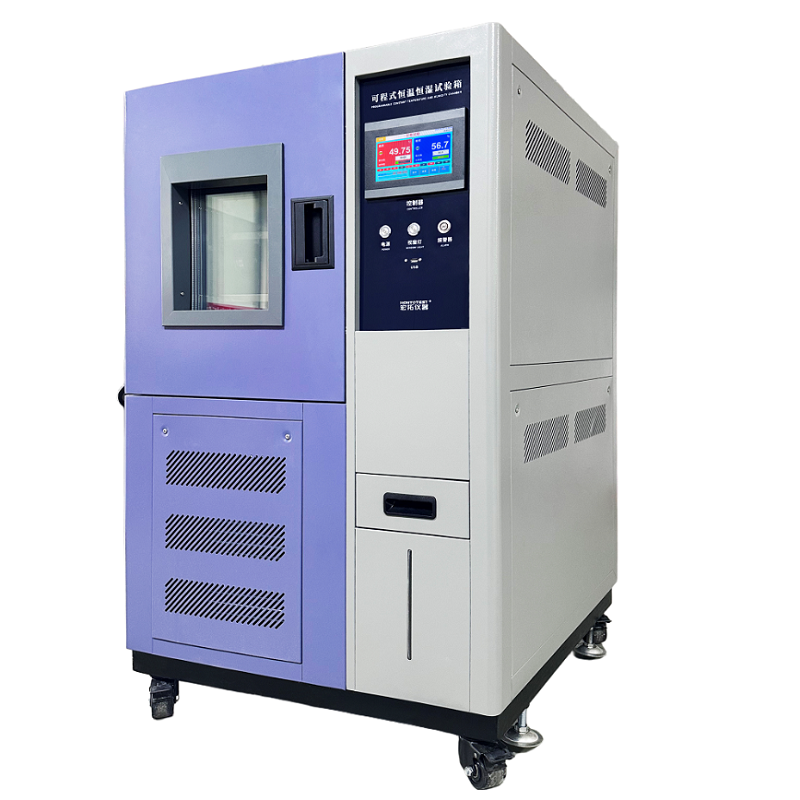

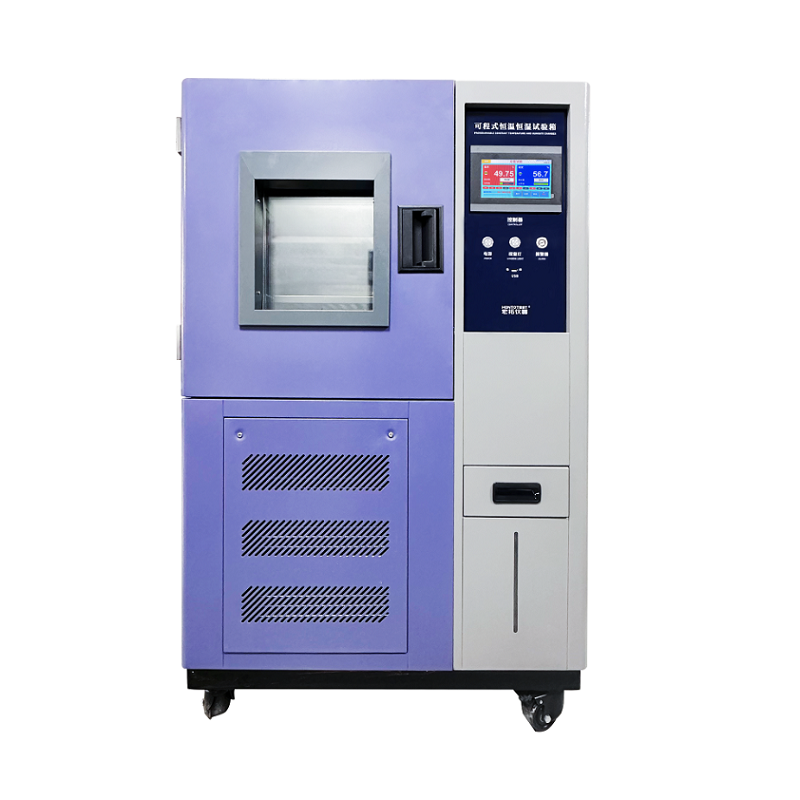

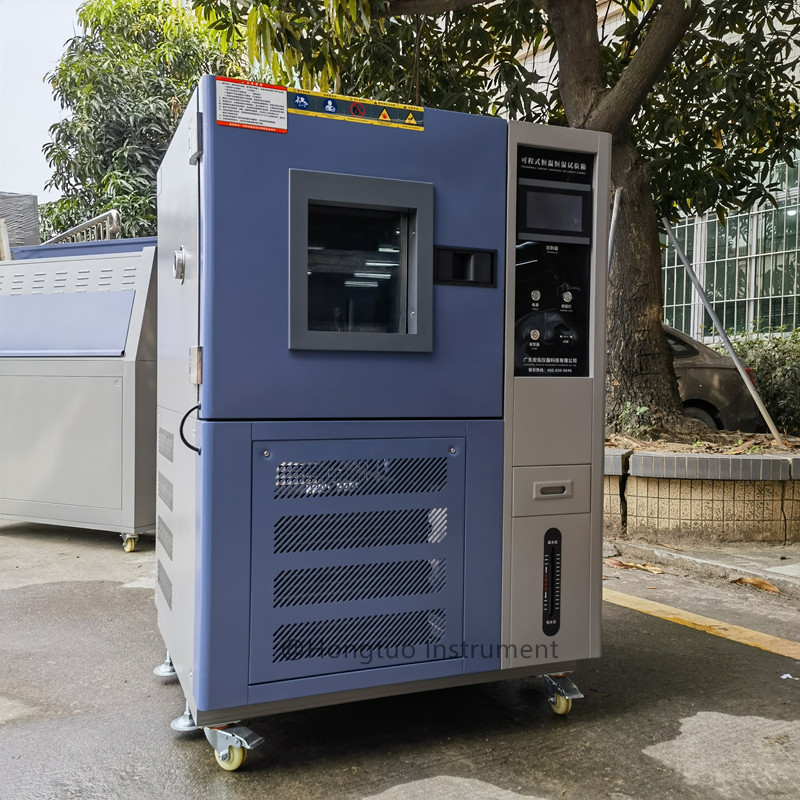

150L Large LCD Touching Screen Temperature And Humidity Test Chamber For Plastic
Temperature And Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals, food, chemicals, building materials, medical care, aerospace, etc.
Main technical parameters
Model | DH-080 | DH-150 | DH-225 | DH-408 | DH-800 | DH-1000 | |||||||||||||||||||||
Interior dimensions (WxHxD)cm | 40X50X40 | 50X60X50 | 50X75X60 | 60X85X80 | 100X100X80 | 100X100X100 | |||||||||||||||||||||
Exterior dimenstions (WxHxD)cm | 97X136X97 | 107X146X107 | 107X161X117 | 117X171X127 | 155X185X130 | 155X185X147 | |||||||||||||||||||||
Internal volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 | |||||||||||||||||||||
Temp.humid range | 0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH | ||||||||||||||||||||||||||
Performance | Constancy | ±0.2°C;±2.5%RH | |||||||||||||||||||||||||
Uniformity | ±2°C;±3.0%RH | ||||||||||||||||||||||||||
Heating up time | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | |||||||||||||||
25min | 35min | 30min | 40min | 30min | 40min | 30min | 40min | 35min | 45min | 35min | 45min | ||||||||||||||||
Pull up time | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | |||
30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | ||||
Power(k.w) | 4.5 | 5 | 5.5 | 6.5 | 5 | 5.5 | 6 | 7.5 | 5.5 | 6 | 6.5 | 8.5 | 6 | 6.5 | 7 | 9.5 | 6.5 | 7 | 7.5 | 10.5 | 7 | 7.5 | 8 | 11.5 | |||
Weight(kg) | 200 | 250 | 300 | 400 | 600 | 700 | |||||||||||||||||||||
Material | Interior material | Stainless steel plate(sus304) | |||||||||||||||||||||||||
Exterior material | Stainless steel plate(sus304) | ||||||||||||||||||||||||||
Insulation material | Rigid polyauethane foam and glass wool | ||||||||||||||||||||||||||
System | The wind circulation | Centrifugal fan + wide-band forced air circulation (up output and bottom input) | |||||||||||||||||||||||||
Refrigerating mode | Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor) | ||||||||||||||||||||||||||
Refrigerator | R404A R23 U.S.A HONEYWELL | ||||||||||||||||||||||||||
Heater | Iron-chrome wire heater | ||||||||||||||||||||||||||
Humidifier | Stainless steel sheathed heater | ||||||||||||||||||||||||||
Water supply method | Water pump out system | ||||||||||||||||||||||||||
Accessories | Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp, | ||||||||||||||||||||||||||
Safety device | No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices | ||||||||||||||||||||||||||
Power | 1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ |
150L Large LCD Touching Screen Temperature And Humidity Test Chamber For Plastic
Temperature And Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals, food, chemicals, building materials, medical care, aerospace, etc.
Main technical parameters
Model | DH-080 | DH-150 | DH-225 | DH-408 | DH-800 | DH-1000 | |||||||||||||||||||||
Interior dimensions (WxHxD)cm | 40X50X40 | 50X60X50 | 50X75X60 | 60X85X80 | 100X100X80 | 100X100X100 | |||||||||||||||||||||
Exterior dimenstions (WxHxD)cm | 97X136X97 | 107X146X107 | 107X161X117 | 117X171X127 | 155X185X130 | 155X185X147 | |||||||||||||||||||||
Internal volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 | |||||||||||||||||||||
Temp.humid range | 0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH | ||||||||||||||||||||||||||
Performance | Constancy | ±0.2°C;±2.5%RH | |||||||||||||||||||||||||
Uniformity | ±2°C;±3.0%RH | ||||||||||||||||||||||||||
Heating up time | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | |||||||||||||||
25min | 35min | 30min | 40min | 30min | 40min | 30min | 40min | 35min | 45min | 35min | 45min | ||||||||||||||||
Pull up time | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | |||
30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | ||||
Power(k.w) | 4.5 | 5 | 5.5 | 6.5 | 5 | 5.5 | 6 | 7.5 | 5.5 | 6 | 6.5 | 8.5 | 6 | 6.5 | 7 | 9.5 | 6.5 | 7 | 7.5 | 10.5 | 7 | 7.5 | 8 | 11.5 | |||
Weight(kg) | 200 | 250 | 300 | 400 | 600 | 700 | |||||||||||||||||||||
Material | Interior material | Stainless steel plate(sus304) | |||||||||||||||||||||||||
Exterior material | Stainless steel plate(sus304) | ||||||||||||||||||||||||||
Insulation material | Rigid polyauethane foam and glass wool | ||||||||||||||||||||||||||
System | The wind circulation | Centrifugal fan + wide-band forced air circulation (up output and bottom input) | |||||||||||||||||||||||||
Refrigerating mode | Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor) | ||||||||||||||||||||||||||
Refrigerator | R404A R23 U.S.A HONEYWELL | ||||||||||||||||||||||||||
Heater | Iron-chrome wire heater | ||||||||||||||||||||||||||
Humidifier | Stainless steel sheathed heater | ||||||||||||||||||||||||||
Water supply method | Water pump out system | ||||||||||||||||||||||||||
Accessories | Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp, | ||||||||||||||||||||||||||
Safety device | No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices | ||||||||||||||||||||||||||
Power | 1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ |
