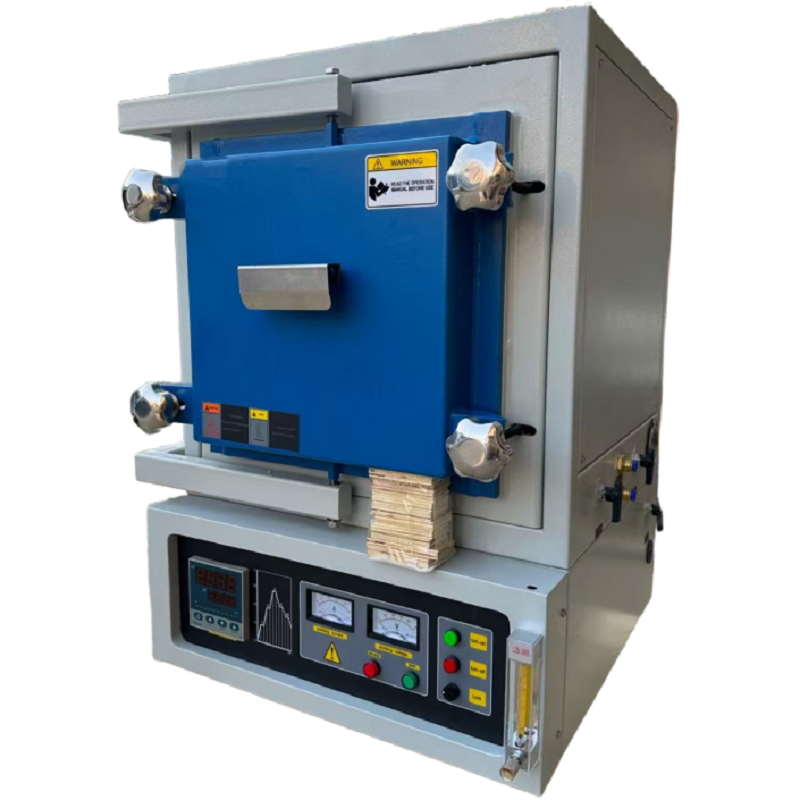

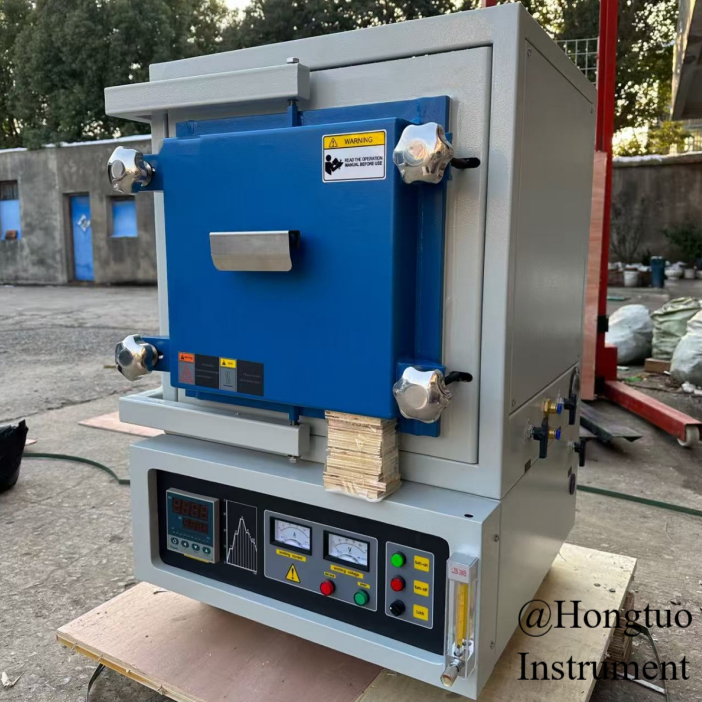

HT-VF-12 Vacuum Atmosphere Furnace,High Precision Vacuum Furnace for Laboratory Use
Technical Data:
| Heating surface | Three-sided heating, side door |
| Temperature range | 100-1200℃ |
| Maximum temperature | <1200℃ |
| Effective size of furnace | 300*200*200mm |
| Temperature control | 30-stage intelligent temperature control, heating curve can be set arbitrarily, automatic heating, no need to be on duty |
| Shell design | The furnace shell adopts double-layer forced air cooling structure, and a cooling fan is installed at the bottom of the furnace to make the external temperature of the furnace shell close to room temperature when the furnace is working at the highest temperature. |
| Gas can pass | All inert gases, mixed gases, nitrogen, chlorine, oxygen, water vapor, etc. |
| Heating rate | ≤0~ 30.C/ min |
| Other configurations | Crucible tongs (1 pair), high-temperature gloves (1 pair), instruction manual |
| Temperature control safety | The electric furnace adopts integrated circuit, module control, and dual-circuit protection (bias temperature protection, over-high temperature protection, burnout protection, over-current protection, and over-pressure protection) |
| Temperature control accuracy | ±1℃ |
| Vacuum negative pressure | -0.1MPA |
| Furnace material/furnace design | High-density alumina ceramic fiber, the furnace adopts a stepped assembly structure, which integrates the laws of mechanics, effectively ensuring that the furnace is evenly stressed during the heating process, ensuring that heat energy is not easily lost, and extending the service life of the furnace |
| Heating element | resistance wire |
| Thermocouple | K-type |
| Warranty matters | One-year free warranty for electric furnaces (excluding heating elements) |
| Delivery time | 15 working hours |
| Package | Wooden box packaging with foam filling inside and plastic film wrapping the furnace body |
| Power supply | 220V50HZ/6KW |
Detailed configuration:
| Name | Thermocouple (Type K) | furnace lining | Polycrystalline mullite fiber | Temperature control instrument | vacuum pump | flow meter |
Shipping Guide:
Company Information:
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications:
