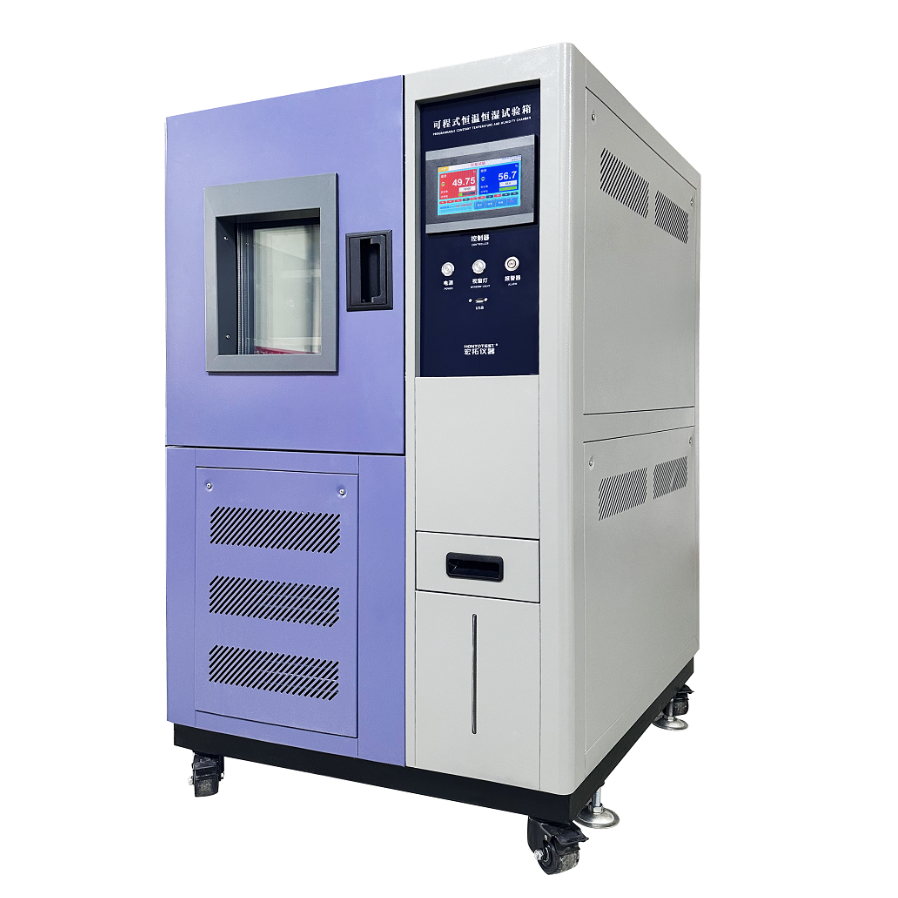

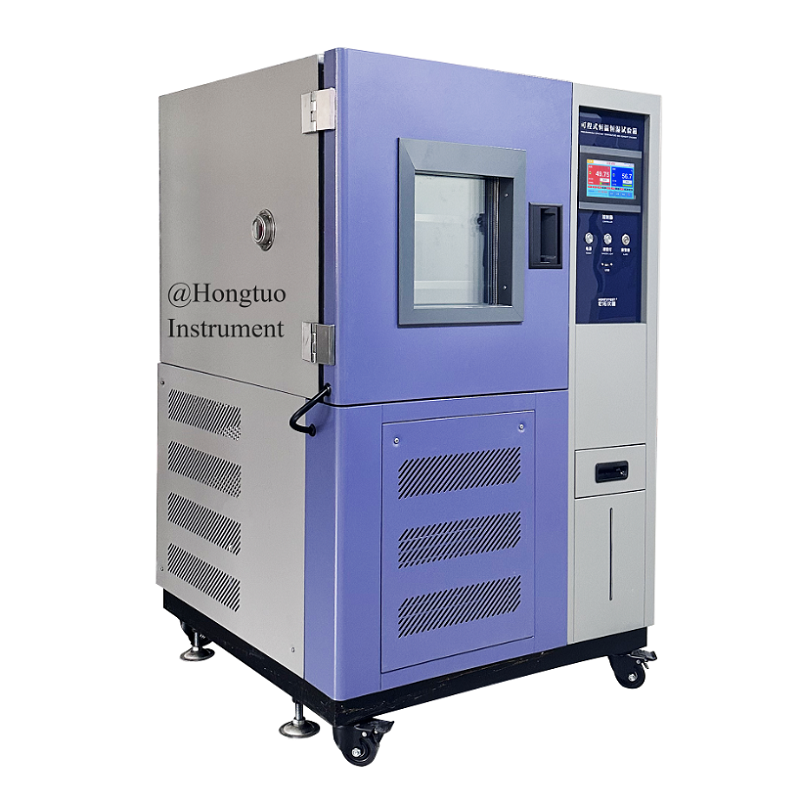

DH-150 Temperature Tester Chamber Climate Cabinet Environmental Test Equipment
Product description:
DH-150 Environmental Climatic Temperature Humidity Test Chamber can simulate numerous environmental conditions. It's appropriate for testing material performance, such as resist cold ,resist heating, resist dry,resist humidity.That can define performance of material.
Product features:
(1)The outer case is made up of SUS304 steel plate.CNC processing molding,Beautiful design,Reacionless holder,easy operation
(2)Large LCD touching screen
(3)Adopt micro-computer temperature humidity controller.accuracy and reliability
(4)Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time
(5)Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing
(6)Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outer power cable or signal cable
(7)Adopt high quality fixed PU running wheel in the bottle of machine
(8)New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%
Main technical parameters:
Model | DH-080 | DH-150 | DH-225 | DH-408 | DH-800 | DH-1000 | ||||||||||||||||||||
Interior dimensions (WxHxD)cm | 40X50X40 | 50X60X50 | 50X75X60 | 60X85X80 | 100X100X80 | 100X100X100 | ||||||||||||||||||||
Exterior dimenstions (WxHxD)cm | 97X136X97 | 107X146X107 | 107X161X117 | 117X171X127 | 155X185X130 | 155X185X147 | ||||||||||||||||||||
Internal volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 | ||||||||||||||||||||
Temp.humid range | 0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH | |||||||||||||||||||||||||
Performance | Constancy | ±0.2°C;±2.5%RH | ||||||||||||||||||||||||
Uniformity | ±2°C;±3.0%RH | |||||||||||||||||||||||||
Heating up time | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | ||||||||||||||
25min | 35min | 30min | 40min | 30min | 40min | 30min | 40min | 35min | 45min | 35min | 45min | |||||||||||||||
Pull up time | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | ||
30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | |||
Power(k.w) | 4.5 | 5 | 5.5 | 6.5 | 5 | 5.5 | 6 | 7.5 | 5.5 | 6 | 6.5 | 8.5 | 6 | 6.5 | 7 | 9.5 | 6.5 | 7 | 7.5 | 10.5 | 7 | 7.5 | 8 | 11.5 | ||
Weight(kg) | 200 | 250 | 300 | 400 | 600 | 700 | ||||||||||||||||||||
Material | Interior material | Stainless steel plate(sus304) | ||||||||||||||||||||||||
Exterior material | Stainless steel plate(sus304) | |||||||||||||||||||||||||
Insulation material | Rigid polyauethane foam and glass wool | |||||||||||||||||||||||||
System | The wind circulation | Centrifugal fan + wide-band forced air circulation (up output and bottom input) | ||||||||||||||||||||||||
Refrigerating mode | Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor) | |||||||||||||||||||||||||
Refrigerator | R404A R23 U.S.A HONEYWELL | |||||||||||||||||||||||||
Heater | Iron-chrome wire heater | |||||||||||||||||||||||||
Humidifier | Stainless steel sheathed heater | |||||||||||||||||||||||||
Water supply method | Water pump out system | |||||||||||||||||||||||||
Accessories | Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp, | |||||||||||||||||||||||||
Safety device | No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices | |||||||||||||||||||||||||
Power | 1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ |
