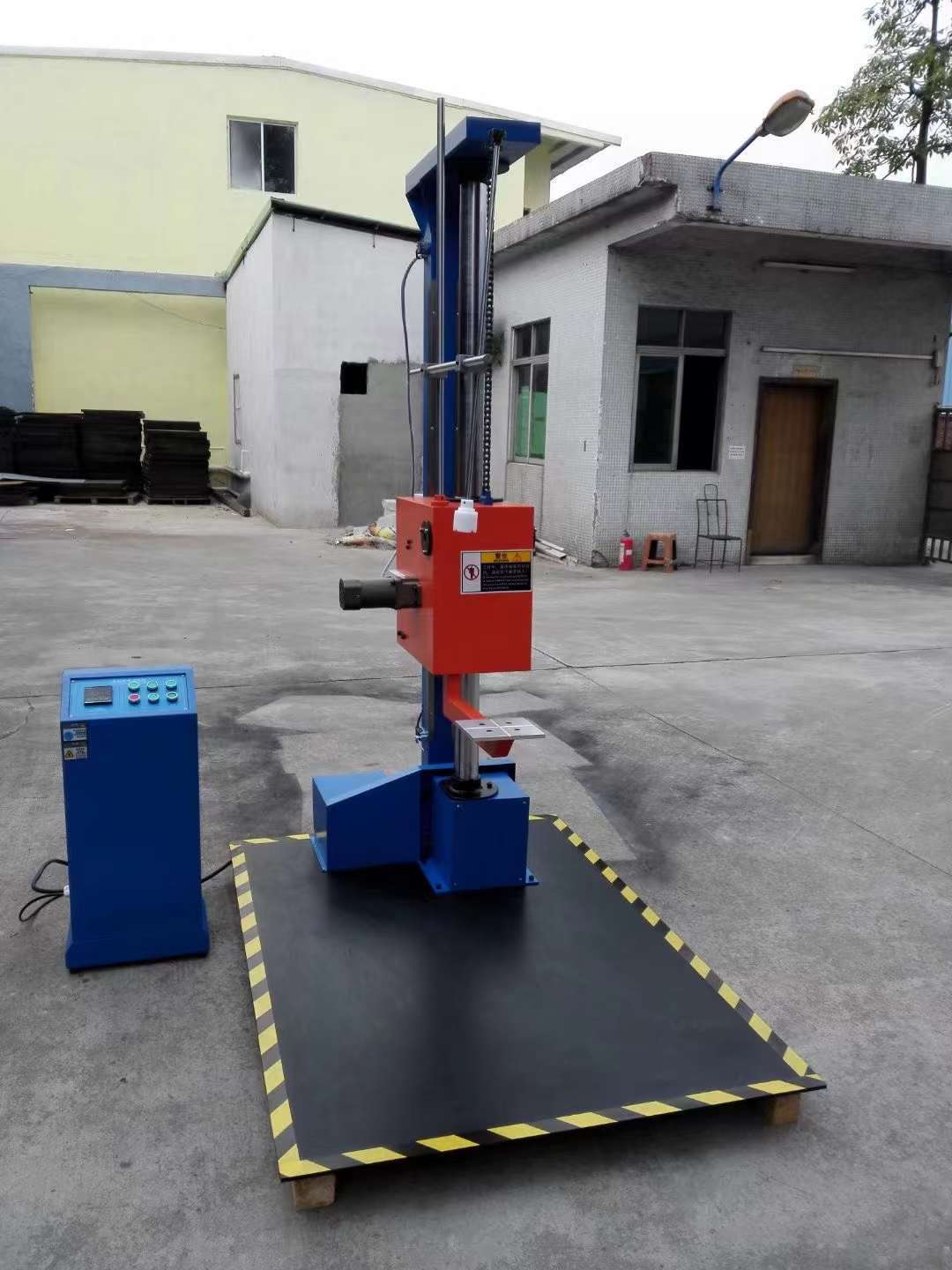

Corrugated Package Box Carton Drop Tester Paper Testing Instruments Single-Arm Simulated Drop Test Machine DH-DI-02
This machine is specially designed to test the product's damage caused by falling and evaluate the impact strength during transportation and transportation. Applicable standard: ISO2248 JISZ0202-87 GB / T4857.5-92.
Features:
The single-arm drop test machine can perform free drop test on the face, angle and edge of the package. It is equipped with a digital display height indicator and uses a decoder for height tracking, so that it can accurately give the product drop height and the preset drop height.The error does not exceed 2% or 10MM. This machine adopts single-arm double-column structure, with electric reset, electric control drop and electric lifting device, easy to use; the unique buffer device greatly improves the service life, stability and safety of the machine. Single arm setting, can easily place the product.
Technical parameters:
1. Drop height mm: 300-1500 adjustable
2. The maximum weight of the test piece kg: 80Kg;
3. Thickness of bottom plate: 10mm (solid iron plate)
4. Maximum size of test piece mm: 1000 x1000 x 800
5. Impact panel size mm: 1700 x 1200 x10
6. Drop height error: ± 10mm
7. Overall dimensions of test bench mm: about 1700 x 1200 x 2315
8. Support arm size: 180 * 180 * 10mm
9. Net weight kg: about 300kg;
10. Test method: face, angle and edge drop in all directions
11. Control mode: electric
12. Falling height error: 1%
13. Parallel error of impact panel: ≤1 degree
14. The angle error between the falling surface and the horizontal during the falling process: ≤1 degree
15. Power supply: 380V1, power supply: AC380V 50HZ
16. Power: 1.85KWA
Environment requirements:
Temperature: 5 ℃ ～ + 28 ℃ (average temperature ≤28 ℃ within 24 hours)
Relative humidity: ≤85% RH
Power supply conditions: three-phase four-wire + protective earth,
Voltage range: AC (380 ± 38) V
