Product Introduction

The DH-LT-02 sealing tester adopts the negative pressure test principle and is suitable for sealing tests of soft packaging in the food, pharmaceutical, daily chemical, electronics and other industries. The test can effectively compare and evaluate the sealing process and sealing performance of soft packaging, providing a scientific basis for determining relevant technical indicators. It can also test the sealing performance of test pieces after drop and pressure resistance tests.

Testing Principle

Using compressed air as the power source, the vacuum chamber is vacuumed through the vacuum generating device. The sample is placed in the vacuum chamber and submerged in the water. The vacuum tank is evacuated to create a pressure difference between the inside and outside of the sample immersed in water. The sealing performance of the sample can be judged by observing the expansion of the sample or the overflow of gas (bubbles) in the sample.

Features

Conventional power supply, universal interface connection, easy to use

Microcomputer control technology, open structure, friendly human-machine interface operation, simple and convenient to use

High-definition touch screen operation, simple and feasible, strong sense of technology

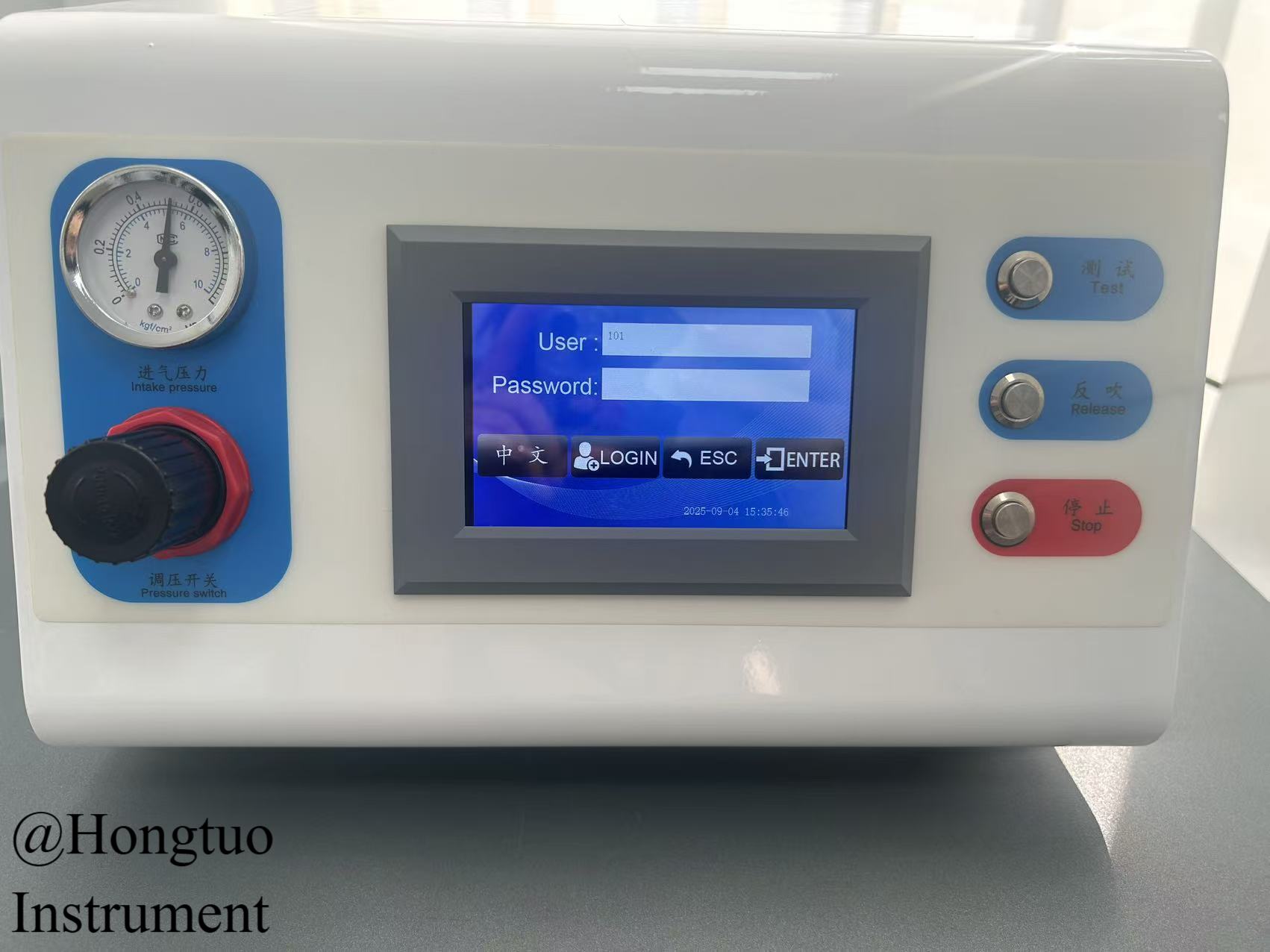

Three-level account login, clear permissions, in line with pharmacopoeia regulations

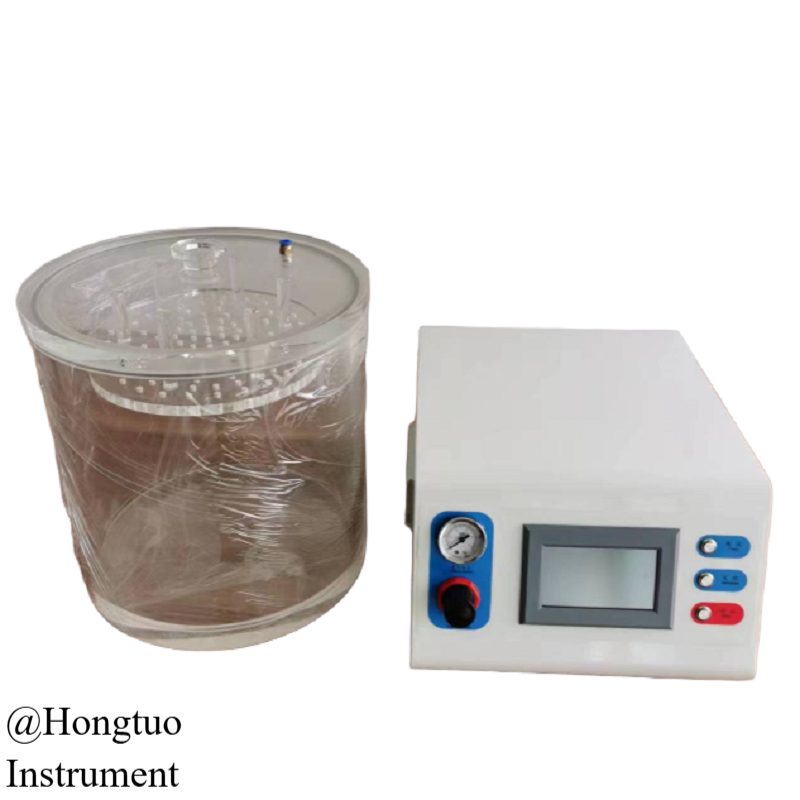

Ultra-thick plexiglass vacuum chamber, high transparency, easy to observe

Compressed air power source, convenient and easy to obtain, economical and applicable

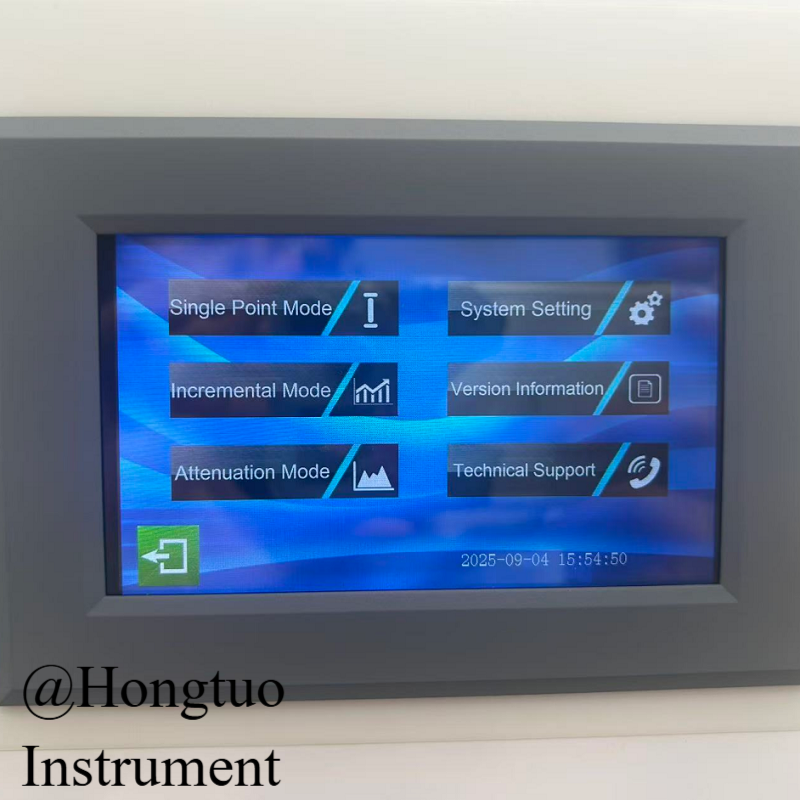

Three test modes are optional: single point mode, incremental mode, attenuation mode

Five groups of parameters are preset for each mode, and the test is convenient and fast

Fully automatic test, one-click test

Built-in gas source, vacuum filtration device

Reasonable layout of operation buttons, easy to operate

Hollow shell design, removes water vapor and avoids corrosion

Metal shortcut keys, reliable operation, improve test efficiency

Dot matrix printer outputs result data, meeting pharmacopoeia requirements

Interface curve real-time display, effective monitoring of test progress

The instrument has storage query function, which can be used for audit and traceability of test results

Technical Parameters

Vacuum degree: 0～-90kPa

Vacuum accuracy: 0.5 level

Operation mode: 4.3-inch capacitive touch screen

Screen resolution: 800x480

Vacuum chamber size: φ270x210 (H) mm (other sizes can be customized)

Test mode: single point mode, incremental mode, attenuation mode

Gas source pressure: ≤0.7MPa (7kgf/cm2) User-provided

Dimensions: 450 (L) x300 (W) x200 (H) mm

Power supply: 220V 50Hz

Weight: about 18kg

Standard configuration: host, sealing tank, sealing ring, air pipe, filter, power cord, fuse, printing paper

Standard

GBT 15171、GBT 27728、GB 7544、GBT 26717、YBB 00052005-2015、YBB 00122002-2015、QBT 2777、QBT 2859、QBT 1655、QBT 2778、ASTM D 3078
