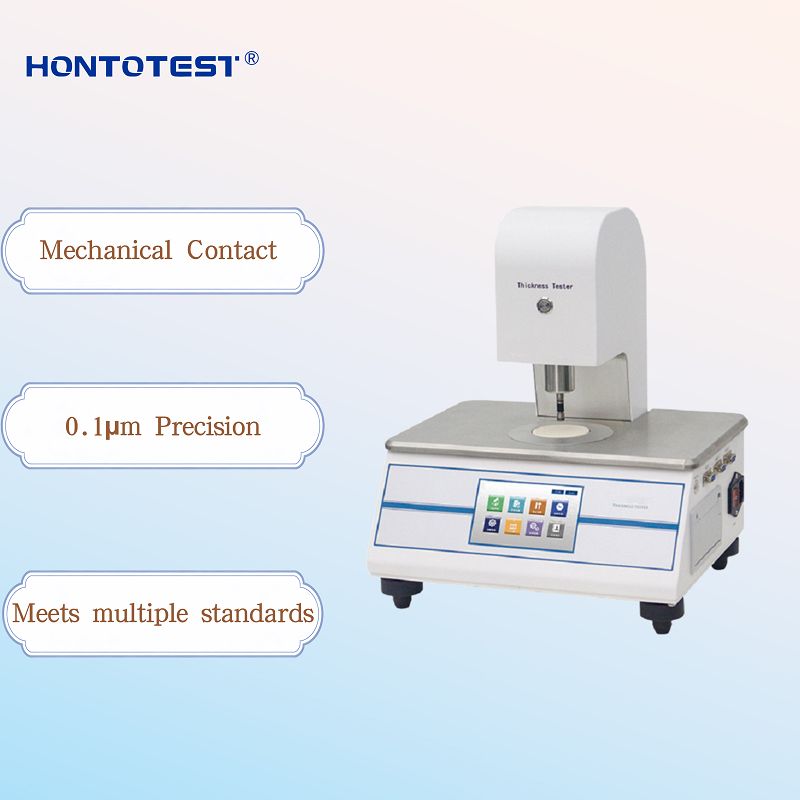

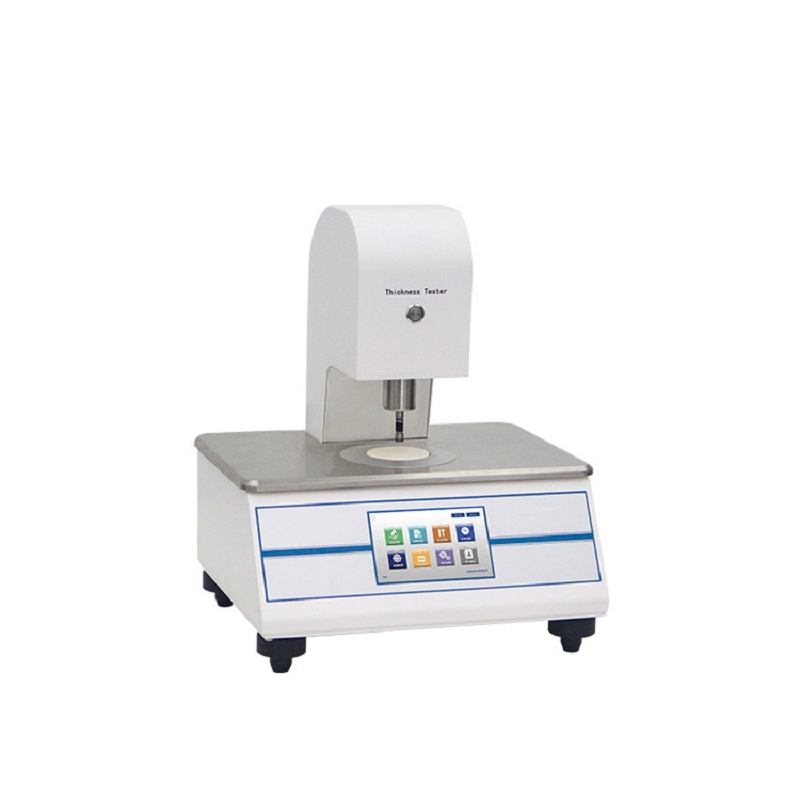

DH-CA High Precision Mechanical Contact Film Thickness Tester Automatic Touch Screen Thickness Gauge
Introduction:
DH-CA Thickness Tester is a high precision mechanical contact method thickness tester, which can be used for to thickness measurement of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, and solid insulation materials, etc.
Technical Features:
5 inch touch screen. Microcomputer control, menu-type interface and PVC operation panel, which is convenient for users operation and data viewing;
Strictly follow the standard design of contact area and measurement pressure, and support various non-standard customization;
The measuring head automatically rises and falls during the test, effectively avoiding system errors caused by manual operation;
Two test modes, automatic and manual, which is convenient for users to choose freely;
Optional auto sampler supports and the relevant parameters setting such as sampling step, number of measurement points and sampling speed;
lReal-time display of analysis data such as the maximum, minimum, average, and standard deviation
Standard gauge blocks for system calibration assured the test accuracy and data consistency;
The standard USB interface facilitates the external connection and data between the system and the computer.
Application:
Paper, plastic film, Sheet, diaphragm, cardboard, foil, silicon, metal, textile, solid electrical insulation, non-woven materials etc
Test Principle:
The pre-conditioned specimen is placed on a flat test plane, the pressure foot which is paralleled to the test plane will raise and falls on the upper surface of the specimen with certain pressure applied on. The displacement sensor with the pressure foot will detect the space between the upper and lower surface of the specimen, which is the thickness of the specimen.
Test Standard:
ISO 4593、ISO 534、ISO 3034、ISO12625-3、ISO5084、GB/T 6672、GB/T 451.3、 GB/T 6547、ASTM D374、ASTM D1777、ASTM D3652、ASTM D6988、ASTM F2251、TAPPI T411、BS 2782-6、DIN53370、JIS K6250、JIS K6783、JIS Z1702、 BS 3983、BS 4817 FEFCO No 3、EN1942
Technical Data Sheet:
Model | DH-CA Film Thickness Tester |
Test range | 0～2 mm（Standard） 0～6 mm (optional)； |
Resolution | 0.1 μm |
Test pressure | 17.5±1 KPa（Film）（standard）；50±1 KPa（Paper）（optional） |
Contact area | 50 mm²（Film）（standard）；200 mm²（Paper）（optional） Note: one choice of film and paper; customization is available. |
Feeding distance | 0～1000 mm (optional) |
Feeding speed | 0.1～99.9 mm/s(optional) |
Power supply | AC 220V 50Hz 80W |
Size | 461 mm(L)× 334 mm(W)× 357 mm(H) |
Weight | 32 kg |
Standard configuration | Instrument, standard gauge block |
Optional | Professional Software and Communication Cable, Non standard Measuring Head, Argumentation weights |
