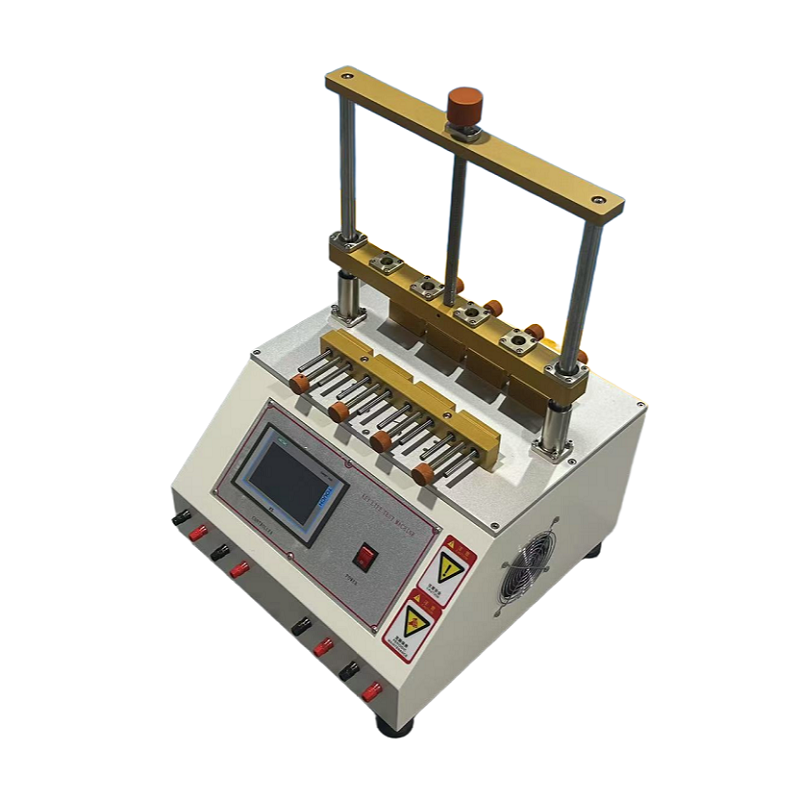

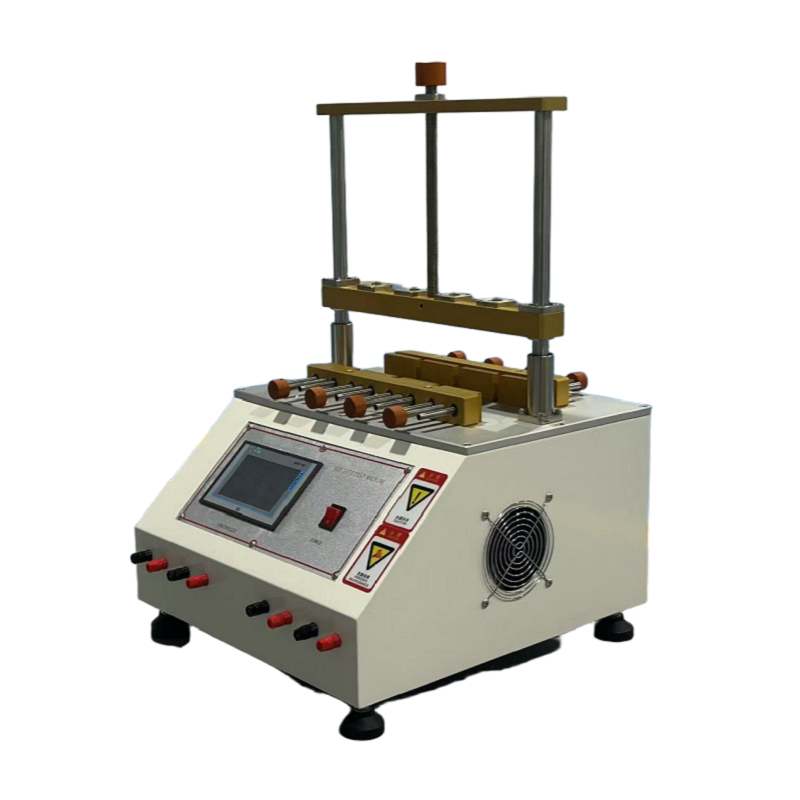

HT-KL-4 Key Life Testing Machine, Silicone/Rubber/Membrane Button Durability Tester for Mobile Phone Remote Control Switch

HT-KL-4 Key Life Testing Machine, Silicone/Rubber/Membrane Button Durability Tester for Mobile Phone Remote Control Switch

Introduction:

The key life tester is suitable for life tests of various keys such as mobile phones, computers, electronic dictionaries, Bluetooth headsets, car players, remote control keys, vehicle anti-theft devices, fax machine keys, MP5, MP4, MP3, key switches, touch switches, membrane keys, rubber keys, silicone keys, etc. This machine places the products in the test positions of the corresponding stations, and the key test rod simulates human life tests of the products under certain test loads, speeds, strokes, and times.

Parameter:

1. Test station: 4 (working at the same time)

2. Load weights: 10, 20, 50, 100, 200g, four each (other specifications are optional)

3. Test times counter: 0~99999999 times (presettable)

4. Test conduction times counter: 0~999999 times (four-station conduction automatically counts, disconnection automatically stops Counting)

5. Test speed: 5~60 times/min (knob adjustable)

6. Test stroke: 0~60mm (manually adjustable)

7. Conventional clamping range of test fixture: 60×70mm (manually adjustable)

8. Overall dimensions (L×W×H): 500×480×780mm

9. Machine weight: 40kg

10. Working power supply: AC220V, 50HZ

Features:

1. The box is treated with electrostatic spray paint, which is beautiful and generous. The whole machine is reasonably designed, the structure is tight, and the operation is stable;

2. According to the test and manufacturing of various key products, the test fixture and stroke are adjustable and widely used;

3. Four groups of workstations work at the same time, which greatly improves the test efficiency;

4. The test speed and number of times are humanized and the operation is convenient and fast;

5. Each workstation has a corresponding conduction counter. If the key fails and the conduction is disconnected, the corresponding counter will automatically stop counting, which is convenient and timely to obtain product-related test information.
