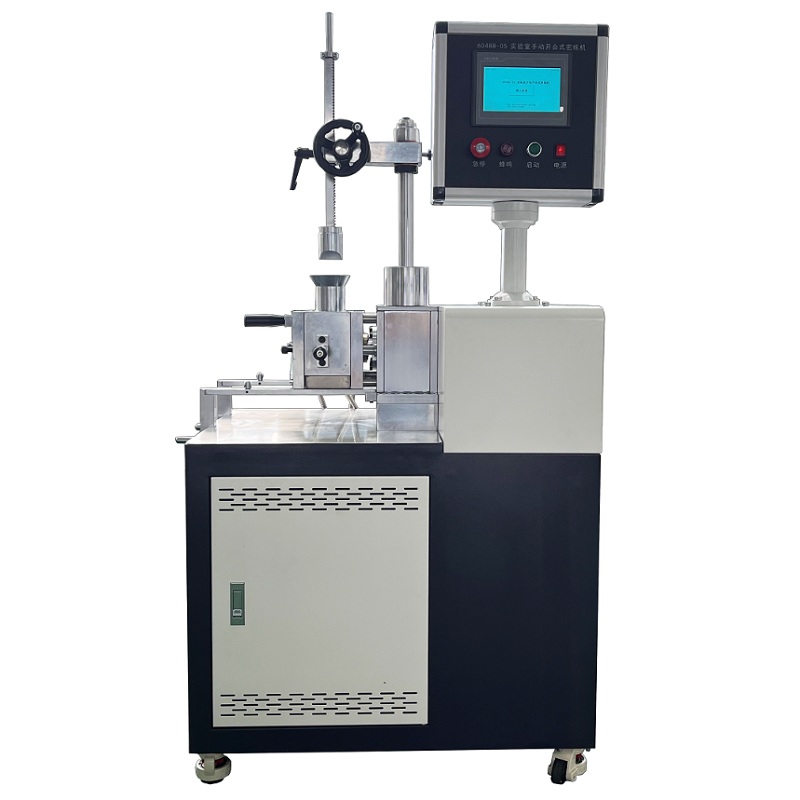

HT-TM-02 Manual Opening Micro Internal Mixer 0.2L Lab Rubber Mixing Machine PLC Touch Screen RT-200℃ Air/Water Cooling

HT-TM-02 Manual Opening Micro Internal Mixer 0.2L Lab Rubber Mixing Machine PLC Touch Screen RT-200℃ Air/Water Cooling

Usage:

Its main function is to make the product meet the quality and color required by the customer. In order to meet the customer's requirements, the experimental results and their ratios are used in the production line. This machine is a device that mixes the experimental raw materials and compounding agents evenly. It can be electrically heated and air cooled.

Features:

a) The volume of the mixing chamber is: 0.05L, 0.1L, 0.2L, 0.5L/primary mixing rubber 0.05-0.5kg, which is related to the density of the material. The greater the density, the greater the weight.
b)Main motor: AC motor
c)Reducer: The base and frame are made of mild steel welded structure and contain a forced lubrication circulation system;
d) Rotor: Two-edge, synchronous rotor structure (can also be designed and manufactured according to the rotor structure diagram provided by the user), the front and rear rotor speed ratio is 1:1.20 or ST synchronous rotor, cast steel is tempered and hardened, and the surface is hard chromium plated; the bearing is Ball shaft roller bearing; bearing lubricating oil bath; maximum rotor speed: 50 rpm
e)Wall: Steel structure, drilling and heating, inner surface hardened and hard chromium plated;
f)Bracket: steel structure, inner surface hardened and hard chromium plated;
g)Top bolt: manual rudder weight/cylinder drive, surface hard chrome plated
h)End seal: sealing ring made of highly wear-resistant material, self-lubricating bearing, hinge spring top seal
i) Adding hopper: manual operation
g)Control mode: operation is divided into manual, semi-automatic, and automatic; maximum temperature of internal mixer: normal temperature to 320°
Technical Parameters：
