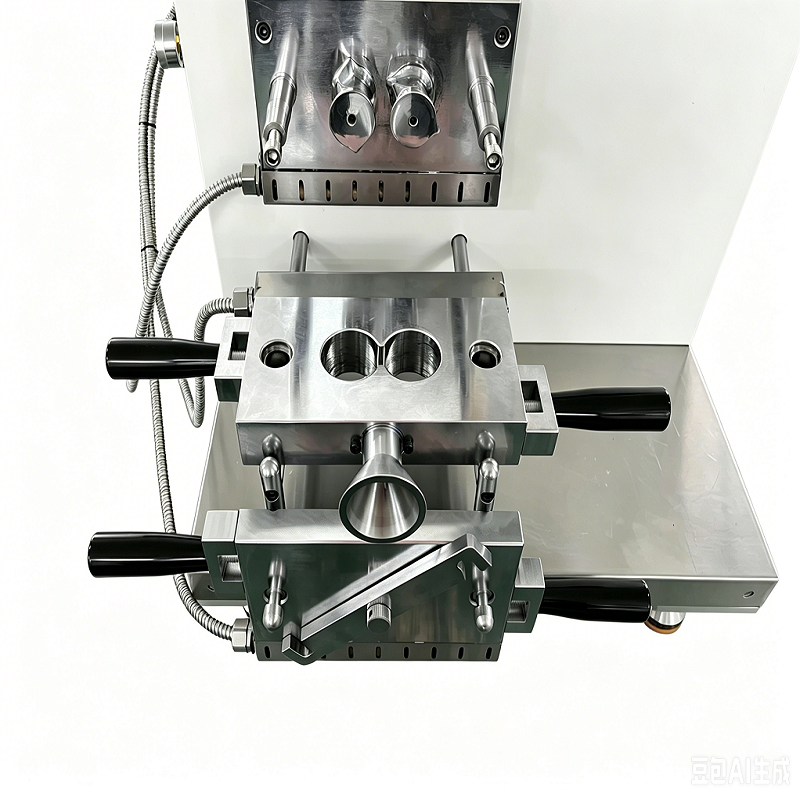

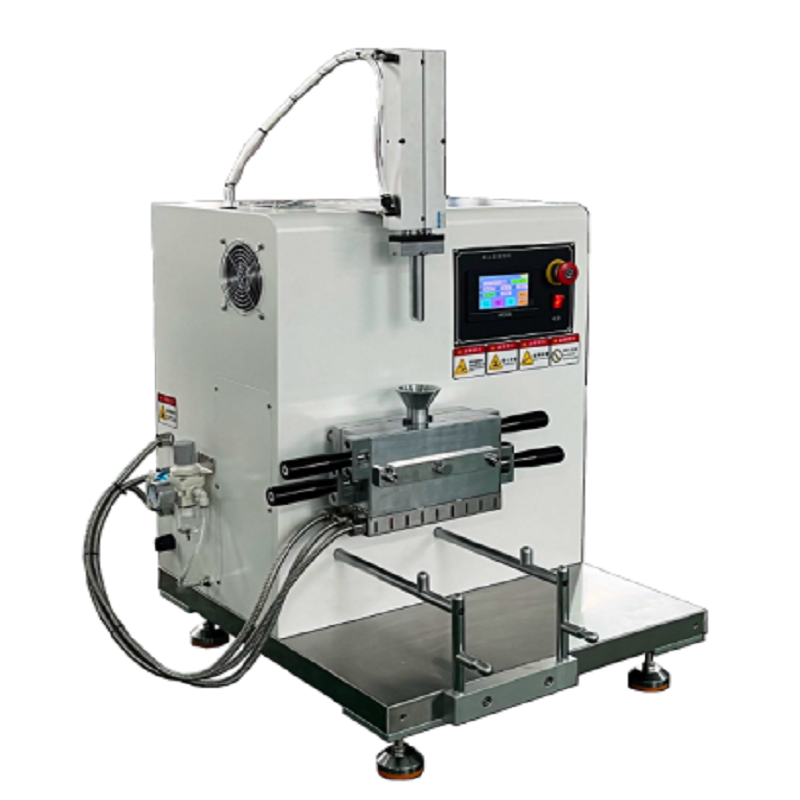

HT-TM-005 Table Mixer, High Precision Rubber Plastic Mixing Machine for Laboratory Use
Introduction:
The main function of the desktop manual open and close internal mixer is to make the product meet the quality and color required by the customer. In order to meet the customer's requirements, the experimental results and their ratios are used in the production line. This machine is also the equipment for mixing the experimental raw materials and compounding agents evenly. It can be electrically heated and air cooled.
Parameters:
Model | HT-TM-05 |
Mixing chamber capacity | 0.05L |
Temperature range | RT-300℃ |
Heating method | Electric heating |
Controller | PLC touch screen control |
Rotor speed ratio | 1:1.27 |
Rotor speed | Single frequency conversion speed regulation, 3-45 rpm adjustable |
Feeding method | Manual |
Rotor material | SKD Chrome-Molybdenum Alloy |
Rotor hardness | HRC60 surface hard chrome |
Mixing room | SKD chrome-molybdenum alloy material, inner surface hardness HRC60 mirror hard chrome |
Upper pressure weight | Pneumatic |
Main motor | 2.2KW |
Volume | 550*550*1100MM |
Power supply | 380V,3 phase,or 220V single phase |
Weight | Around 150kg |
Company Information:
Guangdong Hongtuo Instrument Technology Co.,Ltd has been specializing in density testing field on developing, innovating and producing since the year it was establised.
