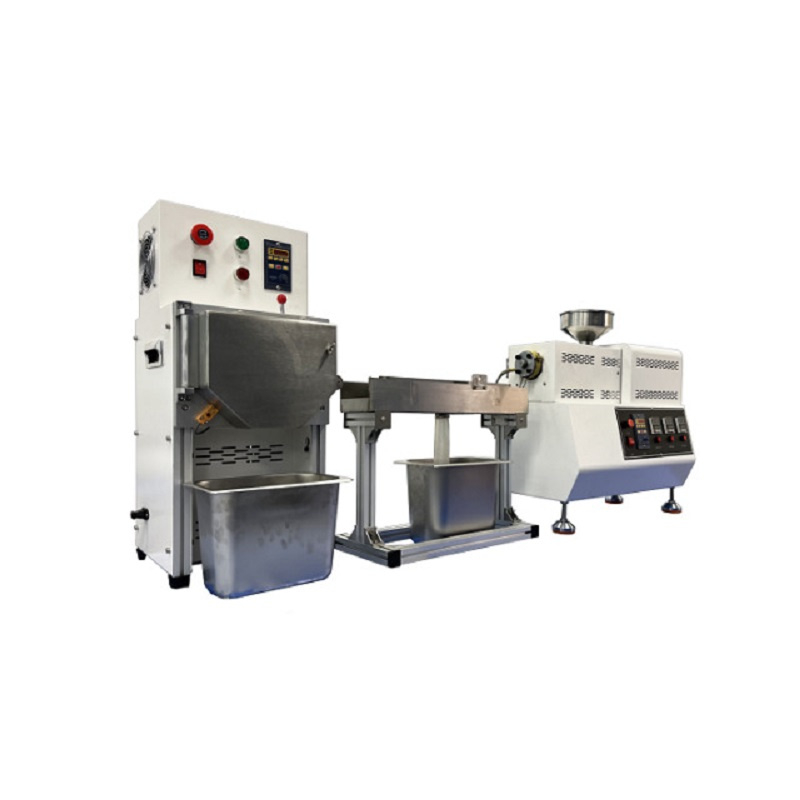

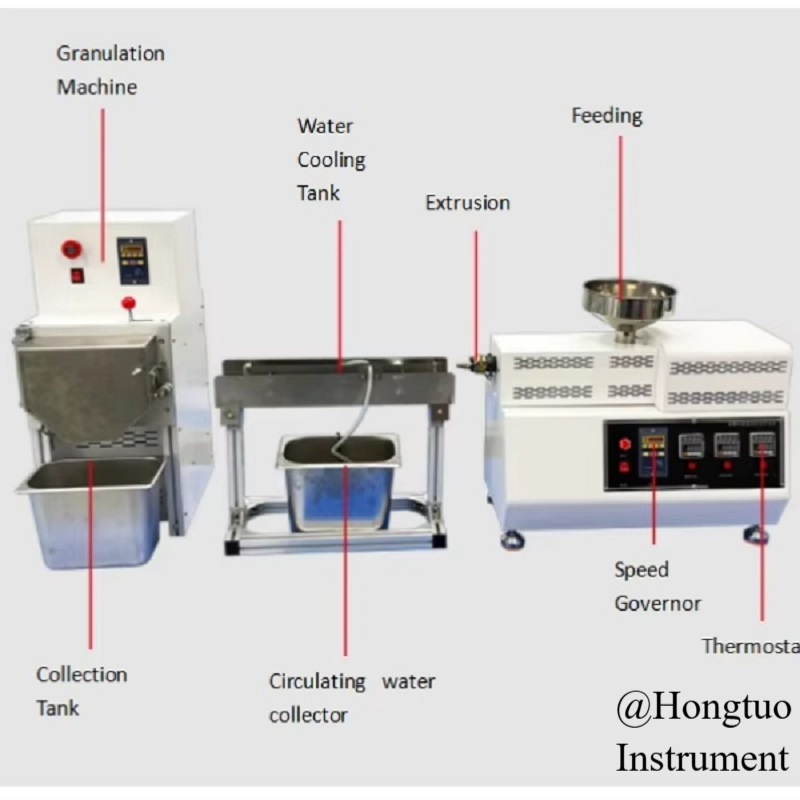

HT-SE-01 Laboratory Single Screw Extruder, High Precision Plastic Melt Extrusion Equipment with Cooling & Pelletizing Unit
Product performance
* Professionally manufactured screw and barrel, high processing precision, quality assurance
* Brand motor drive, stable and reliable screw speed control
* Particle size and coarseness can be adjusted. The material is fully plasticized and mixed in the screw.
Application scope
* Melting and plasticizing extrusion of materials
* Optimization of extrusion molding process parameters
* Establishment of small experimental lines for film, sheet, pipe, granulation, etc.
Parameter
Extruder part | |
Screw diameter | 16mm |
Design output | 0.1-3KG/h |
Extrusion center height | 300mm |
Extrusion Direction | Right → Left |
LD | 21:1 |
Heating temperature | Normal temperature -350℃ |
Screw barrel material | 38Crmola, Nitrided |
Temperature Zone | 3 Pcs |
Constant temperature cooling device | 3 Pcs |
Motor power | 400w |
Voltage | 220V 50HZ |
Machine size | 650mm*300mm*500mm |
Weight | 45kg |
Circulation cooling device part | |
Material | 304 stainless steel + aluminum alloy |
length | 300mm |
Flow | 60L/H |
Water Pump | 15W |
Water pipe material | Plastic |
Traction pelletizer part | |
Pelletizing speed | 0.1-3kg/h |
Motor power | 750W |
Knife wheel material | Alloy steel blade |
Control method | Button control |
Traction wheel | 1 set |
Size | Length 350* Width 450* Height 650mm |
Power supply | 220V 50HZ |
Weight | 45kg |
