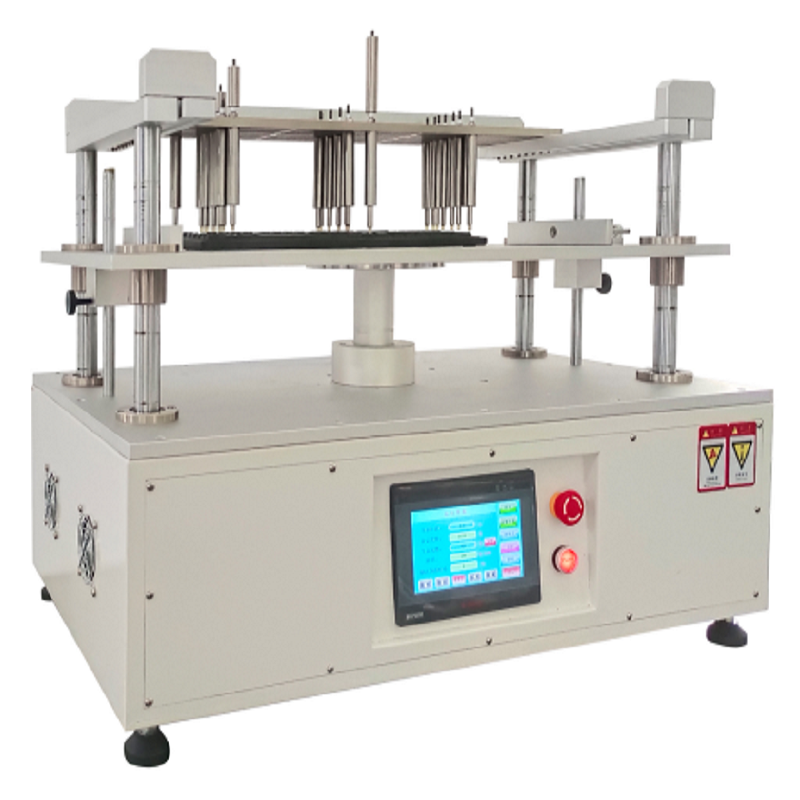

HT-KL-L Keyboard Key Life Durability Tester, Multi-station Electronic Button Fatigue Testing Equipment
Introduction:
This machine can test the durability of the keys and other buttons and switches of notebook computers, mobile phones, handheld computers, etc. It can test several products at the same time (each product can be tested at multiple points), and each key can be adjusted to different pressures and different high and low pressing forces. This machine is driven by a motor and controlled by a high-definition touch screen from Taiwan. The CNC processing error of the transmission processing parts of the whole machine is small, so it has low noise and low failure rate. It uses touch screen settings and has the advantages of convenient operation and observation.
Parameter:
Action stroke:10mm (fixed)
Workpiece height adjustment range:100mm
Clamp holding capacity:600×600mm
Probe installation range:500×500mm
Number of tests:99999999 times
Test speed:60-600Rpm
Load range:50-400g (50g probe, 50g, 100g, 200g each), or customized on demand
Probe height adjustment:15mm
Number of probes:15 standard (expandable, additional cost)
Minimum spacing between two probes:30mm in X direction, 42mm in Y direction
Appearance size:Approximately700×700×680mm
Weight:160kg
Voltage:AC 220V
Company Information:
Guangdong Hongtuo Instrument Technology Co.,Ltd has been specializing in density testing field on developing, innovating and producing since the year it was establised.
