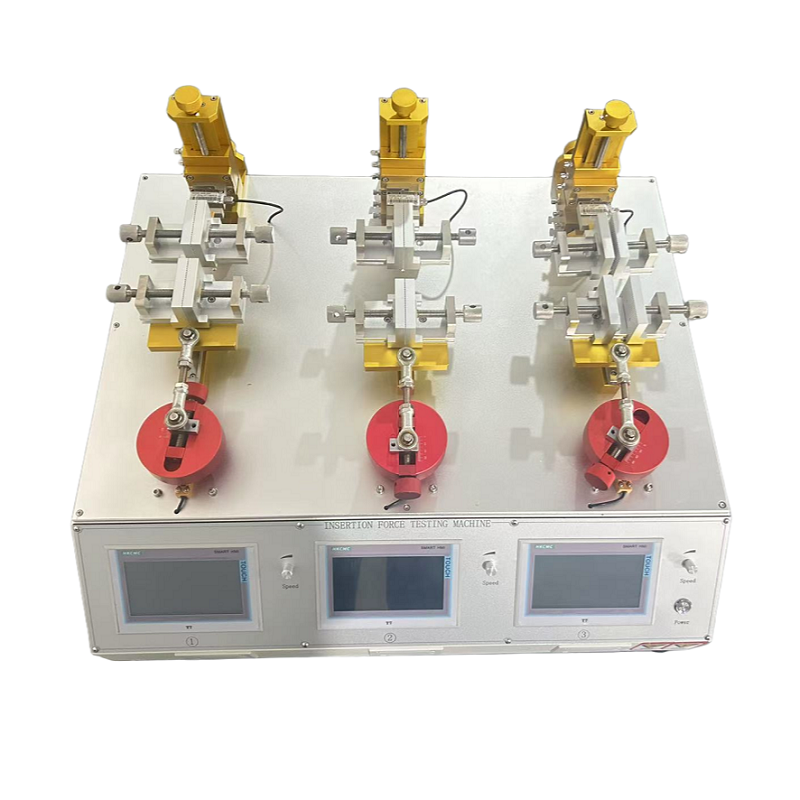

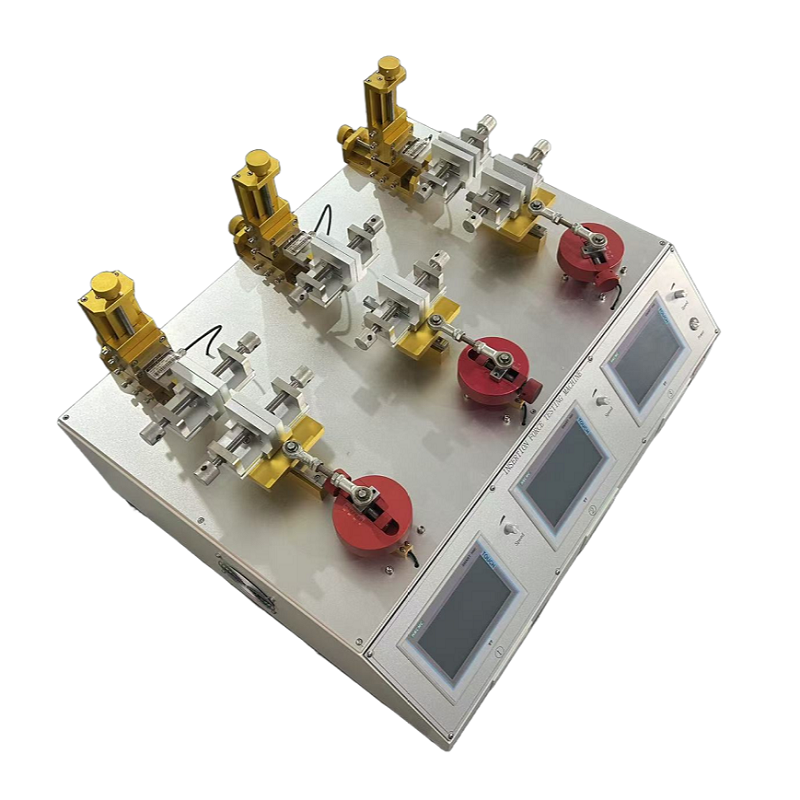

HT-IF-03 Horizontal Insertion Force Testing Machine Insertion and Extraction Life Tester

HT-IF-03 Horizontal Insertion Force Testing Machine Insertion and Extraction Life Tester

This machine is suitable for plugging and unplugging tests of various connectors. It adopts embedded microcomputer measurement and control technology, and can simultaneously display the insertion force, extraction force, and real-time force value. It also has the function of setting the number of times, adjustable speed and stroke, and can display the speed value, automatically return to zero, unit conversion, etc. The rotating eccentric wheel power design makes the test speed and test stroke no longer related, and the test of connectors with long and short strokes is equally fast.

Main Technical Parameters:

1. Test station: Three stations are independently controlled

2. Transmission mode: Rotating eccentric wheel

3. Display mode: Touch screen real-time display

4. Insertion and extraction force range: 0~5/10/20/50kg optional

5. Minimum resolution: 0.01kg

6. Stroke adjustment range: 0~60MM

7. Test speed: 5~60 times/minute (digital display)

8. Number range: 0~999999

9. Two unit conversions: N, KG

10. Dimensions: 750(D)*650(W)*540(H)mm

11. Working voltage: Single-phase 220V
