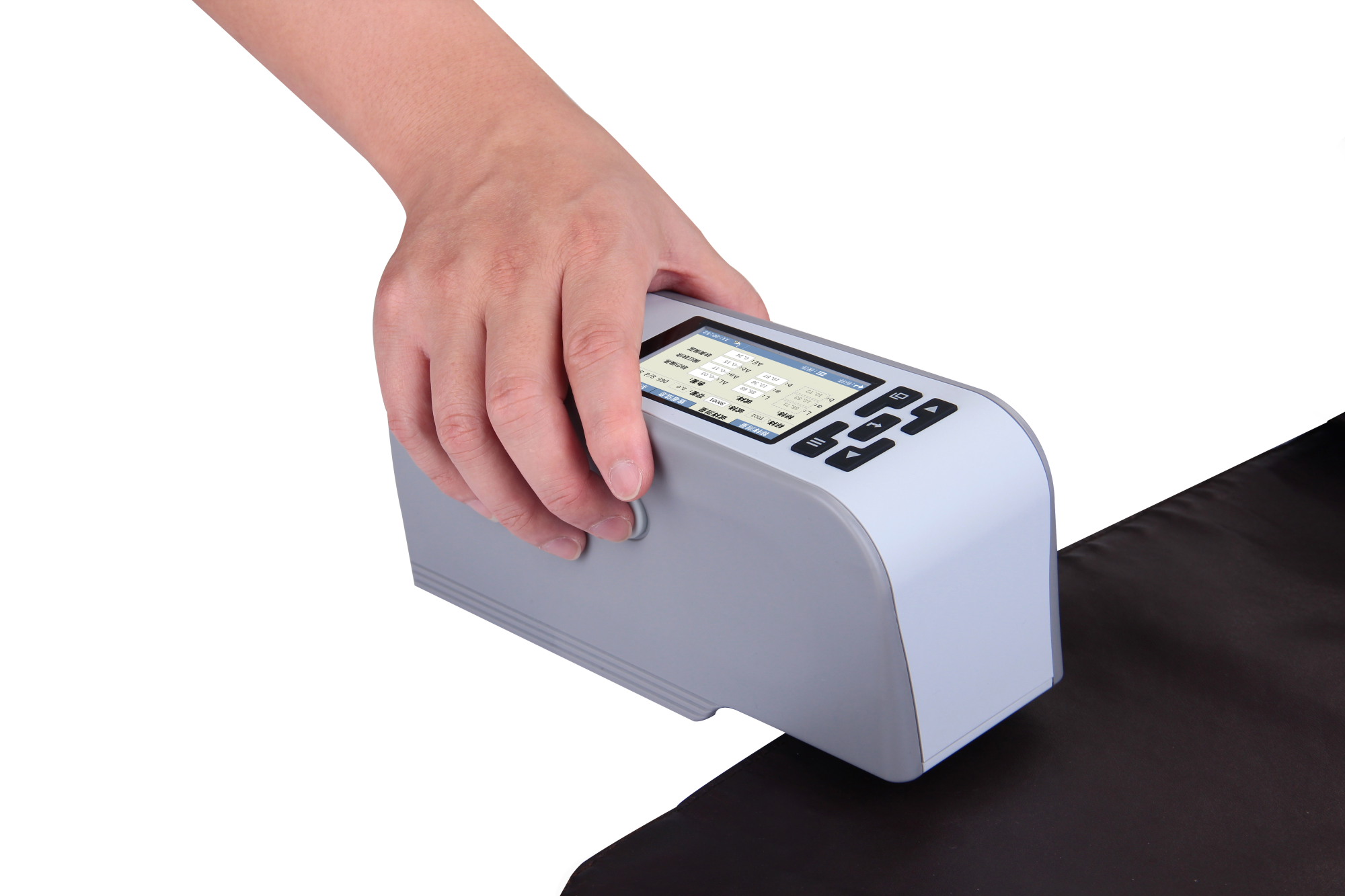

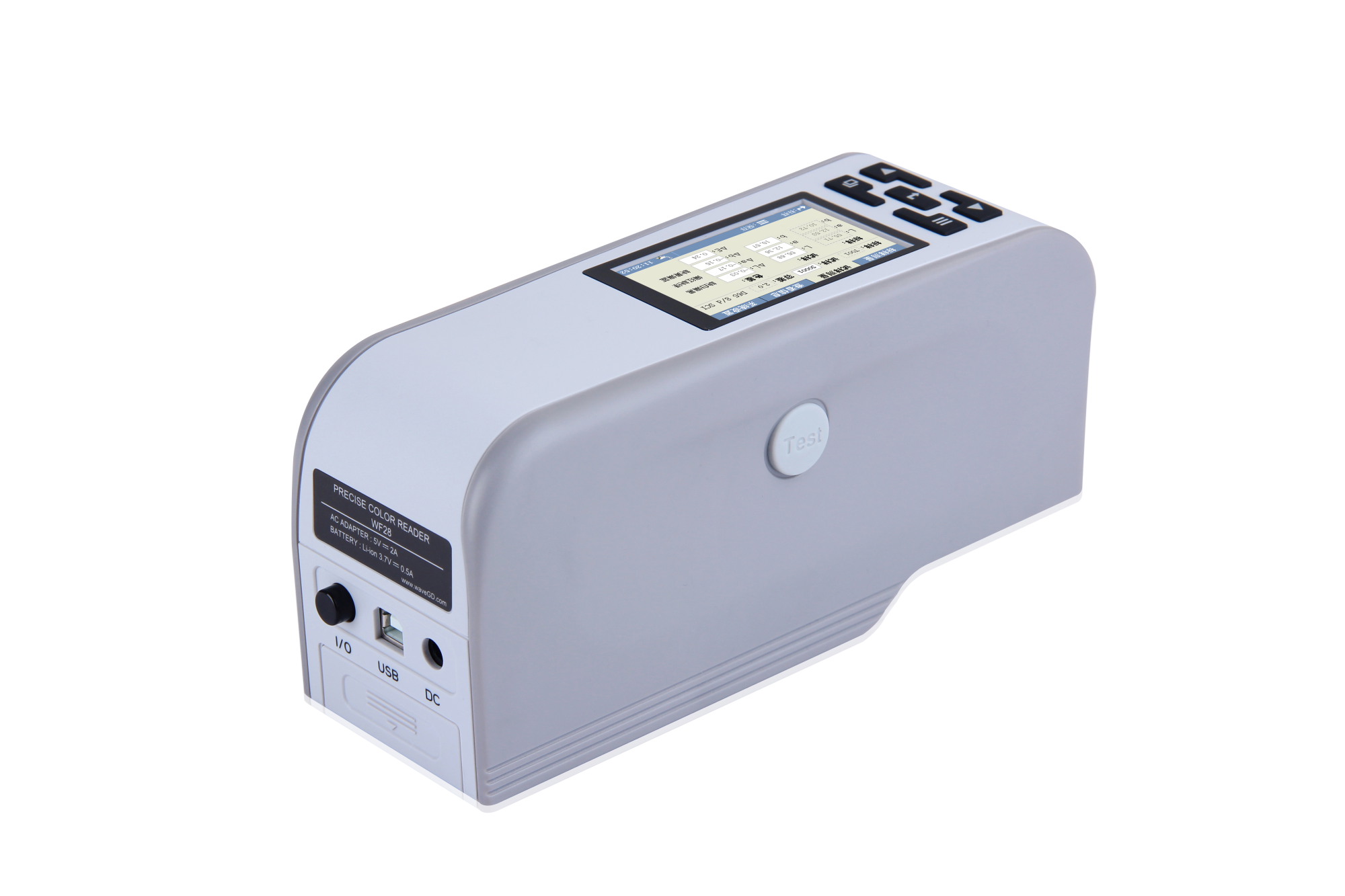

DH-WF28 CIELAB CIELCH Color Meter Instrument Φ8mm Measurement Caliber Cheap Colorimeter
Description：
Caliber 8mm version is a general-purpose color difference meter, mostly used on flat surface considering the general method for detecting color, all walks of life habit, and the measuring caliber requirements of various materials. 8mm caliber version provides great convenience and trustworthy reliability for all industry to discuss the color technology, because of its versatility, its tiny table difference, and stability.
Feature：
Display Mode:CIELAB、CIELCH
Color Difference Formula:△E*ab
Illumination Condition:CIE Recommendation：8/d
Light Source:LED blue excitation
Sensor:Photodiode array
Measurement Caliber:φ8mm
Measurement Condition:
Observer：CIE 10° Standard observer
Light source: D65
Contain light way：SCI SCE
Measurement Range:L: 0 to 100
Repeated Accuracy:△E<0.07(take the deviation average after 30 times measuring the whiteboard)
Table Difference:△E<0.2
Measurement Interval:0.5 Sec.
Storage Capacity:Type sample data : 100 with testing sample data: 200
Language Patterns:Simplified Chinese/English
Battery Charging Time:8 hrs
Battery:Li-ion battery, 5000 times Measurement
Lifetime of Bulb:5 years more than 1.6 million measurements
Display Screen:TFT true color 2.8inch@(16:9) Resolution ratio:400x240
Interface of External:RS-232 (115200bps)- connected with micro printer
Working Temperature Range 0℃-40℃（32℉-104℉）
Storage Temperature Range -20℃-50℃（-4℉-122℉）
Humidity Range Relative humidity less than 85%,without condensation
Weight 700g
Size 199*68*90mm
Size of Exterior Package 400*240*340mm
Standard Accessories 3000mAH Li-ion battery/AC adapter/User manual/Warranty card
Optional Accessories Flour measuring device/Liquid measuring device/Micro printer
