DH-TH-09
Dahometer
1 set
5-7 days
1 years,Lifelong maintenance
TT/Western Union/Paypal etc
Negotiable
Availability: | |
---|---|
Quantity: | |

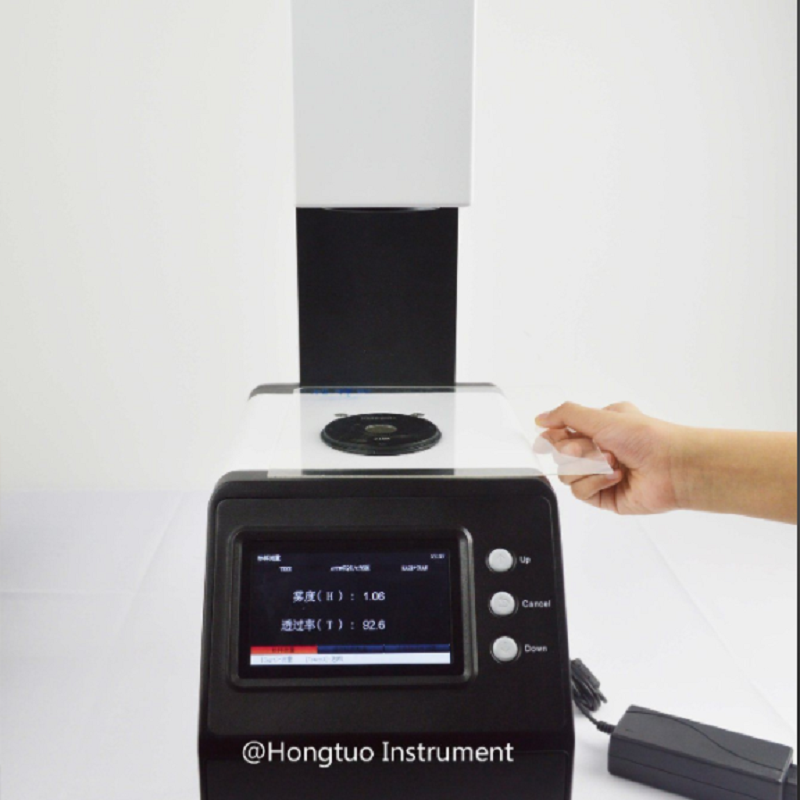

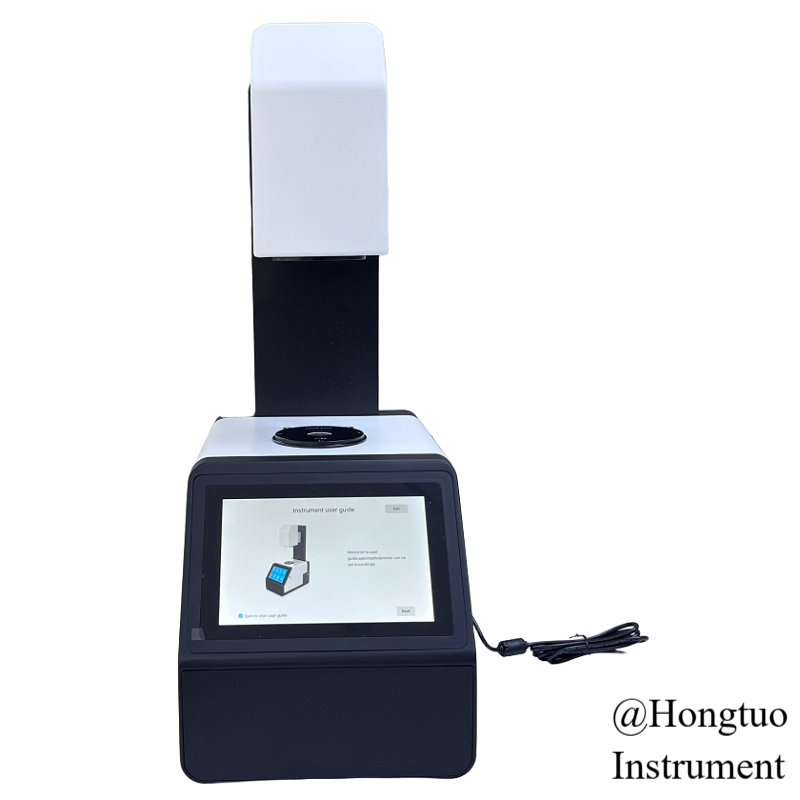

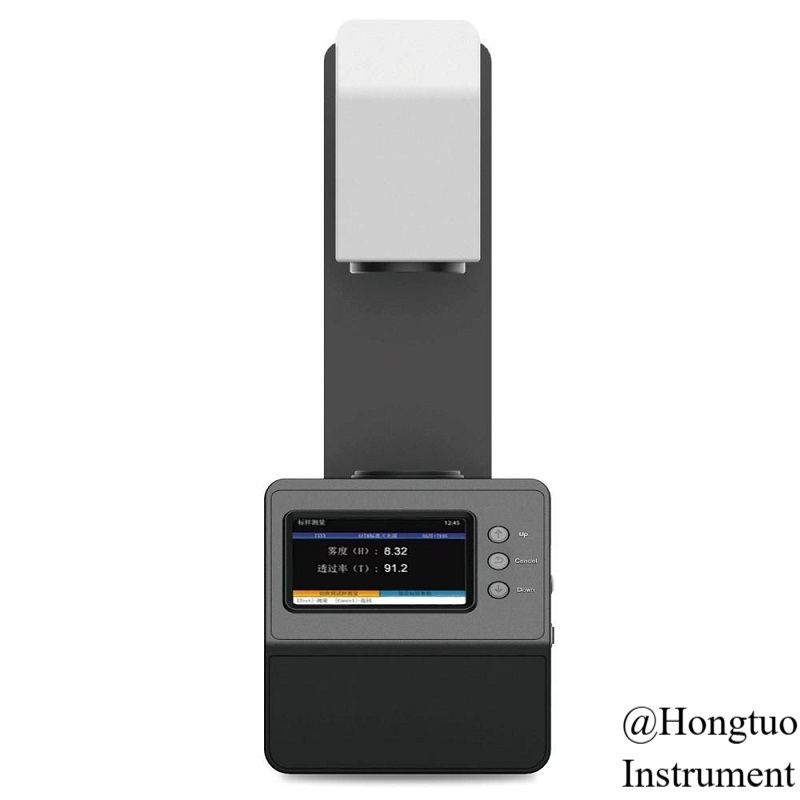

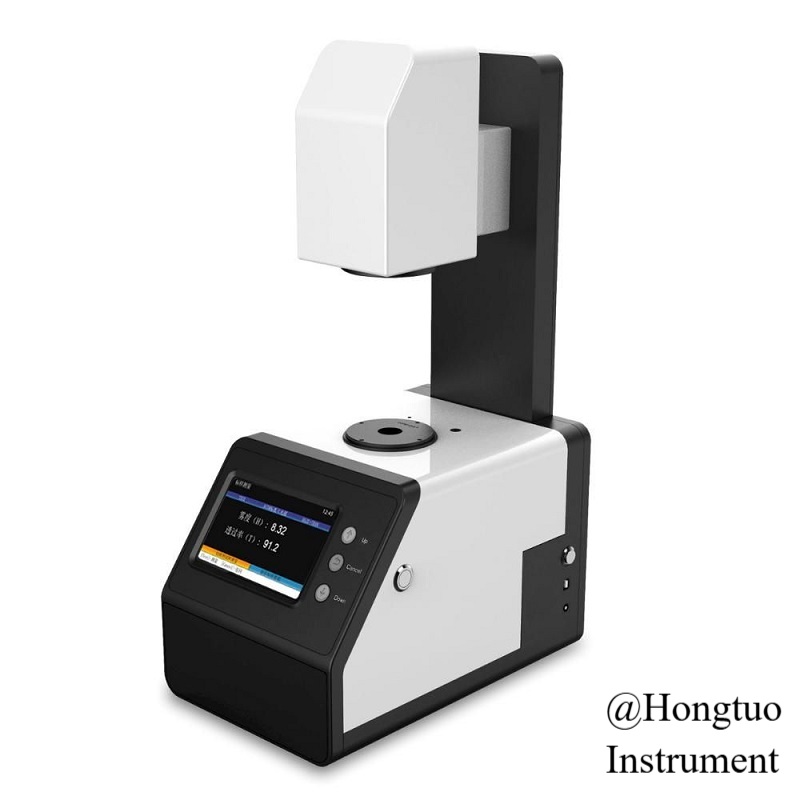

Lab Haze Meter Hazemeter Digital Haze Meter Plastic Film Light Haze Transparency Transmittance Tester Price DH-TH-09
Part 1. Instrument Advantages
1). It conforms to international standards GB/T 2410, ASTM D1003/D1044 and with a calibration certification from a third party laboratory.
2). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.
3). Two kinds of illuminants A,C for haze and total transmittance measurement.
4). 21mm test aperture.
5). Open measurement area, no limit on sample size.

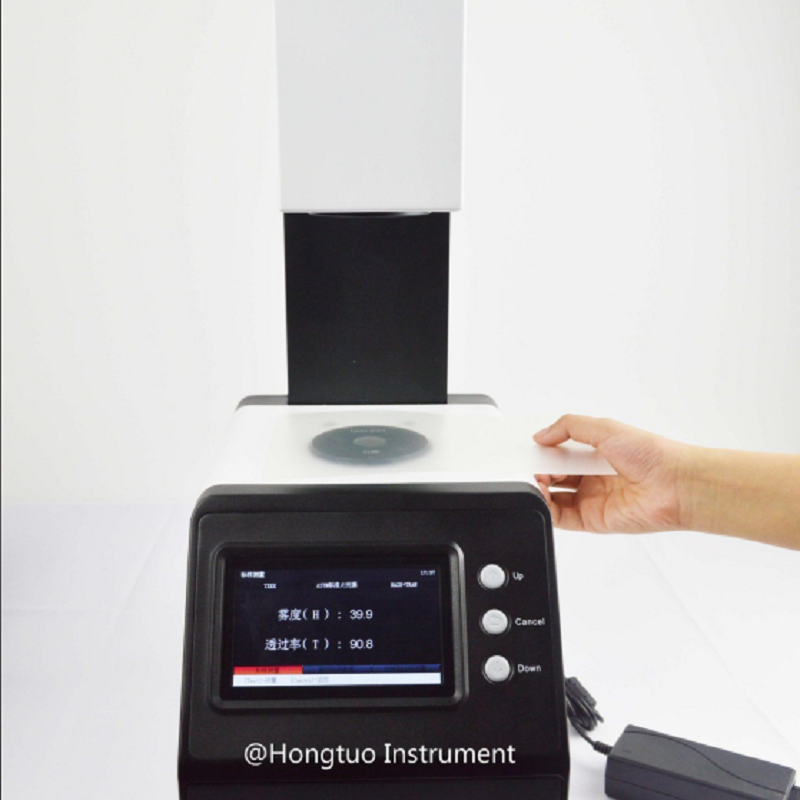

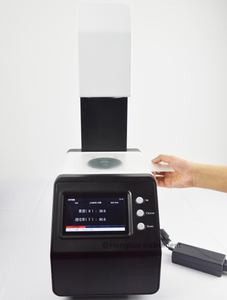

6). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.
7). It adopts LED light source whose lifetime can reach 10 years.
Part 2. Technical Data
Model | Basic Edition Haze Meter |
Character | ASTM D1003/D1044 standard for haze and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic , film, display screen, packaging and other industries. |
Illuminants | A,C |
Standards | ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136 |
Test Parameter | ASTM (HAZE),Transmittance(T) |
Test Aperture | 21mm |
Instrument Screen | 5 inches color LCD screen |
Haze Repeatability | Φ21mm aperture, Standard Deviation: within 0.1(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration) |
Transmittance Repeatability | ≤0.1 unit |
Geometry | Transmittance 0/D (0 degree illumination, diffused receiving) |
Integrating Sphere Size | Φ154mm |
Light Source | 400~700nm full spectrum LED light source |
Test Range | 0-100% |
Haze Resolution | 0.01 unit |
Transmittance Resolution | 0.01 unit |
Sample Size | Open space, no size limit |
Data Storage | 10,000 pcs of samples |
Interface | USB |
Power Supply | DC12V (110-240V) |
Working Temperature | +10 – 40 °C (+50 – 104 °F) |
Storage Temperature | 0 – 50 °C (+32 – 122 °F) |
Instrument Size | L x W x H: 310mmX215mmX540mm |
Part 3. Haze Meter Application
Part 4. Technical Support
1. One year warranty.
Lab Haze Meter Hazemeter Digital Haze Meter Plastic Film Light Haze Transparency Transmittance Tester Price DH-TH-09
Part 1. Instrument Advantages
1). It conforms to international standards GB/T 2410, ASTM D1003/D1044 and with a calibration certification from a third party laboratory.
2). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.
3). Two kinds of illuminants A,C for haze and total transmittance measurement.
4). 21mm test aperture.
5). Open measurement area, no limit on sample size.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.
7). It adopts LED light source whose lifetime can reach 10 years.
Part 2. Technical Data
Model | Basic Edition Haze Meter |
Character | ASTM D1003/D1044 standard for haze and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic , film, display screen, packaging and other industries. |
Illuminants | A,C |
Standards | ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136 |
Test Parameter | ASTM (HAZE),Transmittance(T) |
Test Aperture | 21mm |
Instrument Screen | 5 inches color LCD screen |
Haze Repeatability | Φ21mm aperture, Standard Deviation: within 0.1(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration) |
Transmittance Repeatability | ≤0.1 unit |
Geometry | Transmittance 0/D (0 degree illumination, diffused receiving) |
Integrating Sphere Size | Φ154mm |
Light Source | 400~700nm full spectrum LED light source |
Test Range | 0-100% |
Haze Resolution | 0.01 unit |
Transmittance Resolution | 0.01 unit |
Sample Size | Open space, no size limit |
Data Storage | 10,000 pcs of samples |
Interface | USB |
Power Supply | DC12V (110-240V) |
Working Temperature | +10 – 40 °C (+50 – 104 °F) |
Storage Temperature | 0 – 50 °C (+32 – 122 °F) |
Instrument Size | L x W x H: 310mmX215mmX540mm |
Part 3. Haze Meter Application
Part 4. Technical Support
1. One year warranty.
