GB 7544-2009 ASTM D3078 YBB00122002-2015 Sealing Testing Machine For Lab
Introduction

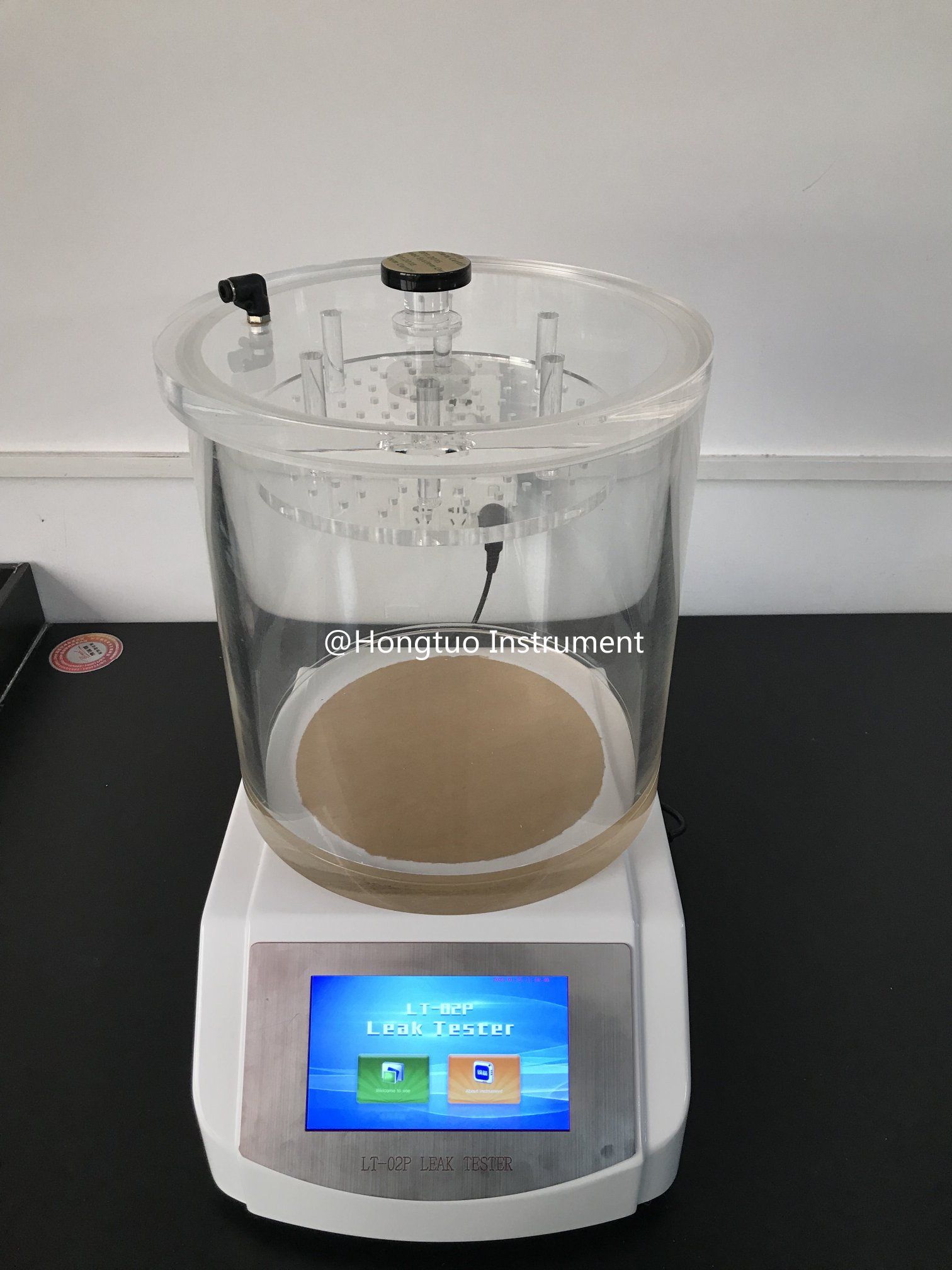

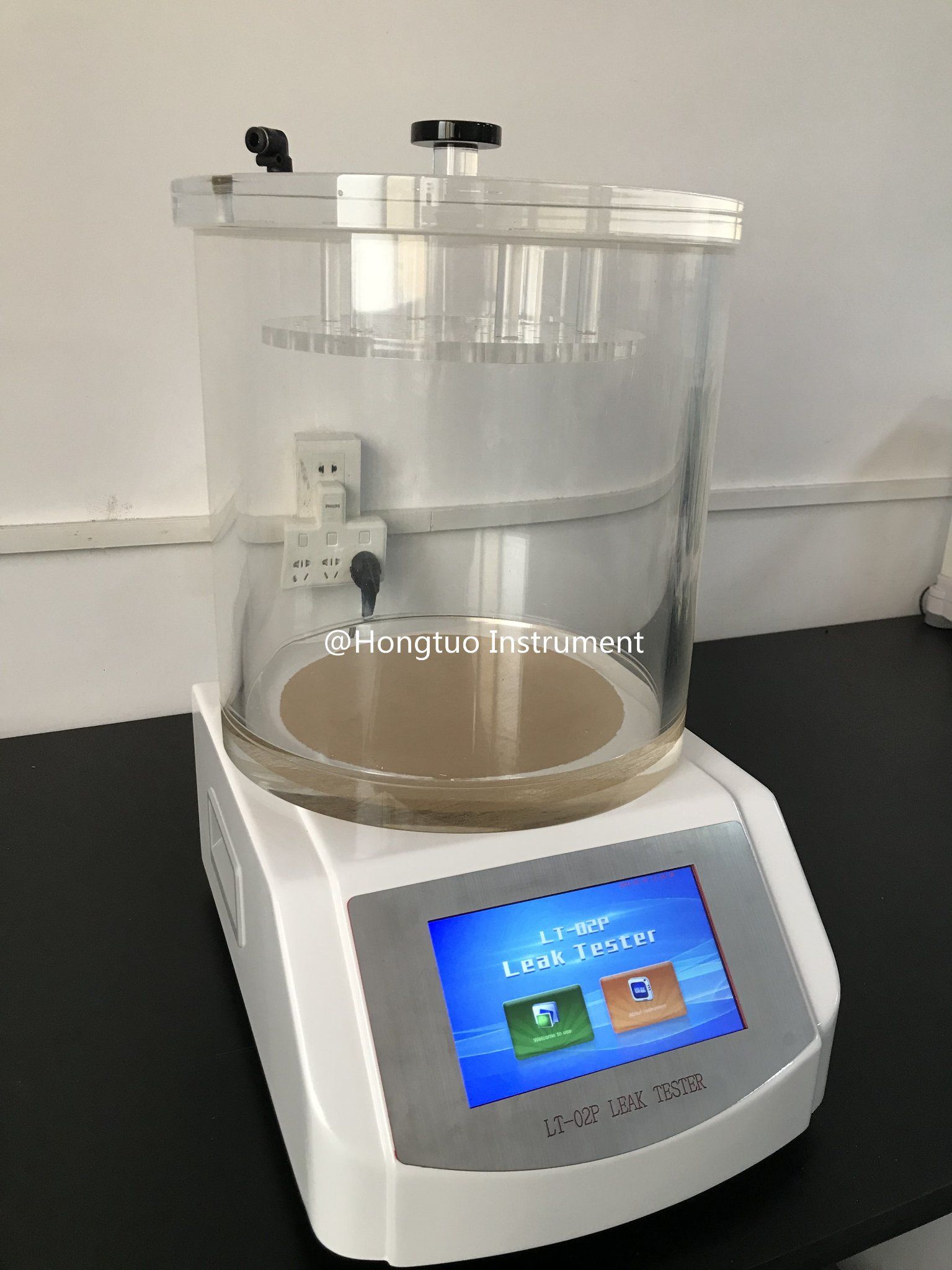

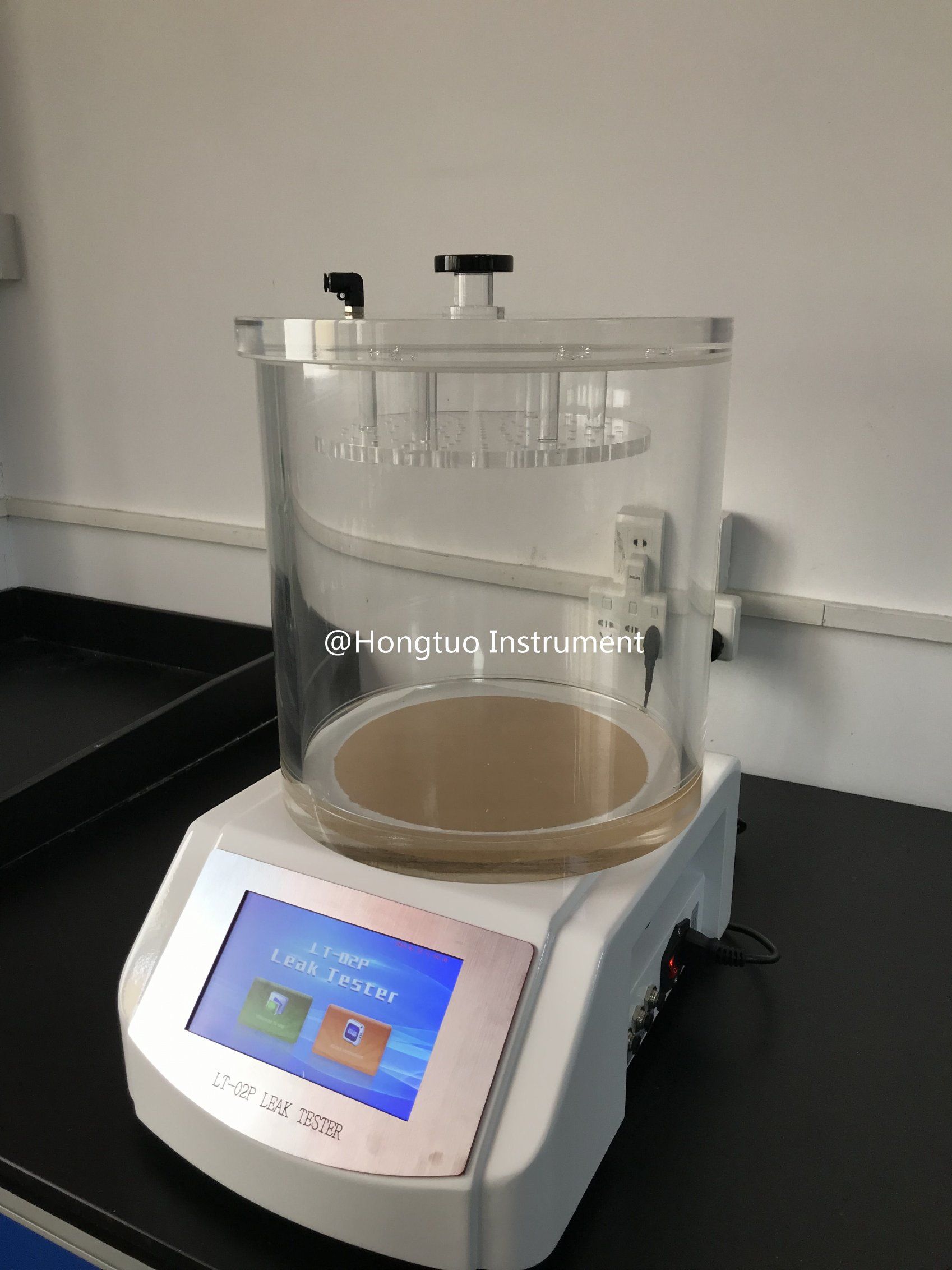

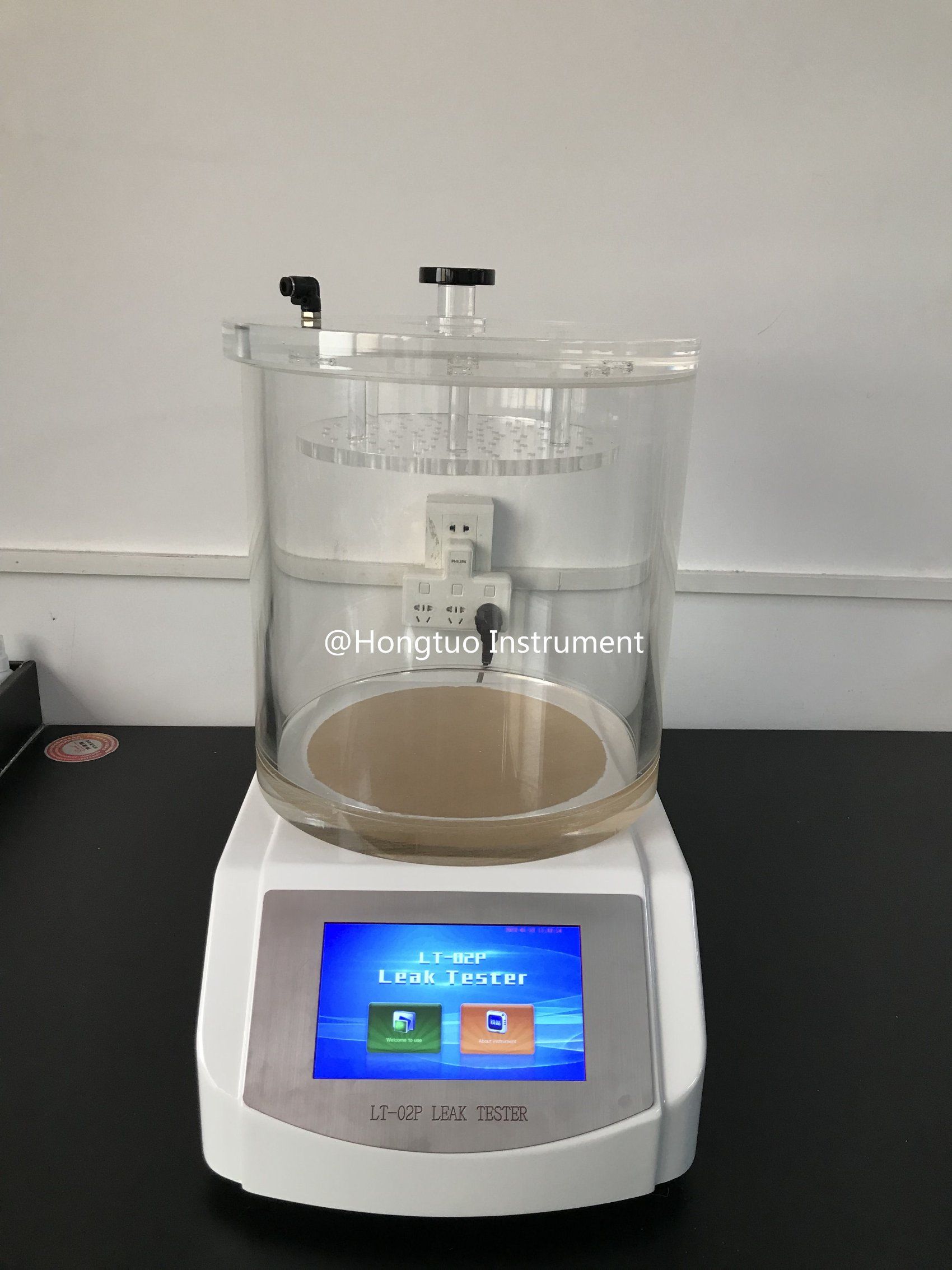

Leak Test Apparatus is a solid state instrument designed for the leakage testing of food, drug and other industrial chemical products. The instrument is used to test the quality of packing processes in strips, blisters and sachets containing tablets, granulates and liquids.
Features
● Fully automatic test process with one click to complete the test
● Built-in high precision sensor, faster response
● Various modes available to meet the testing needs of different samples
● Multiple parameters presets for each mode, quick selection for testing
● Double air path design, more accurate test
● The number of test groups can be accumulated automatically, and the number of tests can be counted
● Optional needle printer can save and print test results
● Up to 500 test results can be saved with printing function (optional)
● Vacuum degree automatic maintenance and back-blowing unloading
● Super thick plexiglass vacuum chamber
● Configuration pressure regulating system, easy operation, easy maintenance
● Three level management authority (to be purchased separately)
● Gradient booster mode, more humanized
● Real-time stop, pressure holding time, higher accuracy
Parameter：
| Index | Parameter |
Vacuum | 0~90 Kpa |
Response speed | ＜5 ms |
Resolution | 0.01 Kpa |
| Sensor precision | ≤0.5class |
Built-in mode | Single point mode, increment mode |

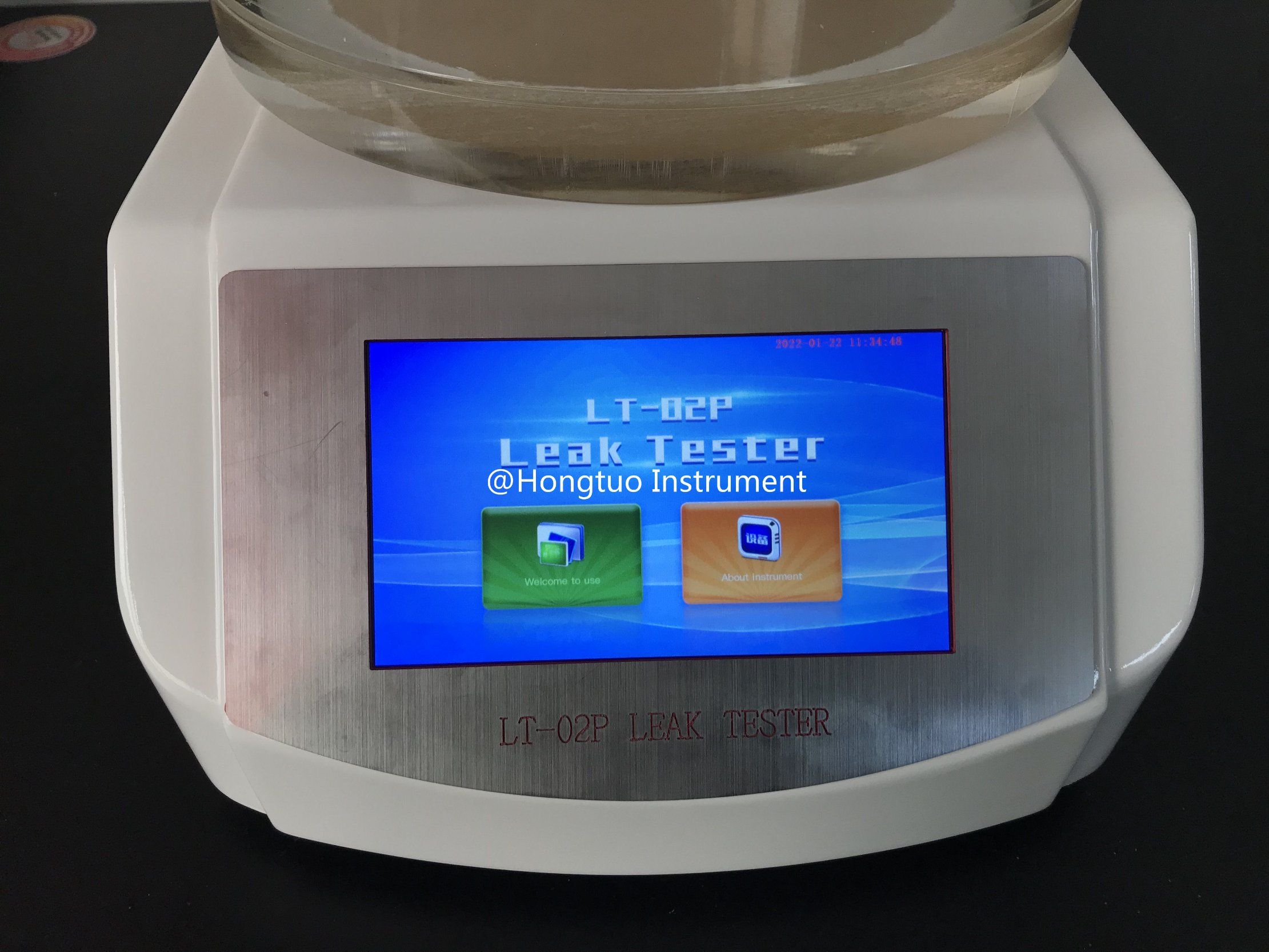

Screen | 7-inch touch screen |
Pressure regulation range | 0.2-0.7 Mpa |
Interface size | Φ6 |
Pressure holding time | 0-999999 s |
| Vacuum chamber (other size customized) Φ270 mmx210 mm (H) ,Φ360 mmx585mm (H) ,Φ460 mmx330mm (H) | |
Equipment size | 420（L）X 300（B）X 165（H）mm |
Air source | Compressed air (supplied by user) |
Printer(optional) | Needle type |
Standards
YBB00052005-2015, GB/T 15171，GB/T27728-2011, GB 7544-2009, ASTM D3078, YBB00122002-2015
GB 7544-2009 ASTM D3078 YBB00122002-2015 Sealing Testing Machine For Lab
Introduction
Leak Test Apparatus is a solid state instrument designed for the leakage testing of food, drug and other industrial chemical products. The instrument is used to test the quality of packing processes in strips, blisters and sachets containing tablets, granulates and liquids.
Features
● Fully automatic test process with one click to complete the test
● Built-in high precision sensor, faster response
● Various modes available to meet the testing needs of different samples
● Multiple parameters presets for each mode, quick selection for testing
● Double air path design, more accurate test
● The number of test groups can be accumulated automatically, and the number of tests can be counted
● Optional needle printer can save and print test results
● Up to 500 test results can be saved with printing function (optional)
● Vacuum degree automatic maintenance and back-blowing unloading
● Super thick plexiglass vacuum chamber
● Configuration pressure regulating system, easy operation, easy maintenance
● Three level management authority (to be purchased separately)
● Gradient booster mode, more humanized
● Real-time stop, pressure holding time, higher accuracy
Parameter：
| Index | Parameter |
Vacuum | 0~90 Kpa |
Response speed | ＜5 ms |
Resolution | 0.01 Kpa |
| Sensor precision | ≤0.5class |
Built-in mode | Single point mode, increment mode |
Screen | 7-inch touch screen |
Pressure regulation range | 0.2-0.7 Mpa |
Interface size | Φ6 |
Pressure holding time | 0-999999 s |
| Vacuum chamber (other size customized) Φ270 mmx210 mm (H) ,Φ360 mmx585mm (H) ,Φ460 mmx330mm (H) | |
Equipment size | 420（L）X 300（B）X 165（H）mm |
Air source | Compressed air (supplied by user) |
Printer(optional) | Needle type |
Standards
YBB00052005-2015, GB/T 15171，GB/T27728-2011, GB 7544-2009, ASTM D3078, YBB00122002-2015
