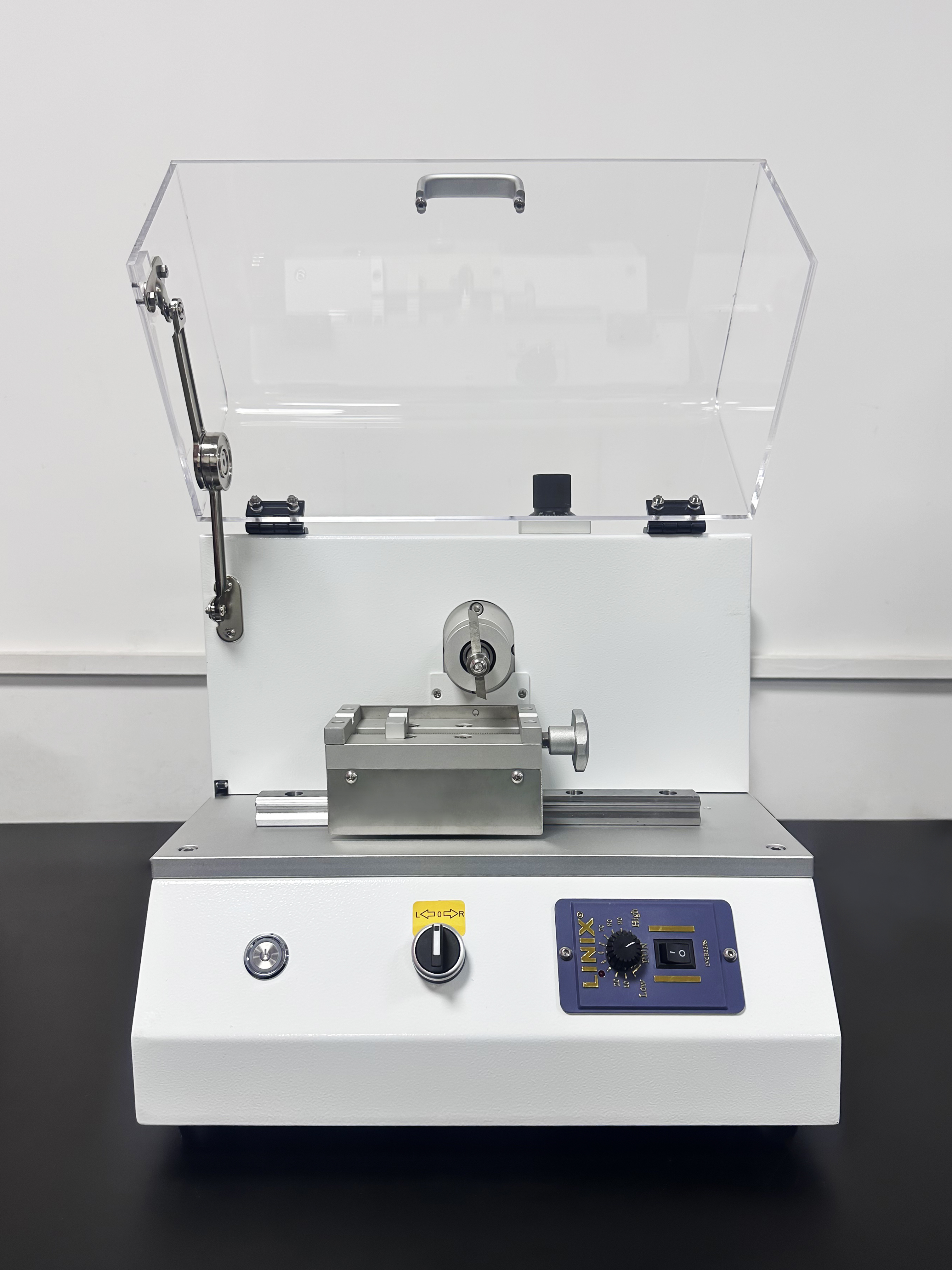

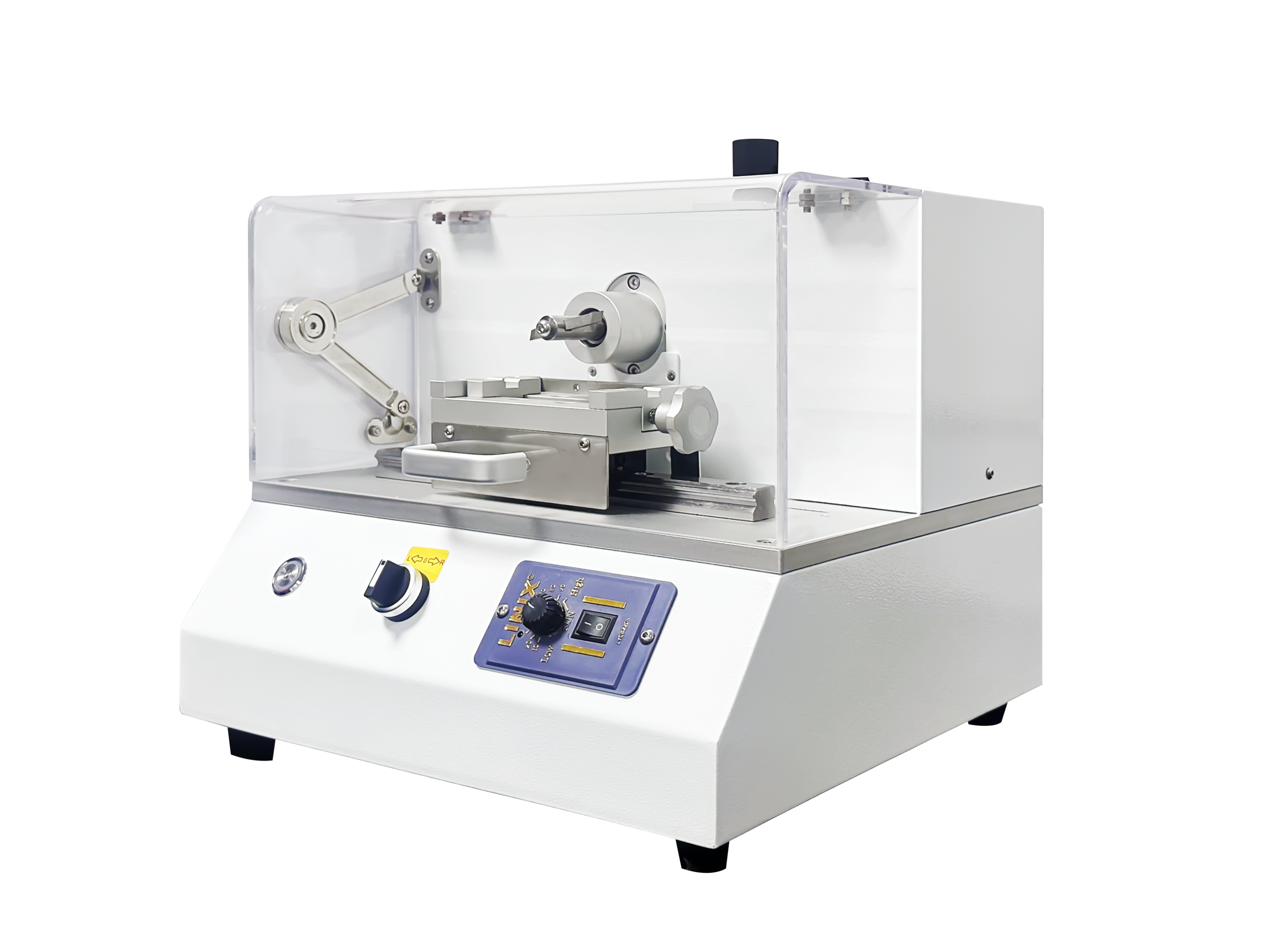

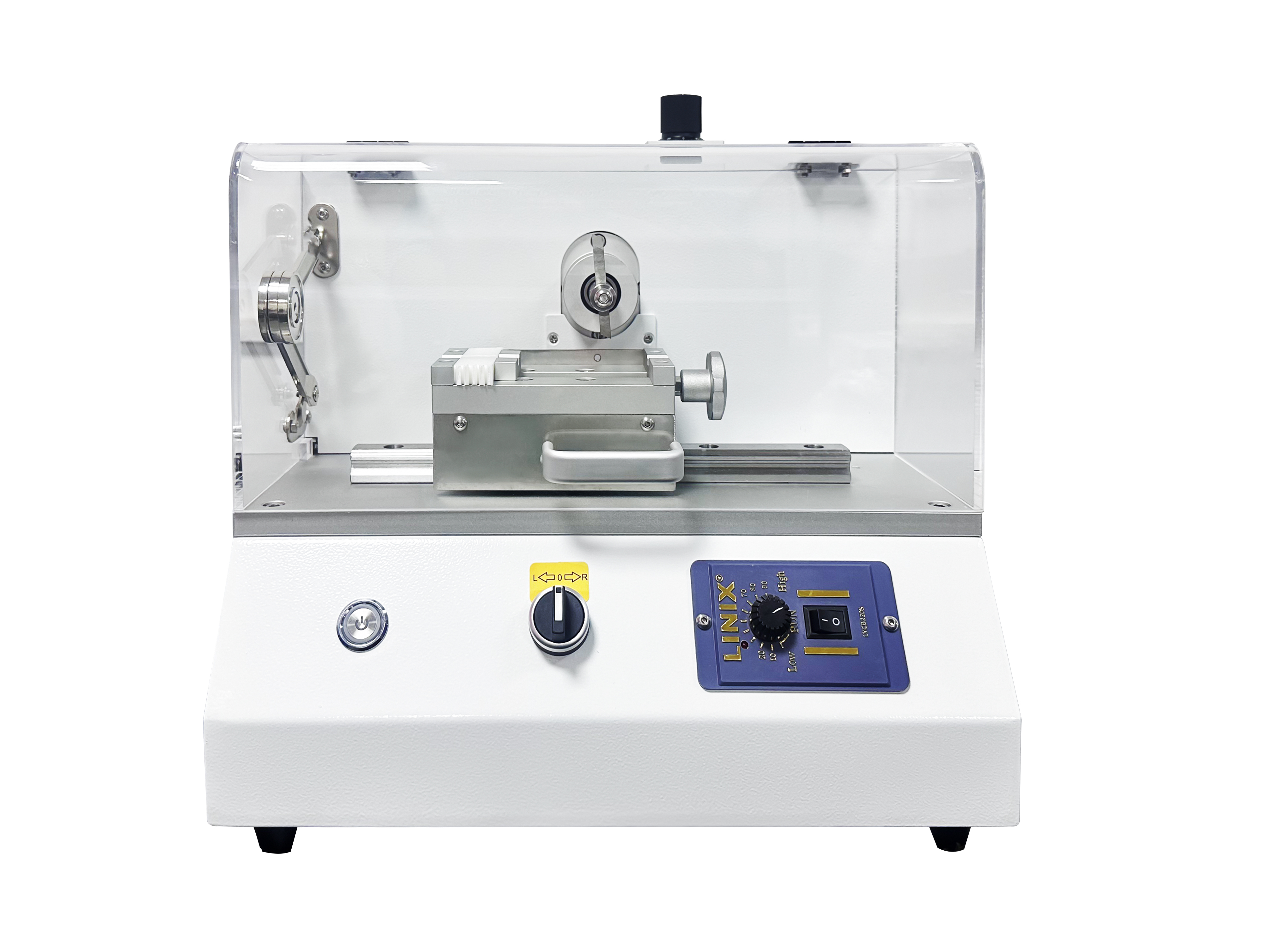

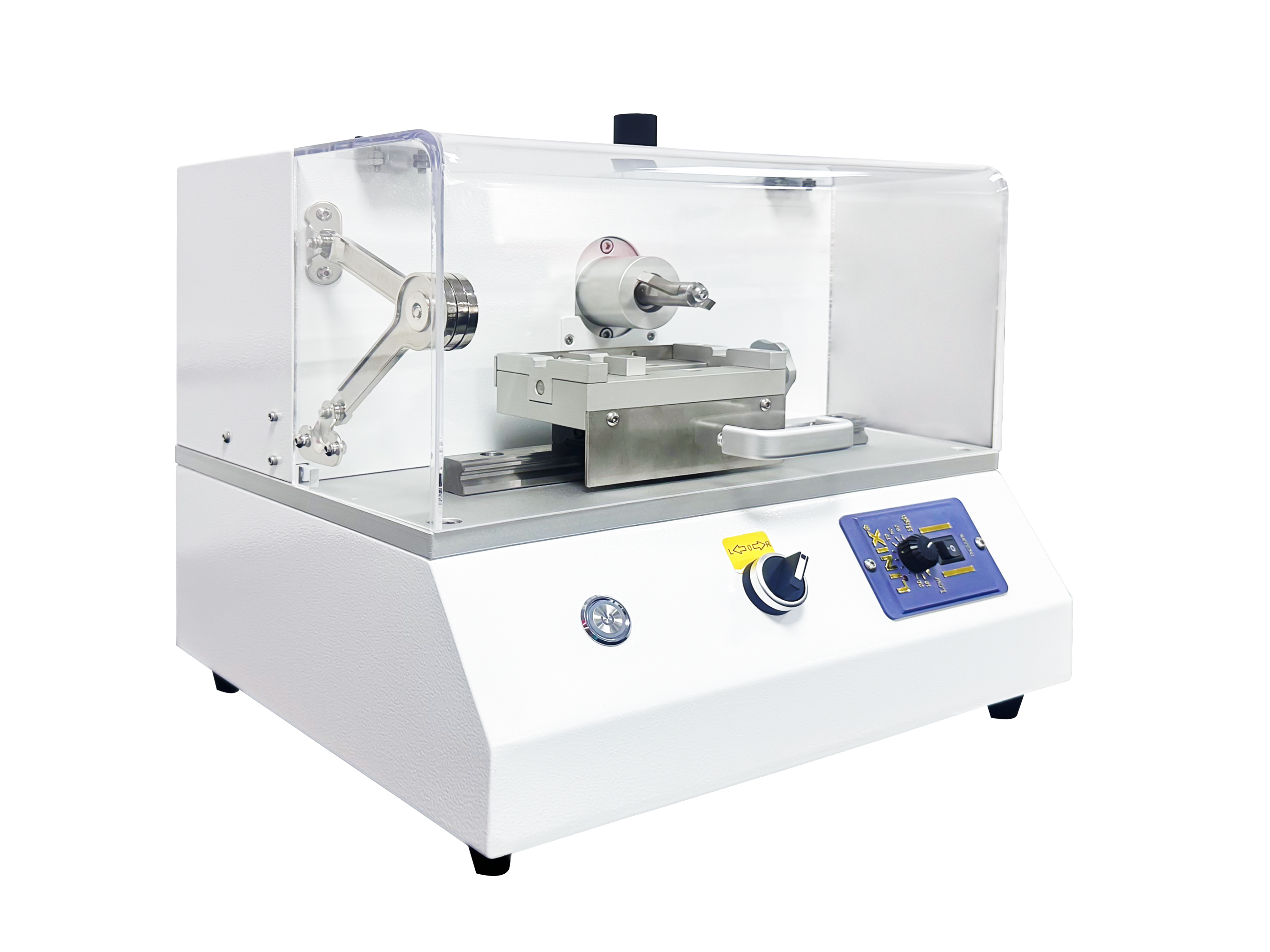

HT-1600-AU Automatic Type Electronic Notching Machine, Notch Sampler Instrument Laboratory Notch Sampler Produce Machine

Share to:
sharethis sharing button
Workbench stroke:>160mm
Feed speed:30mm/min
Sample type:Ⅰmodel, Ⅱ model, Ⅲ model
Notch type: A Model, B Model (optional), C Model (optional)
  • HT-1600-AU

  • Dahometer

  • 1 set

  • 5-7 days

  • 1 years,Lifelong maintenance

  • TT/Western Union/Paypal etc

  • Negotiable

Availability:
Quantity:

HT-1600-AU Automatic Type Electronic Notching Machine, Notch Sampler Instrument  Laboratory Notch Sampler Produce Machine


1. Product Model:  HT-1600-AU


2. Application Field:

The electronic notching machine is used for the sample preparation of the non-metallic material when it is did the impact toughness testing by izod impact tester or the charpy impact tester, can be used for scientific research institutions, universities and colleges, non-metallic materials production plants and other units of the laboratory to make notch samples.


3. Basic Standard:

ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"

GB/T1843 "Izod Impact Test Method for Rigid Plastics"

JB/T8761 "Plastic Izod Impact Testing Machine"

ASTM D256 "Test method for determining the impact strength of plastic IZOD pendulum"

ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"

GB/T1043 "Rigid Plastic Charpy Impact Test Method"

JB/T8762 "Plastic Charpy Impact Testing Machine"



4.Specifications:

1.Workbench stroke: >160mm

2.Feed speed: 30mm/min

3.Sample type:Ⅰmodel, Ⅱ model, Ⅲ model

4.Notch type: A Model, B Model (optional), C Model (optional)

5.Cutting tool parameters of notching machine:

A Model 45°±1° r=0.25mm±0.05mm

B Model 45°±1° r=1.0mm±0.05mm

C Model 45°±1° r=0.1mm±0.02mm
