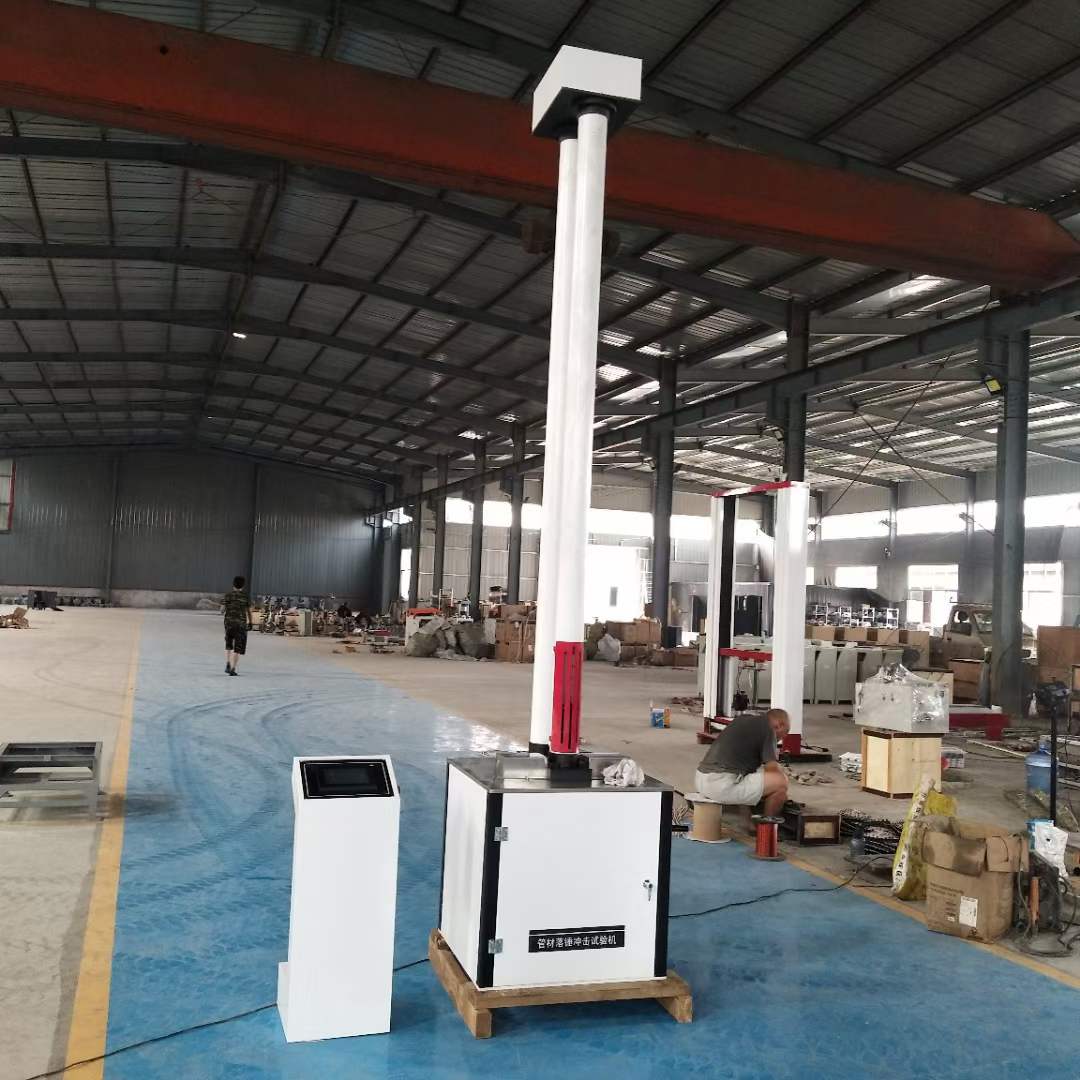

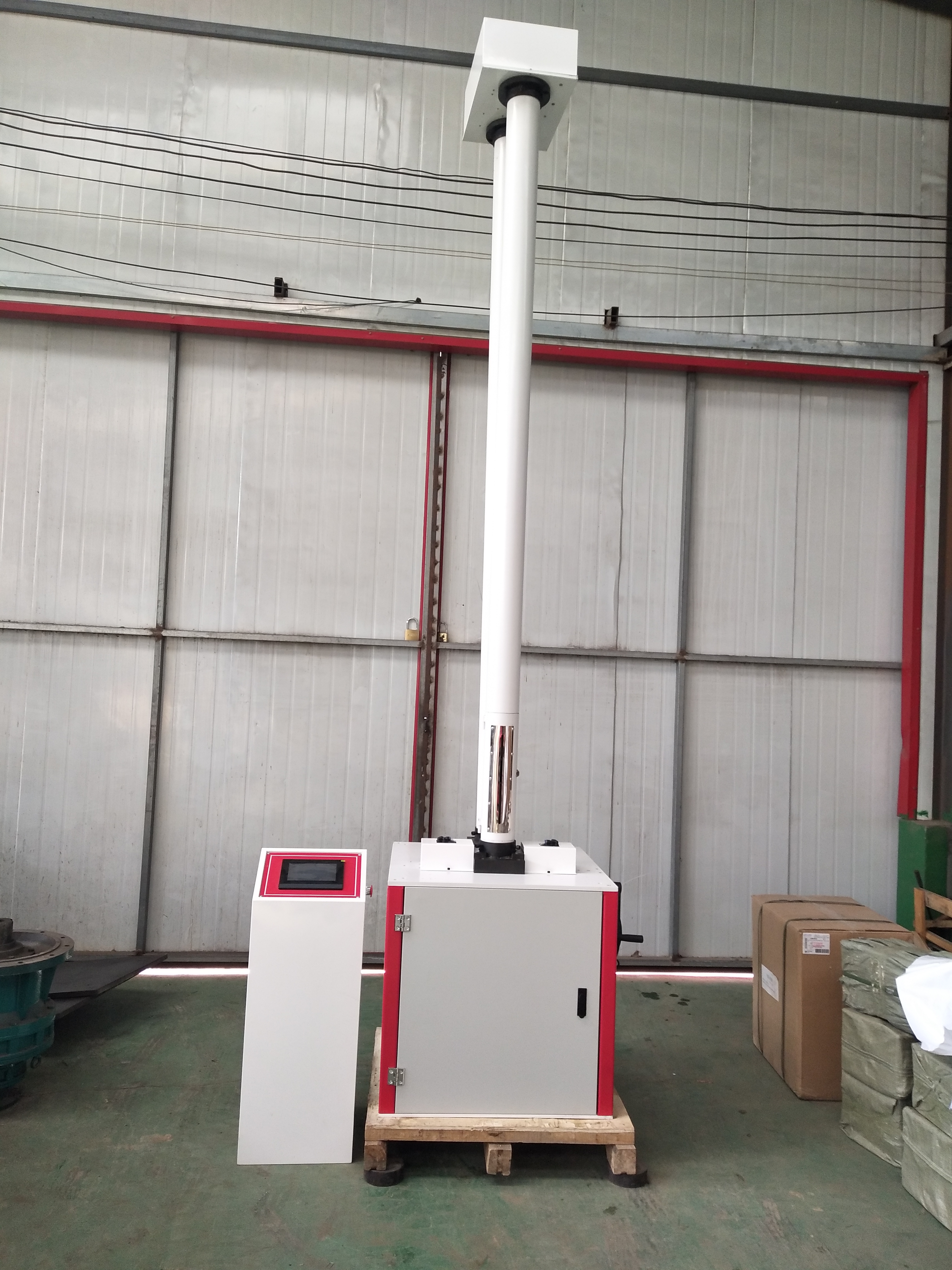

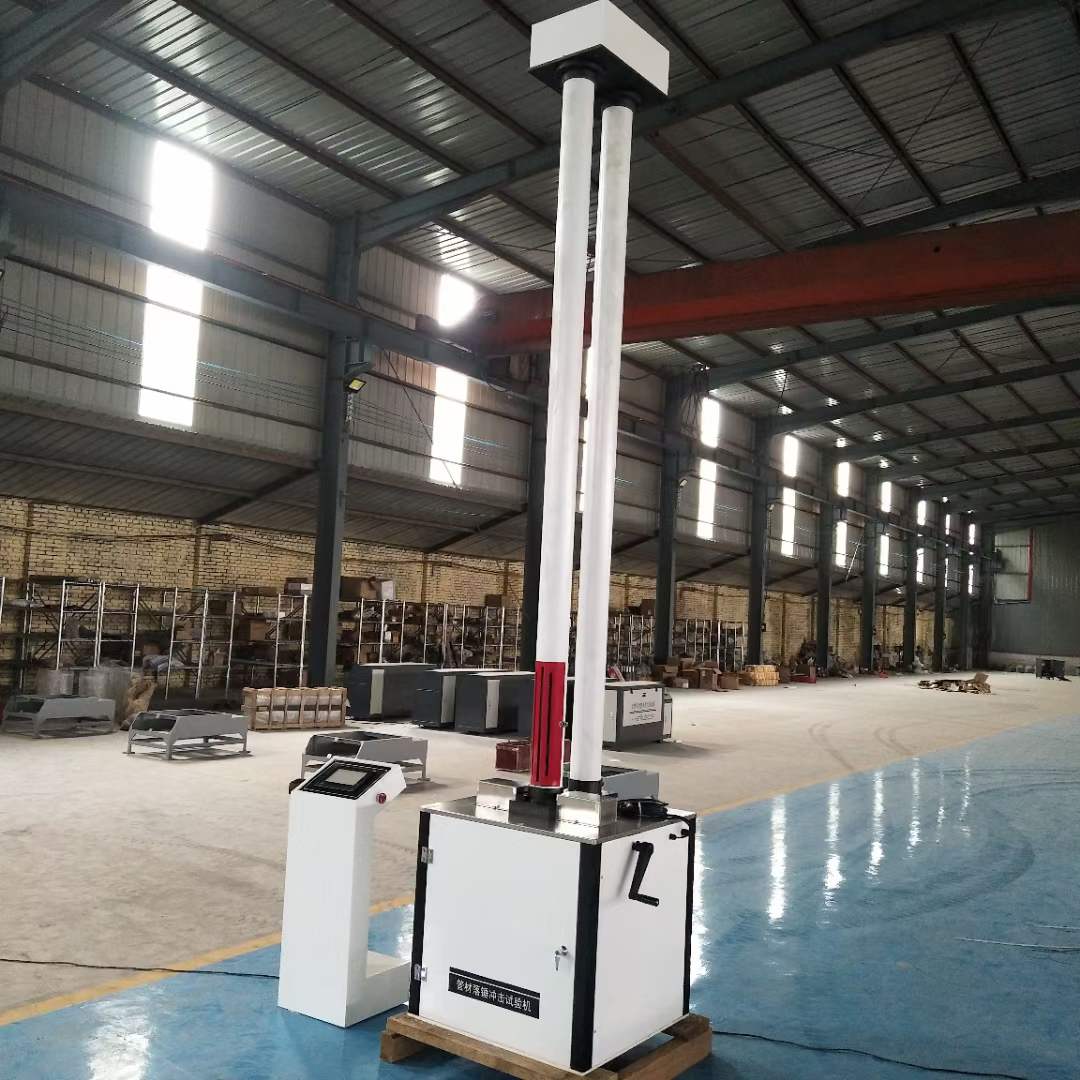

HT-630M 630M Falling Mass Impact Testing Machine,Pipe Drop Hammer Plastic Impact Testing Equipment, Pipe Impact Testing Instrument
Function:
It is used for the plastic pipe, board and goods to do the impact test , to praise the materials resistant outside force impact performance. The machine controlling parts adopt the numerical control technique. It can number preset and display the impact height, automatic return to zero, rising hammer, dropping hammer, impact and can effectively prevent the twice impacting. It adopts the distyle structure, the structure is compact, energy lost is small, and testing speed is quick.
Standards:
ISO3127 BS EN1411 BS EN744
Features:
1. Easy to operate，
Touch screen operation display
2. Impact height: 0-2000mm
3. High quality
4. Good after service
5. Falling hammer mass: 0.25-16kg
Technical Parameters:
Impact height: 0-2000mm,±2mm
Overall dimensions: L750mm×W550mm×H3500 mm
Energy losses: 0.25%
Masses of strikers: 0.25-16kg, permissible tolerance shall be ±0.5%
Nose and masses of striker: depending on customers standards
Rising speed: 12m/min
Anti-rebound catching rate: 100%
Diameter of test specimen: 10mm-630mm
