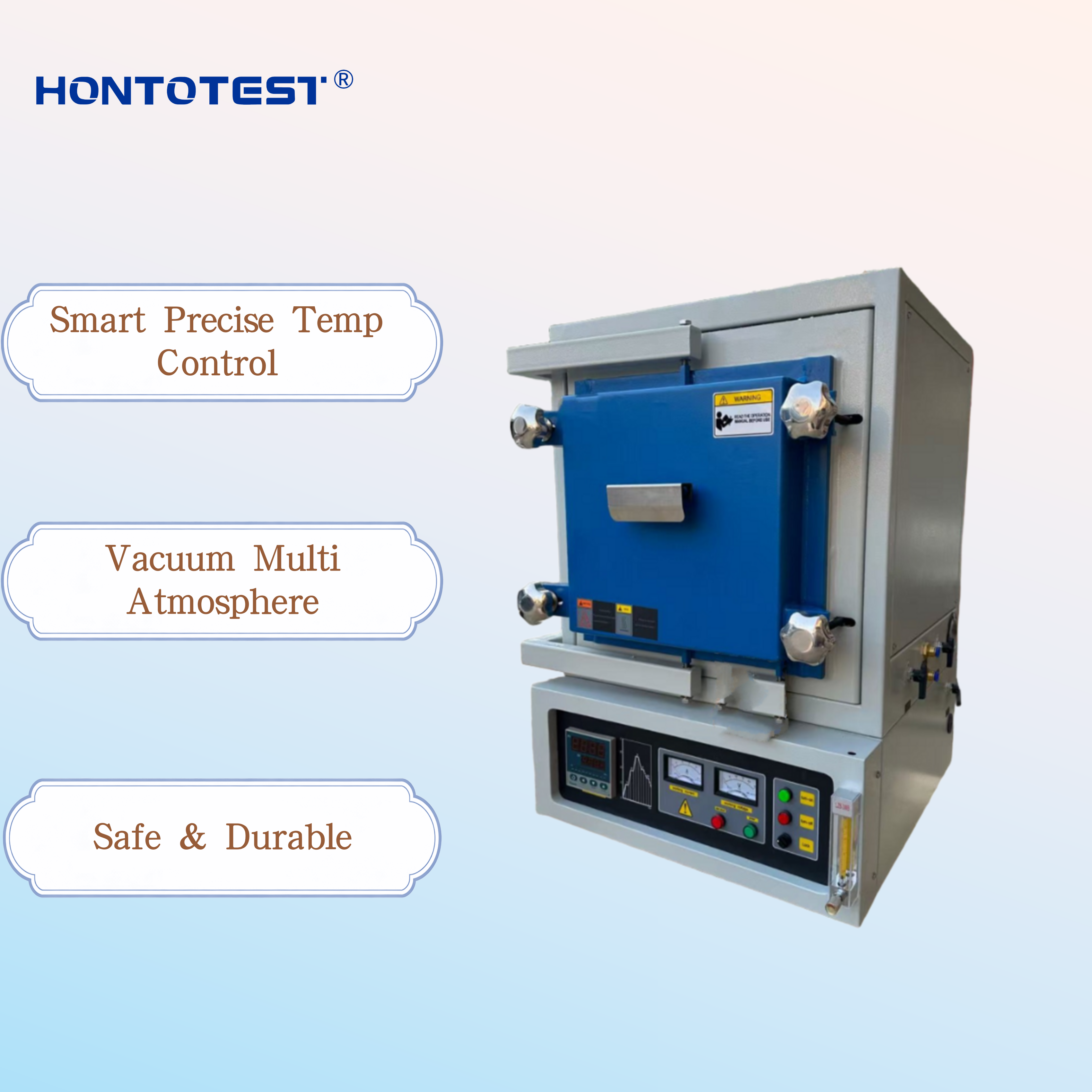

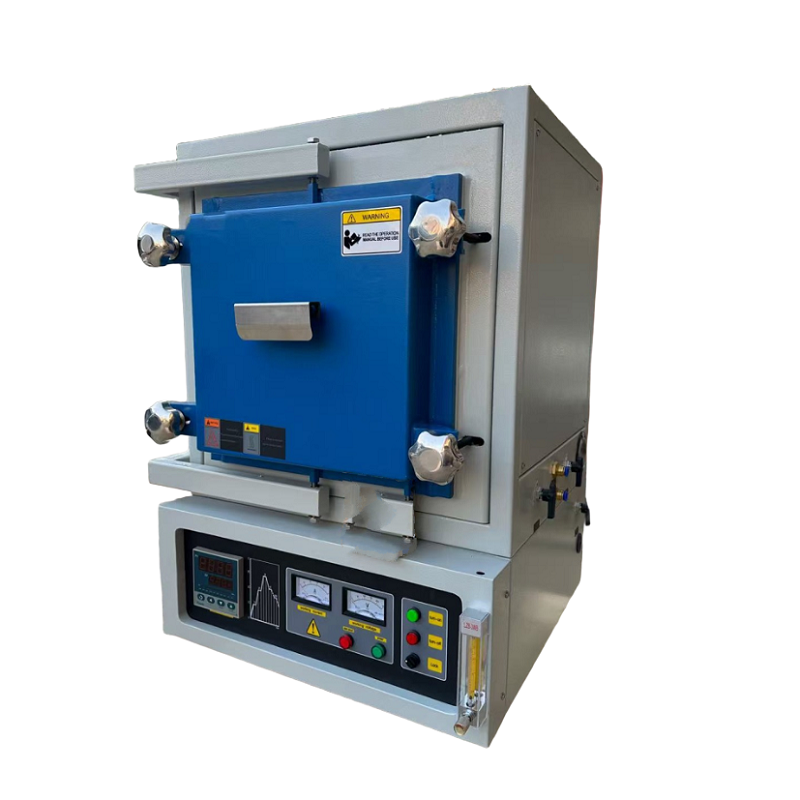

HT-VF-12 Vacuum Atmosphere Furnace High Temperature Three-sided Heating Vacuum Furnace,Lab Sintering Heat Treatment Furnace

Heating surface

Three-sided heating, side door

Temperature range

100-1200℃

Maximum temperature

＜1200℃

Effective size of furnace

300*200*200mm

Temperature control

30-stage intelligent temperature control, heating curve can be set arbitrarily, automatic heating, no need to be on duty

Shell design

The furnace shell adopts double-layer forced air cooling structure, and a cooling fan is installed at the bottom of the furnace to make the external temperature of the furnace shell close to room temperature when the furnace is working at the highest temperature.

Gas can pass

All inert gases, mixed gases, nitrogen, chlorine, oxygen, water vapor, etc.

Heating rate

≤0~ 30.C/ min

Other configurations

Crucible tongs (1 pair), high-temperature gloves (1 pair), instruction manual

Temperature control safety

The electric furnace adopts integrated circuit, module control, and dual-circuit protection (bias temperature protection, over-high temperature protection, burnout protection, over-current protection, and over-pressure protection)

Temperature control accuracy

±1℃

Vacuum negative pressure

-0.1MPA

Furnace material/furnace design

High-density alumina ceramic fiber, the furnace adopts a stepped assembly structure, which integrates the laws of mechanics, effectively ensuring that the furnace is evenly stressed during the heating process, ensuring that heat energy is not easily lost, and extending the service life of the furnace.

Heating element

resistance wire

Thermocouple

K-type

Warranty matters

One-year free warranty for electric furnaces (excluding heating elements)

Delivery time

15 working hours

Package

Wooden box packaging with foam filling inside and plastic film wrapping the furnace body

Power supply

220V50HZ/6KW
