DH-MV-01
Dahometer
Availability: | |
---|---|
Quantity: | |

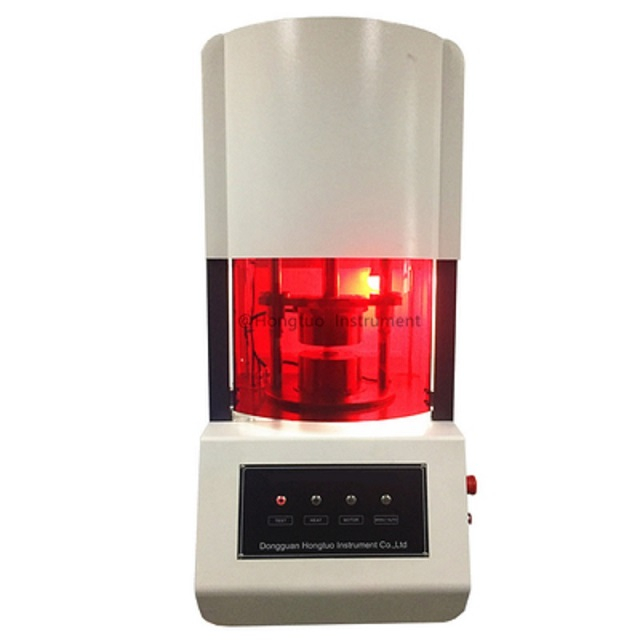

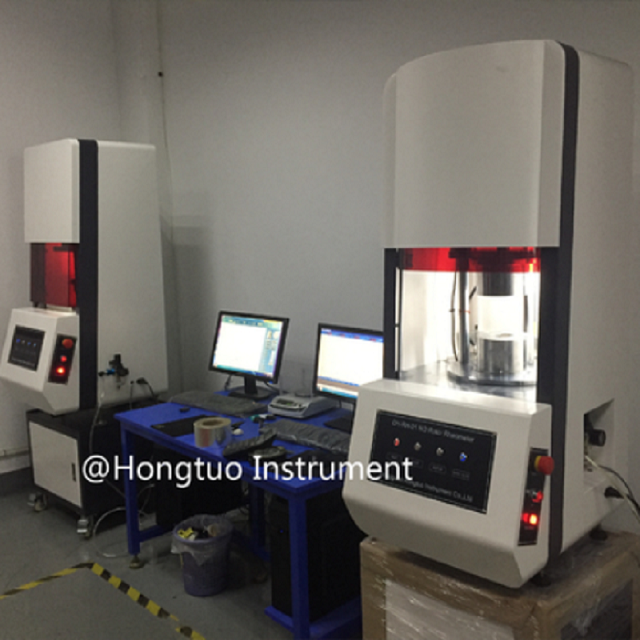

High Quality Lab Rubber Plastic Moving Die Rheometer
Introduction
The rubber no rotor rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.
Function of Software
A. Test standardization: Comply with GB/T1232 "determination of the Mooney viscosity of unvulcanized rubber", GB/T 1233 "determination of the Mooney viscometer method of early curing properties of rubber compounds " and ISO289, ISO667.,other standards.
B. Sample information: setting up the number of plastic materials ,such as "outer tire 5", "RBS6" and so on. If the user wants to add a title name to the printed drawing, any type of title text description can be set.
C. High-quality features: The excellent function of humanized design is to modify the measurement time in the test process. The rubber material is estimated to set a 20-minutes measurement time. When do the actual measurement with 11 minutes, it has been measured at t18 at 9 minutes or 10 minutes. If for the small rotor, the measurement has been completed. When measure out t35, If it is the large rotor, the measurement is completed also. In this case.it is no longer necessary to go on testing. Press “Send as” and the experiment is immediately stopped at 9 or 10 minutes above. The complete Mooney curve is drawn. calculates all the data and stores the data curve in the database. If at 20 minutes the t18 or t35 is not measured, the experiment will automatically move the points and minutes downwards (by manually changing the measurement time) until t18 or t35 is measured. If 200 minutes t18 or t35 is not measured, this measurement will be automatically ended. This feature undoubtedly greatly facilitates the user, saving precious time and rubber materials.

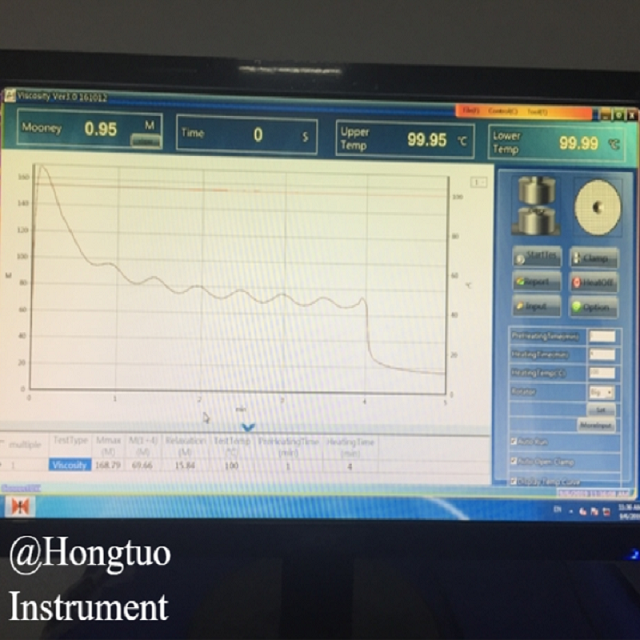

D. The graph curve scale is automatically optimized by Auto Scale. After the measurement is completed, the software will automatically adjust the Y scale according to the measurement value size 0-100 Mv 0-200 Mv, so that the curve is more beautiful, more curves are compared, completely different rubber materials, different Curve shape, different measurement time, can also be compared.
E. Database: The software presets 100 numbered databases. Each bank can store unlimited sets of measurement data. In the face of thousands of sets of data for months and years and decades, the user can easily put the data in different time periods into different databases. The purpose of setting the database address is here.
F. Automatic archiving at the end of the test. Automatically calculate the maximum Mooney, minimum Mooney, tH, tL, Mend, Tend, Δ15, △30, M1+4, M1+5, M1+6, M1+7, M1+ 8, M1+F and so on.
High Quality Lab Rubber Plastic Moving Die Rheometer
Introduction
The rubber no rotor rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.
Function of Software
A. Test standardization: Comply with GB/T1232 "determination of the Mooney viscosity of unvulcanized rubber", GB/T 1233 "determination of the Mooney viscometer method of early curing properties of rubber compounds " and ISO289, ISO667.,other standards.
B. Sample information: setting up the number of plastic materials ,such as "outer tire 5", "RBS6" and so on. If the user wants to add a title name to the printed drawing, any type of title text description can be set.
C. High-quality features: The excellent function of humanized design is to modify the measurement time in the test process. The rubber material is estimated to set a 20-minutes measurement time. When do the actual measurement with 11 minutes, it has been measured at t18 at 9 minutes or 10 minutes. If for the small rotor, the measurement has been completed. When measure out t35, If it is the large rotor, the measurement is completed also. In this case.it is no longer necessary to go on testing. Press “Send as” and the experiment is immediately stopped at 9 or 10 minutes above. The complete Mooney curve is drawn. calculates all the data and stores the data curve in the database. If at 20 minutes the t18 or t35 is not measured, the experiment will automatically move the points and minutes downwards (by manually changing the measurement time) until t18 or t35 is measured. If 200 minutes t18 or t35 is not measured, this measurement will be automatically ended. This feature undoubtedly greatly facilitates the user, saving precious time and rubber materials.
D. The graph curve scale is automatically optimized by Auto Scale. After the measurement is completed, the software will automatically adjust the Y scale according to the measurement value size 0-100 Mv 0-200 Mv, so that the curve is more beautiful, more curves are compared, completely different rubber materials, different Curve shape, different measurement time, can also be compared.
E. Database: The software presets 100 numbered databases. Each bank can store unlimited sets of measurement data. In the face of thousands of sets of data for months and years and decades, the user can easily put the data in different time periods into different databases. The purpose of setting the database address is here.
F. Automatic archiving at the end of the test. Automatically calculate the maximum Mooney, minimum Mooney, tH, tL, Mend, Tend, Δ15, △30, M1+4, M1+5, M1+6, M1+7, M1+ 8, M1+F and so on.
