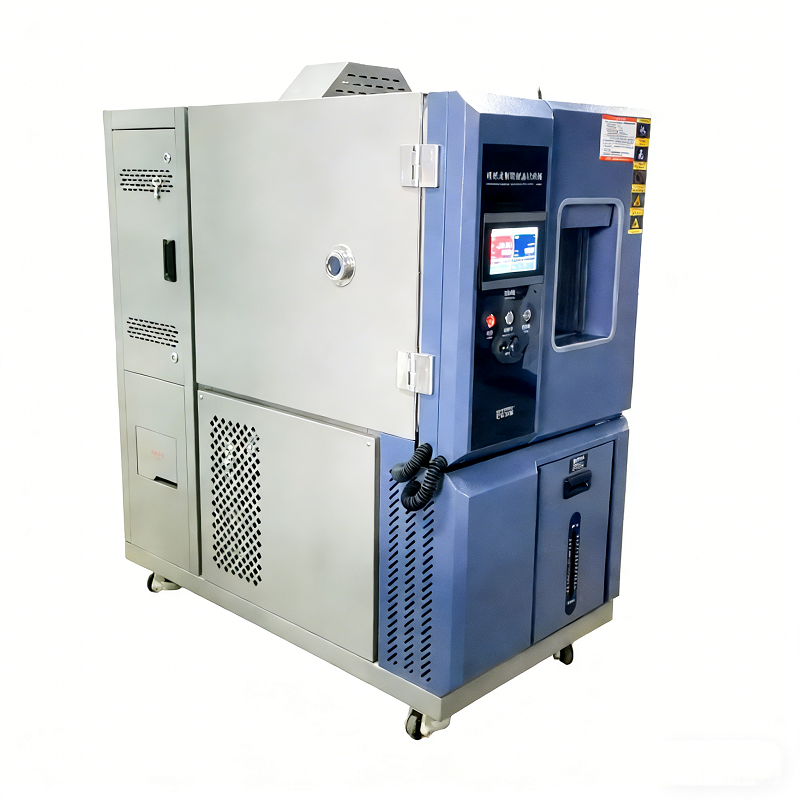

Large 800L Humidity Environmental Chamber Touch Screen Humidity Environmental Chamber
Temperature Humidity Environmental Test Equipment is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Main technical parameters
Model | DH-080 | DH-150 | DH-225 | DH-408 | DH-800 | DH-1000 | |||||||||||||||||||||
Interior dimensions (WxHxD)cm | 40X50X40 | 50X60X50 | 50X75X60 | 60X85X80 | 100X100X80 | 100X100X100 | |||||||||||||||||||||
Exterior dimenstions (WxHxD)cm | 97X136X97 | 107X146X107 | 107X161X117 | 117X171X127 | 155X185X130 | 155X185X147 | |||||||||||||||||||||
Internal volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 | |||||||||||||||||||||
Temp.humid range | 0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH | ||||||||||||||||||||||||||
Performance | Constancy | ±0.2°C;±2.5%RH | |||||||||||||||||||||||||
Uniformity | ±2°C;±3.0%RH | ||||||||||||||||||||||||||
Heating up time | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | |||||||||||||||
25min | 35min | 30min | 40min | 30min | 40min | 30min | 40min | 35min | 45min | 35min | 45min | ||||||||||||||||
Pull up time | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | |||
30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | ||||
Power(k.w) | 4.5 | 5 | 5.5 | 6.5 | 5 | 5.5 | 6 | 7.5 | 5.5 | 6 | 6.5 | 8.5 | 6 | 6.5 | 7 | 9.5 | 6.5 | 7 | 7.5 | 10.5 | 7 | 7.5 | 8 | 11.5 | |||
Weight(kg) | 200 | 250 | 300 | 400 | 600 | 700 | |||||||||||||||||||||
Material | Interior material | Stainless steel plate(sus304) | |||||||||||||||||||||||||
Exterior material | Stainless steel plate(sus304) | ||||||||||||||||||||||||||
Insulation material | Rigid polyauethane foam and glass wool | ||||||||||||||||||||||||||
System | The wind circulation | Centrifugal fan + wide-band forced air circulation (up output and bottom input) | |||||||||||||||||||||||||
Refrigerating mode | Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor) | ||||||||||||||||||||||||||
Refrigerator | R404A R23 U.S.A HONEYWELL | ||||||||||||||||||||||||||
Heater | Iron-chrome wire heater | ||||||||||||||||||||||||||
Humidifier | Stainless steel sheathed heater | ||||||||||||||||||||||||||
Water supply method | Water pump out system | ||||||||||||||||||||||||||
Accessories | Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp, | ||||||||||||||||||||||||||
Safety device | No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices | ||||||||||||||||||||||||||
Power | 1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ | ||||||||||||||||||||||||||
Shipping & Packaging
Company Information:
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
