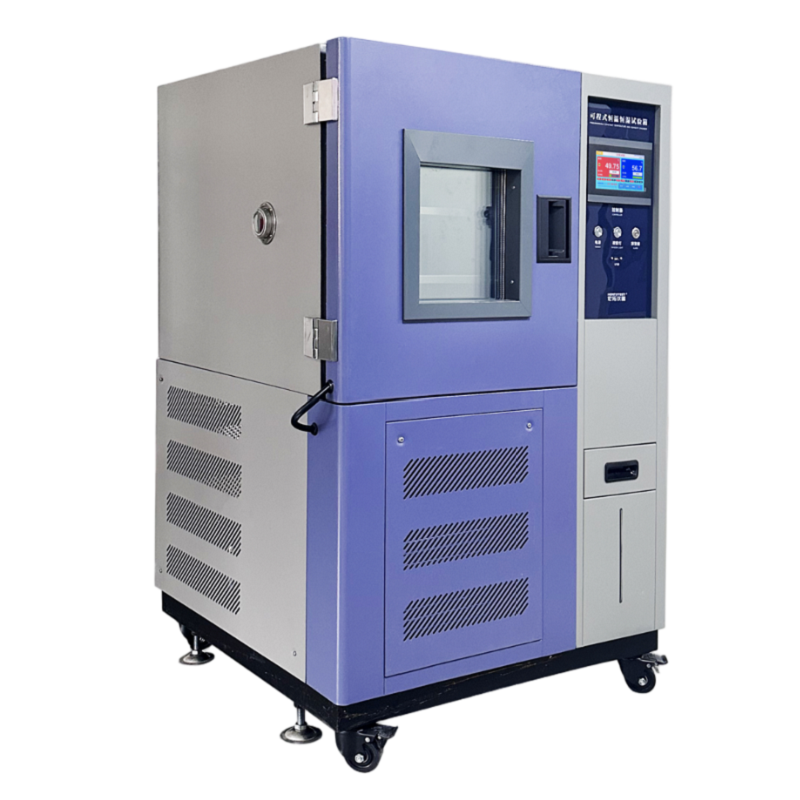

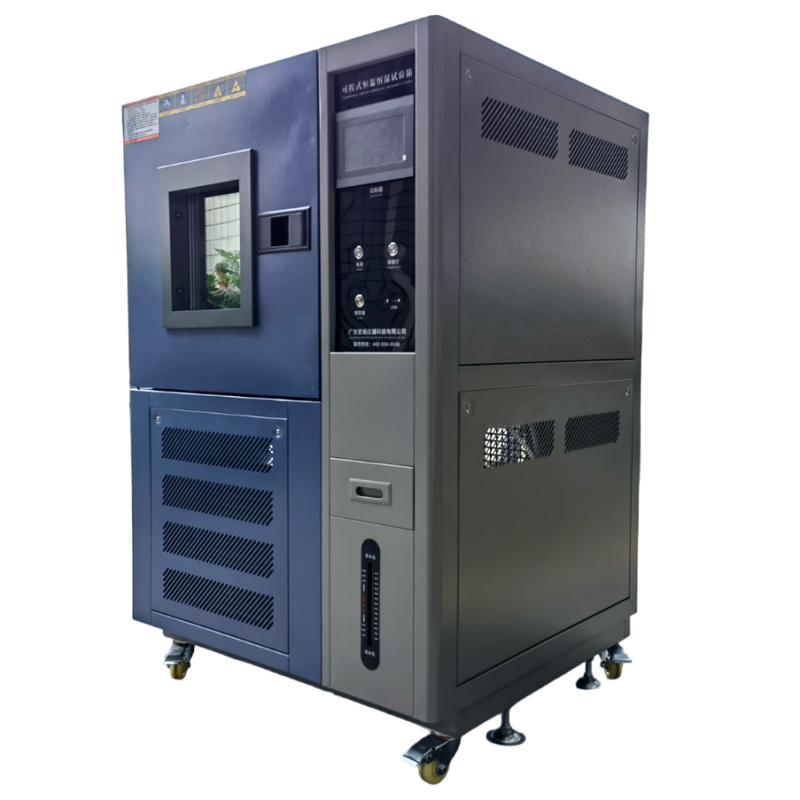

New Test Climate Chamber With Humidity Control Constant Temperature And Humidity Chamber
Product description：
Cabinet Climate Control Environmental Chambers can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Main technical parameters:
Model | DH-080 | DH-150 | DH-225 | DH-408 | DH-800 | DH-1000 | ||||||||||||||||||||
Interior dimensions (WxHxD)cm | 40X50X40 | 50X60X50 | 50X75X60 | 60X85X80 | 100X100X80 | 100X100X100 | ||||||||||||||||||||
Exterior dimenstions (WxHxD)cm | 97X136X97 | 107X146X107 | 107X161X117 | 117X171X127 | 155X185X130 | 155X185X147 | ||||||||||||||||||||
Internal volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 | ||||||||||||||||||||
Temp.humid range | 0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH | |||||||||||||||||||||||||
Performance | Constancy | ±0.2°C;±2.5%RH | ||||||||||||||||||||||||
Uniformity | ±2°C;±3.0%RH | |||||||||||||||||||||||||
Heating up time | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | 100°C | 150°C | ||||||||||||||
25min | 35min | 30min | 40min | 30min | 40min | 30min | 40min | 35min | 45min | 35min | 45min | |||||||||||||||
Pull up time | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | 0 | -20 | -40 | -70 | ||
30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | 30 | 45 | 65 | 100 | |||
Power(k.w) | 4.5 | 5 | 5.5 | 6.5 | 5 | 5.5 | 6 | 7.5 | 5.5 | 6 | 6.5 | 8.5 | 6 | 6.5 | 7 | 9.5 | 6.5 | 7 | 7.5 | 10.5 | 7 | 7.5 | 8 | 11.5 | ||
Weight(kg) | 200 | 250 | 300 | 400 | 600 | 700 | ||||||||||||||||||||
Material | Interior material | Stainless steel plate(sus304) | ||||||||||||||||||||||||
Exterior material | Stainless steel plate(sus304) | |||||||||||||||||||||||||
Insulation material | Rigid polyauethane foam and glass wool | |||||||||||||||||||||||||
System | The wind circulation | Centrifugal fan + wide-band forced air circulation (up output and bottom input) | ||||||||||||||||||||||||
Refrigerating mode | Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor) | |||||||||||||||||||||||||
Refrigerator | R404A R23 U.S.A HONEYWELL | |||||||||||||||||||||||||
Heater | Iron-chrome wire heater | |||||||||||||||||||||||||
Humidifier | Stainless steel sheathed heater | |||||||||||||||||||||||||
Water supply method | Water pump out system | |||||||||||||||||||||||||
Accessories | Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp, | |||||||||||||||||||||||||
Safety device | No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices | |||||||||||||||||||||||||
Power | 1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ | |||||||||||||||||||||||||
