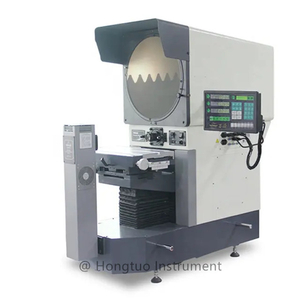

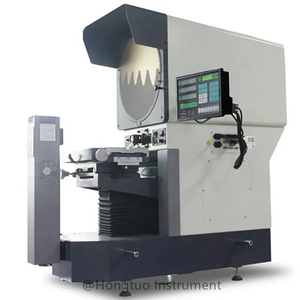

CPJ-6020V Floor Type Profile Projector , High Efficiency Projector Measuring Instrument Easy to Operate
Product Brief:
CPJ-6020V is a high precision and high efficiency Floor Type Profile Projector. With the projector screen of 600mm, and object view of 120mm at maximum, it can support the contour and coordinate measurements of large workpieces effectively. The machines are widely used in the field of machinery, auto parts, and light industry as well.
Features:
1. Clear imaging and large screen
2. Easy to operate
3. Resolution of linear scale: 0.5um
4. Powerful Digital Readout to support easy and accurate measurement
5. Reliable and cost-effective
6. Precise and accurate
7. Low maintenance cost
8. Optional Proprietary software
Specifications:
Model | CPJ-6020V |
X-axis Travel (mm) | 200 |
Y-axis Travel (mm) | 100 |
Metal table size (mm) | 404×265 |
Glass table size (mm) | 270×170 |
Resolution (μm) | 0.5 |
Indication error (mm) | 2.5+L/75 (L is the length of the measured object. Unit: mm) |
Z-axis Travel (mm) | 50 (focusing) |
Weight (kg) | 360 |
Dimension (mm) | 1200×1140×1940 |
Projection screen | Size (mm) | ∅615 worktable range>φ600((crosshairs) |
Rotary range | 0~360° |
Resolution | 1' or 0.01° |
Lens | Magnification | 5× (Optional) | 10× (Standard) | 20× (Optional) | 50× (Optional) | 100× (Optional) |
Field of view (mm) | ∅120 | ∅60 | ∅30 | ∅12 | ∅6 |
Working distance (mm) | 242.8 | 143.2 | 85.5 | 92 | 48.5 |
Max. measuring height | 50 | 50 | 50 | 50 | 48 |
Power supply: AC 100-240V 50/60Hz. Total power: 650W |
